Summary of Contents for PSC Falcon 510

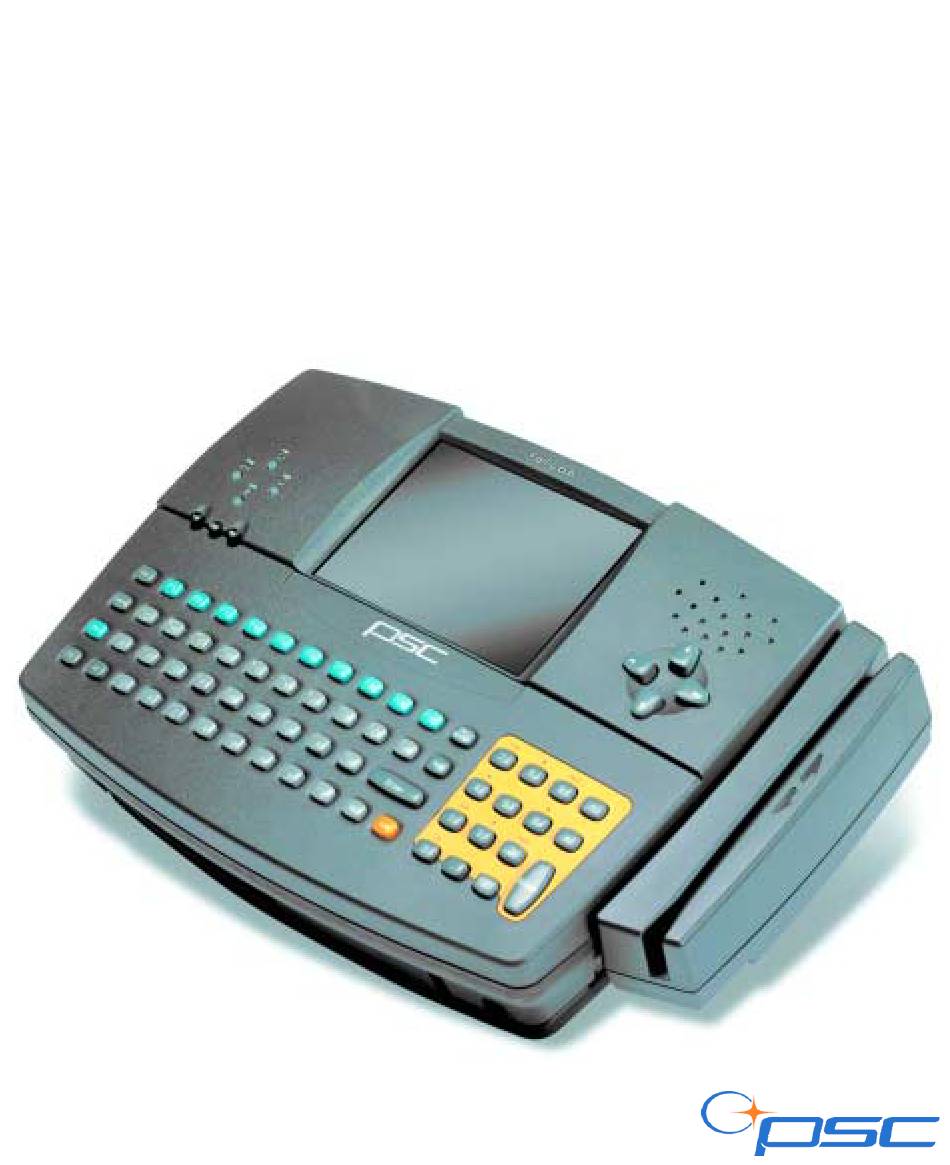

  • Page 1 Falcon ™ DOS Fixed Station Data Terminal Installation Guide...
  • Page 3 Falcon ™ DOS Fixed Station Terminal NSTALLATION UIDE...
  • Page 4 Copyright Act of 1976. Falcon™ is a trademark of PSC Incorporated. ® Datalight is a registered trademark of Datalight, Inc., and ROM-DOS™...
  • Page 5: Table Of Contents

    Installation Guide ONTENTS Installation — Connector Board........3 Connector Board Layout ......... 3 Connector Board Components........ 3 Securing Connector Board Cables ......7 Mounting Installation..........8 The Desk Mount Accessory........8 The Wall Mount Option ........12...
  • Page 7: Installation - Connector Board

    Five screws hold the back plate in place; three on top and two at the bottom of the Falcon. Connector Board Components Power Supply The Falcon 510 can be powered by either of these two external power sources: 7.5 Volt Power Adapter Attach the round plug of the adapter to the power-input jack located in the upper-left corner of the connector board.
  • Page 8 PC card. Generic Input/Outputs The connector board on the Falcon 510 has up to 8 voltage sense inputs and 8 output relays. These terminal connection strips are located along the top and bottom of the panel. Both input and output terminals are numbered starting with 1 and are labeled as follows: <...
  • Page 9 Installation — Connector Board Figure 2 Connector Board Layout IN 5 IN 6 IN 7 IN 8 COM 2 Out 6 Out 5 Out 7 Out 8 Reset Mechanism Power Supply Modem Connector COM 1 Laser or Bar Code Network Connector Out 2 Out 4...
  • Page 10 Common Terminal M M M M indicates the Normally Closed terminal External Speaker An external speaker can be attached to the Falcon 510. This will improve audio quality in extremely loud environments. The speaker’s Ω impedance is min 8 1 watt speaker.
  • Page 11: Securing Connector Board Cables

    Installation — Connector Board Securing Connector Board Cables Secure the cables to the connector board by following these steps: Remove the cable bar screws and the cable bars. Attach each cable to the connector board and loop the cable over its adjacent post.
  • Page 12: Mounting Installation

    Installation Guide Mounting Installation The Falcon 510 can be mounted either on a desk or on the wall. The Desk Mount Accessory Parts List: Custom Plate RAM-101U Mounting System 10-24 x 3/4" Screws 10-24 SS Nylon Nuts 10-24 x 1-1/4" Screws # 10 SS Lock Washers <...
  • Page 13 Mounting Installation Figure 4 Attach the Ram ball joint to the Custom Plate Locking Mechanism " Screws Ram-ball Nuts Attach the Ram ball joint to the Custom Plate. Refer to Figure 4 above for a detailed drawing. M M M M Loosen the locking mechanism and remove the Ram-ball that will be attached to the Custom Plate.
  • Page 14 M M M M Align the Custom Plate to the screw posts on the back of the Falcon 510 (four on one side, three on the opposite side of the Falcon 510). M M M M Use the seven (7) 1 –1/4"...
  • Page 15 Mounting Installation Figure 6 Reattach the Ram ball joint to the locking mechanism Reattach the Custom Plate’s Ram ball joint to the Desk Mount’s locking mechanism. Refer to Figure 6 above for a detailed drawing. Falcon DOS Fixed Station Terminal < 11 >...
  • Page 16: The Wall Mount Option

    Installation Guide The Wall Mount Option Parts List 10-24, 1/4" Screw 10-24, 3/8" Screws Lock Bracket A Lock Bracket B Wall Bracket Hinge Block Catch Block < 12 > Falcon DOS Fixed Station Terminal...
  • Page 17 Mounting Installation Figure 7 Attach Hinge and Catch Blocks Catch Block " Screws Hinge Block Attach Hinge and Catch Blocks. Refer to Figure above for a detailed drawing. M M M M Place the Catch Block (3 screws) and the Hinge Block (4 screws) in their settings.
  • Page 18 Installation Guide Figure 8 Attach Lock Bracket A " Screws Lock Bracket A Attach Lock Bracket A. Refer to Figure w above for a detailed drawing. M M M M Place the Lock Bracket A on top of the Catch Block. M M M M Secure the Lock Bracket A with two 3/8"...
  • Page 19 Mounting Installation Figure 9 Attach Lock Bracket B Smooth Side of Wall Bracket " Screw Lock Bracket B Attach Lock Bracket B. Refer to Figure 9 above for a detailed drawing. M M M M Place the Lock Bracket B in its setting on smooth side of Wall Bracket.
  • Page 20 Figure 10 Falcon 510 Wall Bracket and Hinge Settings Hinge Setting Hinge Setting Attach the Wall Bracket to the Falcon 510. Figure 10 above and Figure 11 on page 17 show the locations of the referenced parts and positions. M M M M Insert the Hinge Block pins inside the Wall Bracket’s hinge...
  • Page 21 Mounting Installation Figure 11 Attach the Falcon 510 to Wall Bracket Catch Lock Setting Falcon DOS Fixed Station Terminal < 17 >...
  • Page 22 Lock the Falcon 510 onto the Wall Bracket by pushing the unit down until it is flush with the top of the Wall Bracket. To unlock the Falcon 510 from the Wall Bracket, push the unit up and out of its lock setting. The Falcon 510 will swing away from the Wall Bracket..
  • Page 23 8–11 battery backup EXT+ label 3 cable securing catch block 12, 13, 14, latches Falcon 510 COM1 4 attaching to wall bracket COM2 4 removing from wall bracket COM3 6 Falcon Configuration utility 6 common terminal 6 IODIAG...
  • Page 24 3 lock brackets 14–15 locking mechanism 9 normally closed terminal locking the Falcon 510 on the wall 17 normally open terminal PC card 4 Magnetic Stripe Port phone connector 6 see Barcode and Magnetic Stripe Ports...
  • Page 25 RAM ball joint verification attaching to the Custom Plate of connections RS-232 signals 4 voltage sense inputs 6 DE-9 connector location monitor status number securing cables 7 posts wall block 15 serial ports wall bracket 12, 16, RS-232 signals Speaker, external 6 catch lock setting wall mount 12–17 determining volume...
