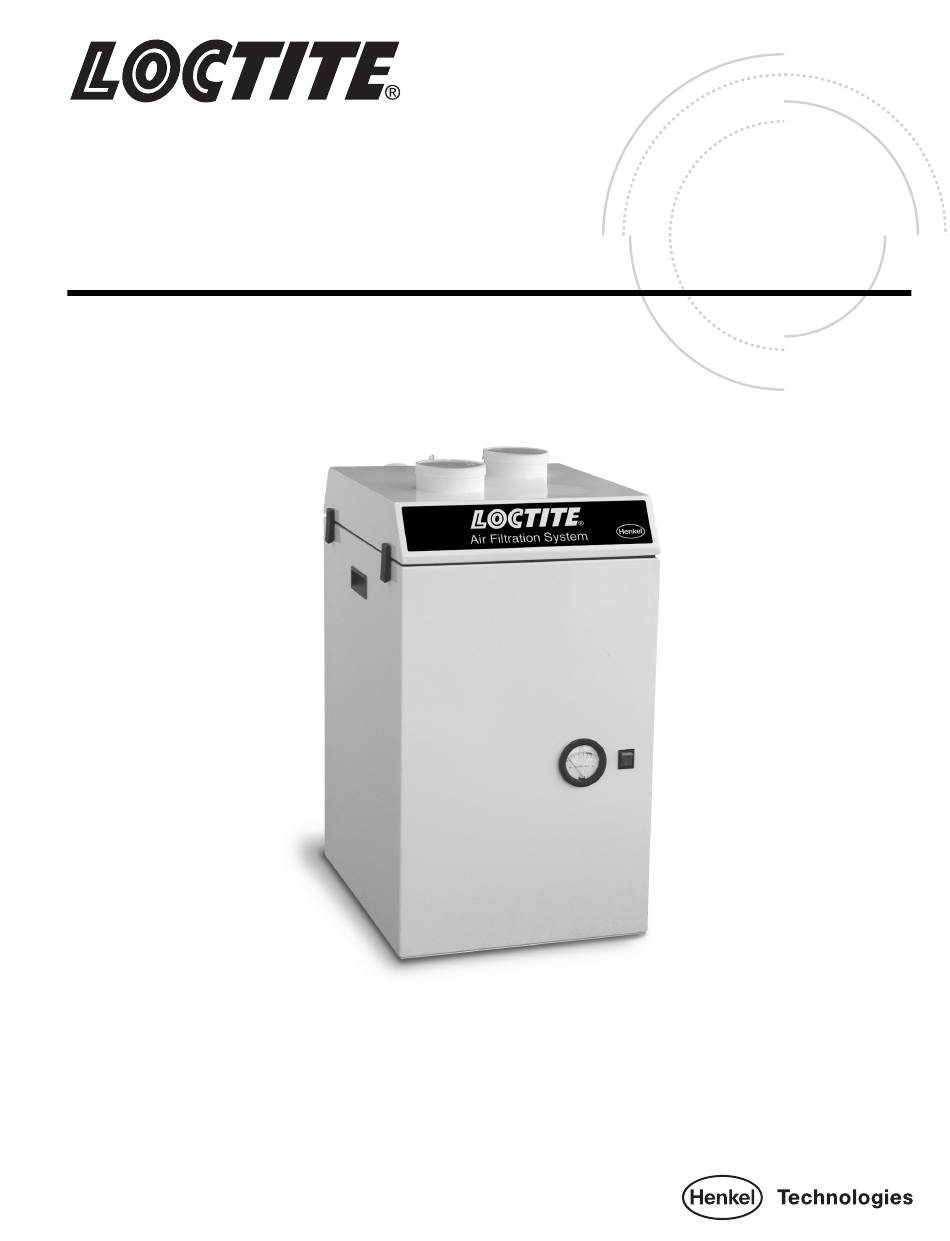

- Page 1 EQUIPMENT Operation Manual ® Loctite Air Filtration System Part Number 98276...
-
Page 2: Table Of Contents
Contents Page No. 1 PLEASE OBSERVE THE FOLLOWING........1-2 1.1 EMPHASIZED SECTIONS . -
Page 3: Please Observe The Following
® and sealants. Observe the manufacturer’s instructions as stated in the Material Safety Data Sheet (MSDS). While under warranty, the Unit may be repaired only by an authorized Loctite service representative. 1.3 Unpacking and Inspection Carefully unpack the Loctite ®... -
Page 4: Items Supplied
1. Please Observe the Following (continued) 1.4 Items supplied Air Filtration System Prefilter Carbon Filter - 20 lbs., with 1 carbon tray mat Afterfilter Operating Manual 1.5 Features • Unit on/off foot switch • Explosion-proof motor • Thermal overload protection •... -
Page 5: Theory Of Operation
Afterfilter Mat Filter Monitor Power Switch 2.2 Theory of Operations The Loctite ® Air Filtration System removes airborne contaminate by extracting air close to the source of particulate and vapors. The air is collected by a funnel-shaped nozzle or hood and routed, through hose or duct, to the filter unit. -
Page 6: Thermal Overload Protection
2. Description (continued) Gas Phase Filter Monitoring Loctite recommends two different ways for maintaining and monitoring gas phase filters, depending on the application and purpose of the gas phase filter: A) For the removal of odors as a nuisance only and for gases not exceeding the TEL-values... -
Page 7: Technical Data
• External on/off foot switch: Connect the series plug, which is attached to the power cord coming from the foot switch, to wall outlet. Plug the filter systems power cord (3-prong plug) into the receptacle of the series plug. • The Loctite ® Air Filtration System is ready to be turned on. -
Page 8: Maintenance And Cleaning
The bulk carbon contains a certain amount of dust which is created during transport and handling by the pellets rubbing against each other. Therefore, you will see dust escaping during the refilling process. Please make sure the operator wears the appropriate protective mask. The Loctite ®... -
Page 9: Troubleshooting
6. Troubleshooting Type of Malfunction Possible Causes Solutions Unit does not power when – Not plugged into proper power • For the 98276 the power switched “on.” receptacle. requirements are 230 Volt, 2 amp. Motor suddenly turns off. – The motor is overheating and the •... -
Page 10: Spare Parts And Accessories
7. Spare Parts and Accessories 7.1 Replacement Filters & Optional Items 987193 Filter, Pleated, 14'' x 18'' x 2'', 60%, 6/Set 987194 Filter, HEPA Mini-Pleat, 14'' x 18'' x 2'', 99.97% at 0.3 micron, 1 ea. (Optional) 987195 Filter, Carbon Refill Package, 20 lbs., with 1 filter mat 987349 Afterfilter Mat, White, 5/set 987350... -
Page 11: Warranty
8. Warranty Henkel Loctite expressly warrants that all products referred to in this Instruction Manual for 98276 Loctite ® Air Filtration System (hereafter called "Products"), shall be free from defects in materials and workmanship. Liability for Henkel Loctite shall be limited, at its option, to replacing those... - Page 12 Auburn Hills, Michigan 48326 São Paulo-Brazil www.loctite.com Loctite is a registered trademark of Henkel Loctite Corporation, U.S.A. © Copyright 2003. Henkel Loctite Corporation. All rights reserved. Data in this operation manual is subject to change without notice. P/N 987415 04/03...
