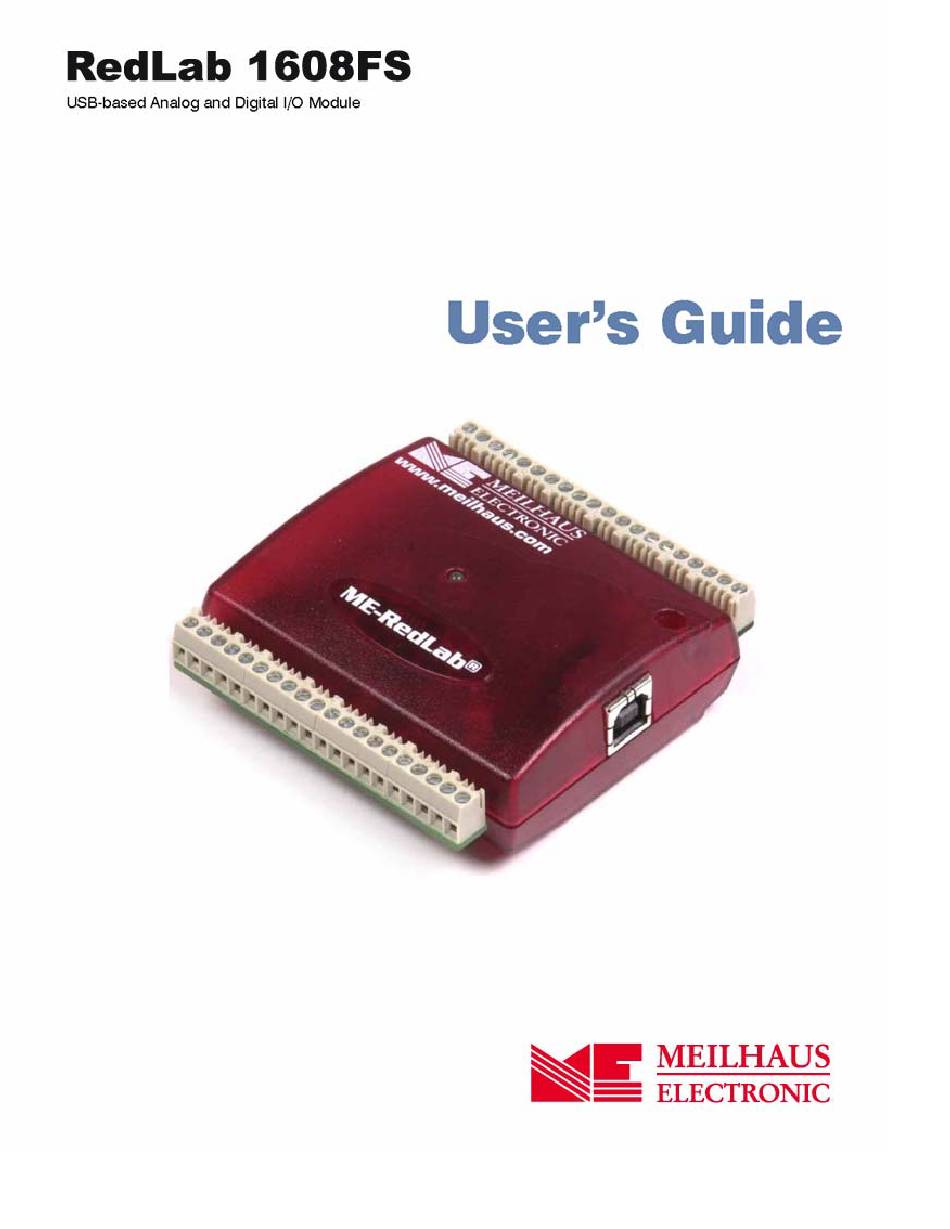

- Page 2 RedLab 1608FS USB-based Analog and Digital I/O Module User's Guide Document Revision 1.4 E, January, 2008 © Copyright 2008, Meilhaus Electronic™...
- Page 3 However, mistakes may not have been erased completely. For this reason, the firm Meilhaus Electronic GmbH feels obliged to point out that they cannot be take on neither any warranty (apart from the claims for warranty as agreed) nor legal responsibility or liability for consequences caused by incorrect instructions.
-
Page 4: Table Of Contents
Chapter 1 Introducing the RedLab 1608FS ......................7 RedLab 1608FS block diagram ..........................8 Software features ..............................8 Connecting a RedLab 1608FS to your computer is easy ..................9 Chapter 2 Installing the RedLab 1608FS ......................10 What comes with your RedLab 1608FS shipment?..................10 Hardware ..................................10 Additional documentation..............................10... - Page 5 RedLab 1608FS User's Guide Power................................27 General ................................28 Environmental ..............................28 Mechanical ...............................28 Main connector and pin out ..........................28...
-
Page 6: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the RedLab 1608FS so that you get the most out of its USB data acquisition features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -
Page 7: Introducing The Redlab 1608Fs
Eight digital IO lines are independently selectable as input or output. A 32-bit counter is capable of counting TTL pulses. The RedLab 1608FS is powered by the +5 volt USB supply from your computer. No external power is required. -
Page 8: Redlab 1608Fs Block Diagram
Software features For information on the features of InstaCal and the other software included with your RedLab 1608FS, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF on our... -
Page 9: Connecting A Redlab 1608Fs To Your Computer Is Easy
HID because it is a standard, and its performance delivers full control and maximizes data transfer rates for your RedLab 1608FS. No third-party device driver is required. The RedLab 1608FS is plug-and-play. There are no jumpers to position, DIP switches to set, or interrupts to configure. -
Page 10: Installing The Redlab 1608Fs
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available on our RedLab CD (root directory)). This booklet supplies a brief description of the software you received with your RedLab 1608FS and information regarding installation of that software. Please read this booklet completely before installing any software or hardware. -
Page 11: Unpacking The Redlab 1608Fs
To connect the RedLab 1608FS to your system, turn your computer on, and connect the USB cable to a USB port on your computer or to an external USB hub that is connected to your computer. The USB cable provides power and communication to the RedLab 1608FS. - Page 12 If the LED turns off If the LED is lit but then turns off, the computer has lost communication with the RedLab 1608FS. To restore communication, disconnect the USB cable from the computer, and then reconnect it. This should restore...
-
Page 13: Functional Details
Burst scan mode In burst scan mode, you can acquire data with the RedLab 1608FS using the full capacity of its 32 K sample FIFO. The acquired data is then read from the FIFO and transferred to a user buffer in your computer. You can initiate a single acquisition sequence of one, two, four, or eight channels by either a software command or an external hardware trigger. -
Page 14: External Components
V. No external power supply is required. The LED on the front of the RedLab 1608FS indicates the communication status. It uses up to 5 mA of current and cannot be disabled. The table below explains the function of the RedLab 1608FS LED. -
Page 15: Screw Terminal Wiring
Functional Details Screw terminal wiring The RedLab 1608FS has two rows of screw terminals—one row on the top edge of the housing, and one row on the bottom edge. Each row has 20 connections. Pin numbers are identified in Figure 4. -
Page 16: Main Connector And Pin Out
RedLab 1608FS User's Guide Functional Details Main connector and pin out Connector type Screw terminal Wire gauge range 16 AWG to 30 AWG Analog input terminals (CH0 IN - CH7 IN) You can connect up to eight analog input connections to the screw terminal containing pins 1 to 20 (... -
Page 17: Digital I/O Terminals (Dio0 To Dio7)
When you configure the digital bits for input, you can use the RedLab 1608FS digital I/O terminals to detect the state of any TTL-level input. Refer to the switch circuit shown in Figure 6 and the schematic shown in Figure 7. -
Page 18: Power Terminals
The RedLab 1608FS alone draws 150 mA of current from the USB +5 V supply. Once you start running applications with the RedLab 1608FS, each DIO bit can draw up to 2.5 mA. The maximum amount of +5 V current available for experimental use, over and above that required by the RedLab 1608FS, is the difference between the total current requirement of the RedLab 1608FS (based on the application), and the allowed current draw of the computer platform (500 mA for desktop computers and self-powered hubs). -
Page 19: Calibration Terminal
Functional Details Calibration terminal connection (pin 17) is an output you should use only to calibrate the RedLab 1608FS. Refer to the pinout diagram on page 3-16 for the location of this pin. Calibration of the RedLab 1608FS is software- controlled by InstaCal. - Page 20 The RedLab 1608FS offset error is measured at mid-scale. Ideally, a zero volt input should produce an output code of 32768. Any deviation from this is an offset error. Figure 9 shows the RedLab 1608FS transfer function with an offset error. The typical offset error specification for the RedLab 1608FS on the ±10 V range is ±1.66 mV.
- Page 21 Combining these two error sources in Figure 11, we have a plot of the error band of the RedLab 1608FS at ±full scale (±10 V). This plot is a graphical version of the typical accuracy specification of the product.
-
Page 22: Gain Queue
This feature creates a gain list which is written to local memory on the RedLab 1608FS. The gain list is made up of a channel number and range setting. An example of an eight-element list is shown in the table below. -
Page 23: Synchronizing Multiple Units
You set the function of the SYNC pin (pin 36) for pacer input or pacer output by using InstaCal. By default, the SYNC pin is set for pacer input. To synchronize a master RedLab 1608FS with a slave RedLab 1608FS and acquire data from 16 channels, follow the steps below: 1. -
Page 24: Specifications
Chapter 4 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog input section Table 1. Analog input specifications Parameter Conditions Specification A/D converter type 16-bit successive Approximation type Number of channels 8 single-ended Input configuration Individual A/D per channel Sampling method... -
Page 25: Digital Input/Output
0.40 0.28 Table 4 summarizes the noise performance for the RedLab 1608FS. Noise distribution is determined by gathering 50 K samples with inputs tied to ground at the user connector. Samples are gathered at the maximum specified sampling rate of 50 kS/s. -
Page 26: External Trigger
RedLab 1608FS User's Guide Specifications External trigger Table 6. External trigger specifications Parameter Conditions Specification Trigger source (Note 3) External digital TRIG_IN Trigger mode Software selectable Edge sensitive: user configurable for CMOS compatible rising or falling edge. Trigger latency 10 µs max Trigger pulse width 1µs min... -
Page 27: Counter Section
4.5 V min, 5.25 V max Connected to externally-powered root port hub (Note 7) Output current (Note 8) 350 mA max This is the total current requirement for the RedLab 1608FS which includes up to 10 mA for the status Note 6: LED. - Page 28 RedLab 1608FS User's Guide Specifications "Self-powered hub" refers to a USB hub with an external power supply. Self-powered hubs allow a Note 7: connected USB device to draw up to 500 mA. "Root port hubs" reside in the PC’s USB host Controller.
- Page 29 Meilhaus Electronic GmbH Fischerstrasse 2 D-82178 Puchheim, Germany Phone: +49 (0)89 89 01 66-0 Fax: +49 (0)89 89 01 66-77 E-Mail: sales@meilhaus.com http://www.meilhaus.com...
