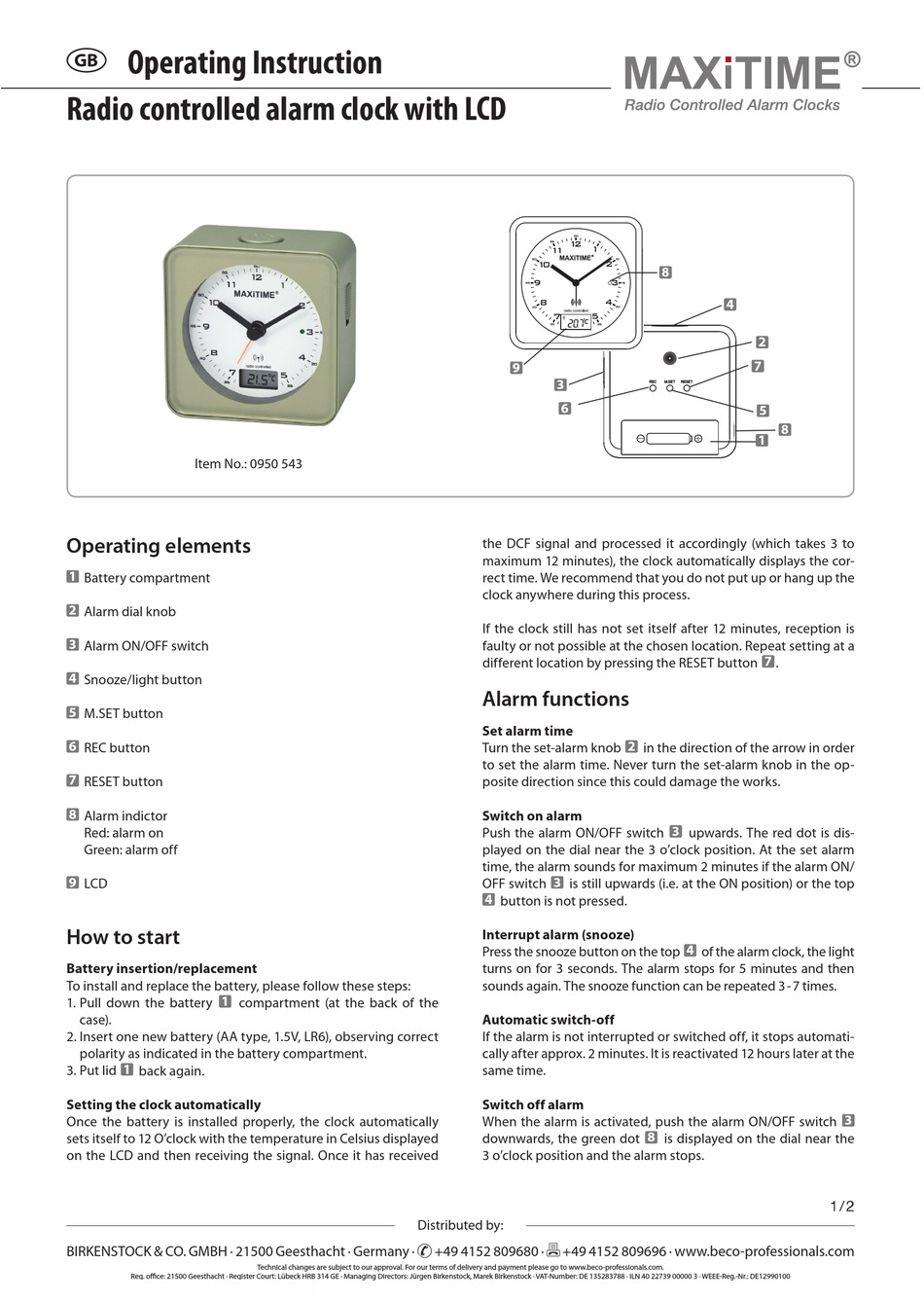

Operating Instruction
GB
Radio controlled alarm clock with LCD
Item no.: 0950 543
Operating elements
1
Battery compartment
2
Alarm dial knob
3
Alarm On/Off switch
4
Snooze/light button
5
M.SET button
6
REC button
7
RESET button
8
Alarm indictor
Red: alarm on
Green: alarm off
9
LCD
How to start
Battery insertion/replacement
To install and replace the battery, please follow these steps:
1
1. Pull down the battery
compartment (at the back of the
case).
2. Insert one new battery (AA type, 1.5V, LR6), observing correct
polarity as indicated in the battery compartment.
1
3. Put lid
back again.
Setting the clock automatically
Once the battery is installed properly, the clock automatically
sets itself to 12 O'clock with the temperature in Celsius displayed
on the LCD and then receiving the signal. Once it has received
BIRKEnSTOCK & CO. GMBH · 21500 Geesthacht · Germany ·
Reg. office: 21500 Geesthacht · Register Court: Lübeck HRB 314 GE · Managing Directors: Jürgen Birkenstock, Marek Birkenstock · VAT-number: DE 135283788 · ILn 40 22739 00000 3 · WEEE-Reg.-nr.: DE12990100
Distributed by:
k
Technical changes are subject to our approval. for our terms of delivery and payment please go to www.beco-professionals.com.
9
3
6
the DCf signal and processed it accordingly (which takes 3 to
maximum 12 minutes), the clock automatically displays the cor-
rect time. We recommend that you do not put up or hang up the
clock anywhere during this process.
If the clock still has not set itself after 12 minutes, reception is
faulty or not possible at the chosen location. Repeat setting at a
different location by pressing the RESET button
Alarm functions
Set alarm time
Turn the set-alarm knob
to set the alarm time. never turn the set-alarm knob in the op-
posite direction since this could damage the works.
Switch on alarm
Push the alarm On/Off switch
played on the dial near the 3 o'clock position. At the set alarm
time, the alarm sounds for maximum 2 minutes if the alarm On/
3
Off switch
is still upwards (i.e. at the On position) or the top
4
button is not pressed.
Interrupt alarm (snooze)
Press the snooze button on the top
turns on for 3 seconds. The alarm stops for 5 minutes and then
sounds again. The snooze function can be repeated 3 - 7 times.
Automatic switch-off
If the alarm is not interrupted or switched off, it stops automati-
cally after approx. 2 minutes. It is reactivated 12 hours later at the
same time.
Switch off alarm
When the alarm is activated, push the alarm On/Off switch
downwards, the green dot
3 o'clock position and the alarm stops.
+49 4152 809680 · +49 4152 809696 · www.beco-professionals.com
8
4
2
7
5
8
1
7
.
2
in the direction of the arrow in order
3
upwards. The red dot is dis-
4
of the alarm clock, the light
8
is displayed on the dial near the
3
1 / 2
Advertisement
Table of Contents
Summary of Contents for Maxitime 0950 543
- Page 1 Operating Instruction Radio controlled alarm clock with LCD Item no.: 0950 543 Operating elements the DCf signal and processed it accordingly (which takes 3 to maximum 12 minutes), the clock automatically displays the cor- Battery compartment rect time. We recommend that you do not put up or hang up the clock anywhere during this process. Alarm dial knob If the clock still has not set itself after 12 minutes, reception is Alarm On/Off switch faulty or not possible at the chosen location. Repeat setting at a different location by pressing the RESET button...
-
Page 2: Setting The Time
Operating Instruction Radio controlled alarm clock with LCD Illumination Receiving the radio control signal To be able to read the face of your alarm clock even when it is The radio-controlled clock will automatically receive the radio dark, briefly press the button on the top of the alarm clock. signal 12 times every day. It will take 3-12 minutes to receive the The illumination function is activated for 3 seconds. radio signal. Setting the time During force DCf reception by pressing the REC button for 3 seconds, the clock will go to 12 o’clock and start receiving the To set the time manually radio signal for 3 - 12 minutes. Once it has received the DCf sig- Press and hold the M.SET button for 3 seconds to set the time: nal and processed it accordingly, the clock automatically displays...
