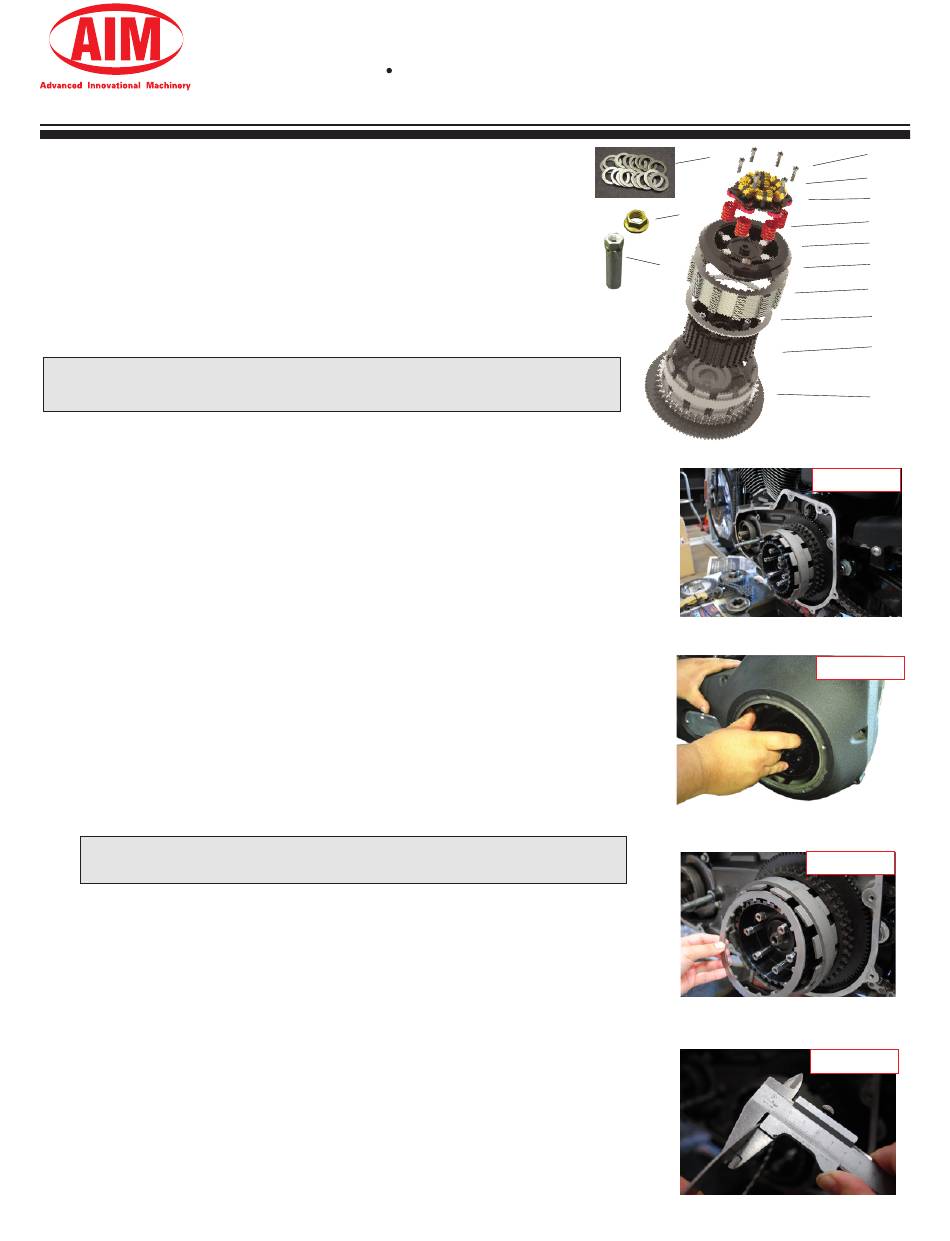

Installation Instruction 1/2
Read and become familiar with these installation instructions before start.
Contents:
① 5mm allen head bolt
② Small washer
③ Lock up head
④ Static spring
⑤ CF Pressure plate
⑥ Steel plate (1.5mm)
⑦ 10 Friction plates package
WARNING: To prevent accidental veihicle start-up, which could cause
serious injury, disconnect nagative(-) battery cable before proceeding.
1.
Submerge and soak all friction plates in HD petroleum based oil or
ATF type F, non-synthetic primary oil. The use of synthetics is not
recommended as they tend to cause slippage.
Remove clutch assembly. See Harley-Davidson service manual.
2.
See Picture. 1 and 2. Place the Clutch basket and the primary cover
3.
into position.
See Picture. 2. Rotate the clutch basket by hand to check the
4.
clearance between the clutch basket and the primary cover. If the
clutch basket hits the primary cover, you need to modify the primary
cover.
5.
Place drive components (primary chain, compensating sprocket
assembly and clutch basket into position.
6.
Clean and prime threads of the compensating sprocket bolt(or nut)
and the clutch hub main shaft nut. Apply Locktite (red) to them.
Note: Clutch hub mainshaft nut has left hand threads, so turn
counterclockwise to install.
7.
Tighten the compensating sprocket bolt and the clutch hub main shaft
nut. See Harley-Davidson service manual about torque.
8.
See Picture. 3 Install the 3mm steel plate⑧ on the clutch hub.
9.
Then, install a friction plate ⑦ and then a steel plate (1.5mm) ⑥ on
the clutch hub. Install ten remaining friction plates and nine remaining
steel plates in same manner, alternating between friction plates and
steel plates. Ending with friction plate on the top.
10.
See Picture. 4. Place the AIM 1.5 mm steel plate on the Top of the
clutch plates kit.
AIM Corp. PERFORMANCE PRODUCTS
Gen. 2 - CF2 Performance Clutch kit (Inner Kit)
⑧ Steel plate (3mm)
6
⑨ Clutch hub
6
⑩ Billet clutch basket (NA)
0
⑪ Spring shims (no
6
needed for black spring)
1
⑫ Clutch adjuster lock nut
8
⑬ Lock nut socket
7
Parts#:TA008-003
For '06 Dyna and '07 and later Big Twin
1
⑫
1
1
18
⑬
1
1
⑭
⑪
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
Picture.1
Picture.2
Picture.3
Picture.4
