Summary of Contents for Telstra Voice Extender

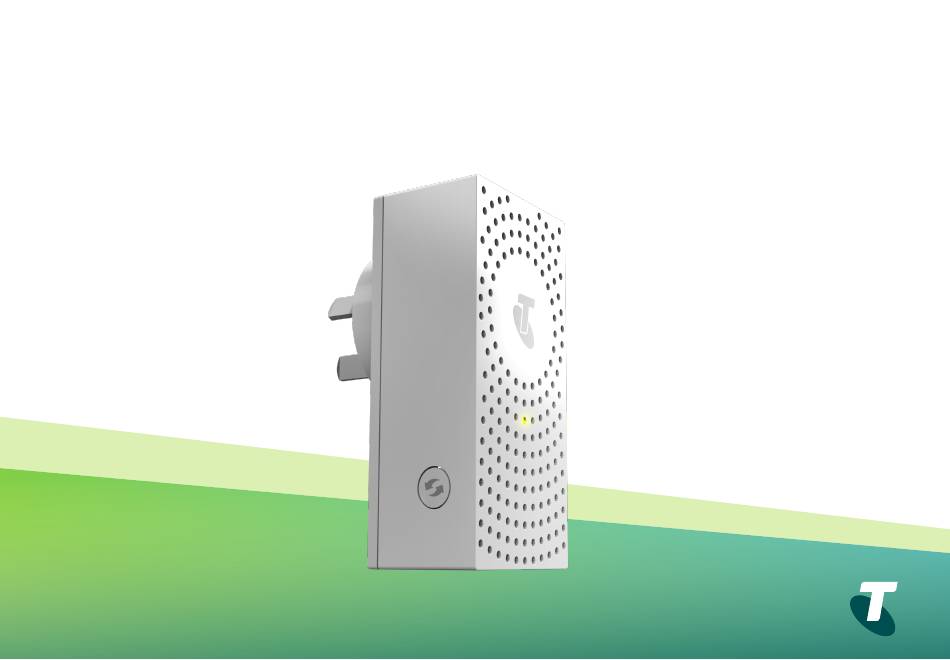

- Page 1 Getting to know your Telstra Voice Extender PAIR...
- Page 2 Finding your way around your Telstra Voice Extender LED Status Indicator One-touch Pair Button RJ11 Socket...
- Page 3 • Locate your telephone in a convenient location away from your Telstra modem. The only requirement is that it must be within DECT range of your Telstra modem. This is normally between 30 and 50 meters. To use your TVE you have to pair the device to your Telstra modem. Refer to page 4.
- Page 4 Pair the TVE with your Telstra modem Following these easy steps to pair your TVE to your Telstra modem: Plug the TVE into a conveniently located wall outlet within DECT range of your Telstra modem and press the button on the Telstra modem.
- Page 5 Connecting a telephone You can now plug in any standard corded or cordless phone into the RJ11 socket located on the bottom of the TVE. The TVE will provide the standard dial tone and call functionalities of a standard telephone socket. DECT...
- Page 6 De-register your TVE DECT To de-register your TVE from your Telstra modem you would need to access your user settings of the Telstra modem on your computer. Follow the instructions supplied with your modem to access the user settings. You can either connect to your modem via Ethernet or Wi-Fi and by typing the set-up URL supplied with your modem into your browser.
- Page 7 Understanding the LED indicator LED status indication: • Power on - LED always on • During registration - quick flash, 0.5s on and 0.5s off • Call in use - slow flash, 1s on and 1s off.
- Page 8 Not yet on NBN? If you are using your TVE with an ADSL connection (not NBN), you will need to connect your phone line to your modem via you ADSL filter. See diagram below. TELEPHONE WALL SOCKET 1. Plug your ADSL splitter into the telephone wall socket.
-
Page 9: Technical Specifications
Technical specifications • DECT GAP standard between the TVE and Telstra modem. • Build in SLIC for FXS port • DTMF tone dialing • Call progress indication, dial tone, ring back tone. • One key for registration • Narrow band audio •... - Page 10 Support...
