Summary of Contents for Presenza QL032

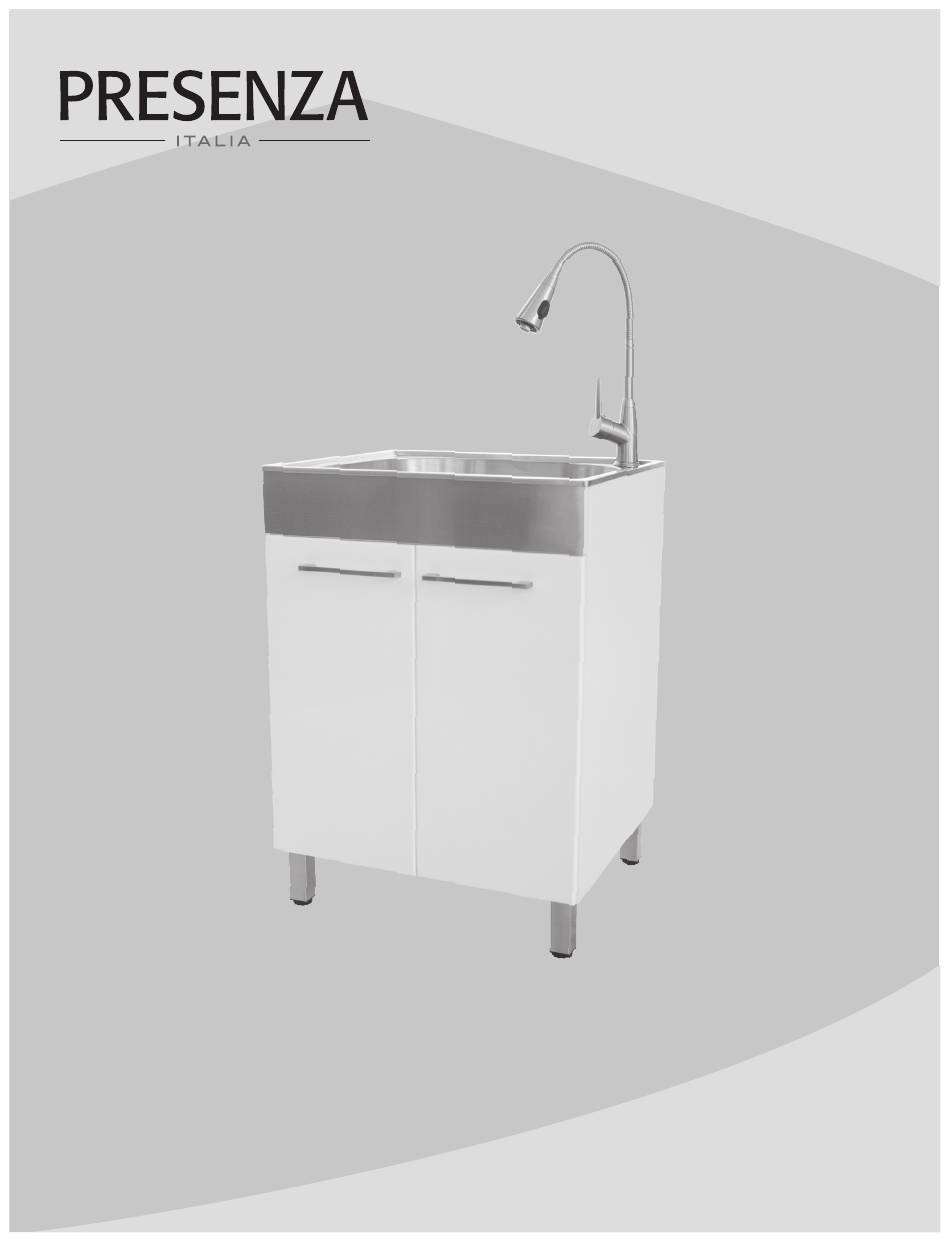

- Page 1 STAINLESS STEEL UTILITY SINK WITH FAUCET AND STORAGE CABINET INSTALLATION GUIDE AND USER MANUAL Model No. QL032...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Installing the Faucet . -
Page 3: Warranty
Warranty ONE YEAR LIMITED WARRANTY A thorough inspection must be made before installation and any damage must be promptly reported . We will not be liable for failures or damage that could have been discovered or avoided by proper inspection and testing prior to installation . Conglom Kitchen &... -
Page 4: Pre-Installation
Pre-Installation TOOLS/MATERIALS REQUIRED (NOT SUPPLIED) Adjustable Needle nose Phillips wrench pliers screwdriver Utility knife Pipe wrench Sealant Hacksaw Carpenter’s level Hex key Safety gloves Safety goggles PARTS REQUIRED (NOT SUPPLIED) Tail Pipe P-Trap Supply line... -
Page 5: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Cabinet Faucet Door Handles Leveling Legs Utility Sink Strainer Assembly Strainer Basket Handle Screws Leveling Leg Screws CONGLOMKB .COM Please contact 1-877-333-0098 for further assistance . -
Page 6: Installation
Installation INSTALLING THE LEVELING LEGS Carefully check the utility sink for damage and/or missing parts prior WARNING: to installation . If there is any damage or if you are missing parts, Always wear safety goggles and gloves during installation . do not proceed with the installation . -
Page 7: Installing The Handles
Installation (continued) INSTALLING THE HANDLES - Insert two handle screws (H) into the pre-drilled holes on the door . - Attach a door handle (C) and tighten the door handle screws (H) . - Repeat on the other door . ADJUSTING THE DOOR POSITION If the doors need to be repositioned, the hinges can be adjusted to ensure a precise fit with a cabinet. -
Page 8: Installing The Faucet
Installation (continued) INSTALLING THE FAUCET 1 . Carefully take out all the parts of the faucet assembly (B) . The faucet is pre-assembled, except for the sprayer head . 2 . Take the washer, gasket and retaining ring off of the faucet body . Gooseneck 3 . -
Page 9: Mounting The Utility Sink
Installation (continued) MOUNTING THE UTILITY SINK 1 . Carefully place a bead of sealant all around the top of the cabinet (A) . 2 . Ease the utility sink (E) into the cabinet (A) . Ensure that it is placed evenly and is centered on the cabinet . Wipe off any excess sealant . -
Page 10: Placement
Installation (continued) PLACEMENT Move the assembled unit to its final location. If required, level the unit by adjusting the four leveling legs. Ensure that no rocking is exhibited . SUPPLY LINE The supply lines, which connect the faucet to the household water system, are not supplied with this unit . -
Page 11: Care And Cleaning
Care and Cleaning UTILITY SINK Your sink is manufactured with the highest grade stainless steel and will provide you many years of enjoyment with the proper care . Do not - After use, always rinse your sink with tap - Do not allow any food, detergent, soap or water to dilute and remove deposits . -
Page 12: Service Parts
Service Parts If you are missing parts or if you require replacement parts, please contact our customer service team at cs@conglomkb .com or 1-877-333-0098 (Service available in English and French, Monday - Friday from 8:30am - 5pm EST) . Identify the required part(s) and have the part number(s) ready . - Page 13 Imported by: St-Laurent, Québec, H4S 2C3 1-877-333-0098 | cs@conglomkb.com (Service available in English and French, Monday - Friday from 8:30am - 5pm EST) www.conglomkb.com Made in China Retain this manual for future use.
