Easywave RCJ05 User Manual

Junction Box Awning Receiver
GB
Model
RCJ05E5001-01
Scope of Delivery
Control RCJ05, Radio receiver RCJ05,
connector attachment set operating instruction , ,
Technical Details
Frequency: 868.30 MHz
Modulation: FSK
Coding: Easywave A/B/C/D
Sensorabfrage: EasywaveSens
Statusmeldung: EasywavePlus „Markise"
Power supply: 230 V AC / 50 Hz
Motor running time of drive: adjustable,
factory setting 2 min
Connected load: 4 VA
Power consumption: 1,3 W
Output: 2 powered relay contacts
(normally open)
Min. switching time of 1 s
Max. contact load:
- ohmic load cos = 1: 5,0 A / 1.150 VA
- inductive load cos = 0,8: 4,0 A /
Degree of category: IP20
Operating temperature: only for dry rooms,
0°C to +40°C
Dimensions: 80 x 80 x 45 mm
Weight: 127 g
Safety Advice
Please read these instructions
carefully before using the device!
Attention! The electrical installation work
must be carried out by a qualified electrici-
an only!
Observe the valid laws and regulations as well
as the manufacturer's instructions
devices to be operated!
Have malfunctioning devices checked by the
manufacturers!
Do not make any unauthorized alterations or
modifications to the unit!
The relay contact is designed for connection
to a single-phase power supply only!
Do not extend the awning in strong winds in
emergency operation mode. You could injure
yourself and permanently damage the
awning.
Intended Use
The junction box awning receiver RCJ05 may
only be used as a Easywave radio control for
controlling motors for awnings.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Functionen
The Control 425 unit is a remote control for the
automatic or manual operation of awnings.
Automatic control is achieved using Easywave
weather sensors for:
Wind (SW01),
Wind-Sun (SWS01) or
Wind-Sun-Rain (SWSR01).
Either a wired or a remote weather sensor can be
connected to the control unit.
868.30 MHz
The manual control is achieved on the control unit
using the OPEN, STOP or CLOSE button or using
an Easywave transmitter with3-button controls.
pin
The control controlled following weather situa-
tions:
Wind
The wind function is always active if a weather
sensor has been programmed into the control
unit. If the wind force exceeds the threshold value
programmed in the weather sensor unit, the
awning is automatically retracted.
Rain
The rain function is active if a weather sensor with
a rain function has been programmed into the
control unit. If the weather sensor reports "rain",
the awning is automatically retracted.
The rain function could be switched off for
maintenance, to control the awning manually.
Sun
920 VA
The sunlight function is active if a weather sensor
with a light sensor has been programmed into the
control unit. If the light intensity exceeds the
threshold value programmed in the weather
sensor unit, the awning is automatically exten-
ded. If the light intensity falls below this value, the
awning is automatically retracted.
The control unit also performs the following
functions:
Saving the motor running time value
Different motor running times are required
depending on the size of the awning. The running
time can be measured and saved in the awning
control unit.
for the
Gastro-Funktion
The gastronomy function is a special awning
control function which automatically extends the
awning if it rains, so that guests on the patio are
sheltered.
RCJ05

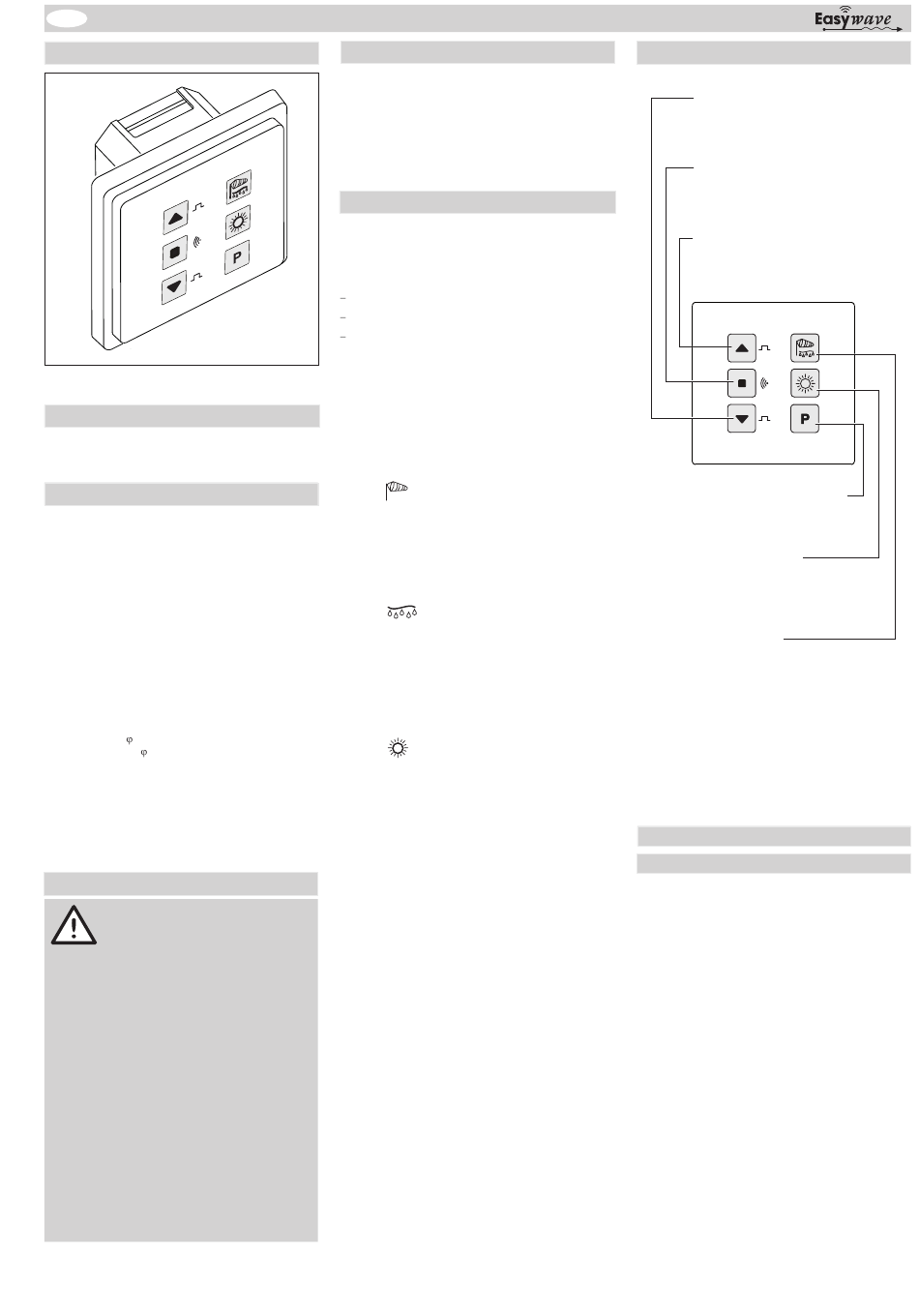

Display
OPEN direction button (LED red)
- Extending the awning
- Saving the motor running
time value
STOP button (LED red)
- Stopping the awning
- Programming/deleting remote
control
CLOSE direction button (LED red)
- Retracting the awning
- Saving the motor running time
value
Programming button P (LED red)
- Programming/deleting mode display
- Reset
SUN button (LED green)
- Sunlight function status display
LED light up: sun function on
- Switching sunlight function on/off
WIND/RAIN button
- Wind function status display
LED light up red: alarm wind
- Rain function status display
LED light up blue: alarm rain
LED flashes blue: rain function off
- Interrupting gastronomy function
LED flashes blue: gastronomy function off
- Rain function ON/OFF
Putting the receiver into service
Table of contents
A Putting the receiver into service
A1 Installing and connecting. . . . . . . . . . . . . .
A2 Programming the weather sensor . . . . . . .
A3 Programming the remote control. . . . . . . .
A4 Saving the motor running time . . . . . . . . .
B Operating the awning control
B1 Wind function. . . . . . . . . . . . . . . . . . . . . . .
B2 Rain function . . . . . . . . . . . . . . . . . . . . . . .
B3 Sunlight function . . . . . . . . . . . . . . . . . . . .
B4 Gastronomy function . . . . . . . . . . . . . . . . .
B5 Manual operation of the awning . . . . . . . .
B6
Emergency operation . . . . . . . . . . . . . . . .
C Delete function
. . . . . . . . . . . . . . . . . . . . . . . .
C1 Deleting the programmed
weather senor . . . . . . . . . . . . . . . . . . . . . .
C2 Deleting remote controls . . . . . . . . . . . . . .
C3 Deleting the programmed motor . . . . . . . .
C4 Resetting to the factory
settings (Reset) . . . . . . . . . . . . . . . . . . . . .
D Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
E Quick User Guide . . . . . . . . . . . . . . . . . . 4
F General information . . . . . . . . . . . . . . . . 4
