Tait T02-00073-AAAx Installation Instructions

Use one or both of the following mounting methods:
If the gasket is installed (step 4), peel the adhesive backing off, place the housing unit
■
on the mounting surface at the required location, and apply pressure until the adhesive
holds.
The adhesive is optional. If you choose not to use adhesive for mounting, leave the adhe-
sive backing on and screw the housing unit and gasket as described below.
e
Use the four screws provided , or screws of maximum diameter 0.165in/4.2mm
■
(No. 8 or M4), to mount the housing unit. Pre-drill pilot holes of the appropriate
diameter for the screw type and mounting surface before inserting and fastening the
screws.
6 Install the hand-held control head curly cord.
a Slide the hand-held control head connector
unit until the release clip fastens.
b Install the hand-held control head grommet
Installing the mounting clip
Install the mounting clip in the most convenient location for the radio user. It must be within
easy reach of the user, but in such a position that the hand-held control head PTT key cannot
be inadvertently activated or jammed on.
Remote speaker
A remote speaker is required when a hand-held control head is installed. Use the TMAA10-
03 remote speaker for 25W radios, or TMAA10-06 for >25W radios.
Radio Programming
The radio must be programmed with the hand-held control head installed.
1 Use the tool provided in the T02-00073-AAAx kit or an
8mm AF Allen key to remove the rear programming con-
nector cover.
2 Connect a PC to the programming connector and use the
programming application to program the radio.
3 Assign functions to Key 1 to Key 6 of the hand-held con-
trol head, if required (Function Ctrl Settings form).
Refer to the online help of the programming application for
more information.
More Information
Refer to your radio provider for more information about this product.
4
f
into the connector hole of the housing
g
into the housing unit.
T02-00073-AAAx Hand-Held Control Head
© Tait International Limited July 2018
T02-00073-AAAx Hand-Held Control Head
Installation Instructions
Introduction

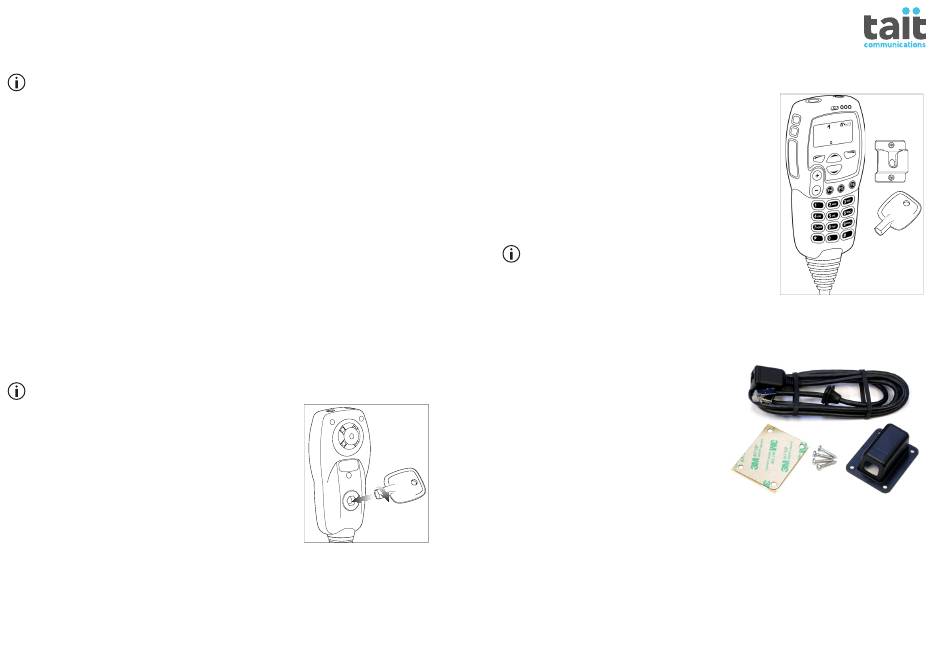

The T02-00073-AAAx is a hand-held control head
for mobile radios that enables the user to operate the radio
at a distance from the radio body.
The hand-held control head plugs into:
one of the RJ45 sockets on the T02-00081-AAAA
■
body remote interface, or
the T02-00088-BAAA remote interface box supplied
■
with the T02-00063-2001 hand-held control head
remote interface kit. Refer to the installation
instructions 402-00093-xx for full details.
The hand-held control head can only be used with the
T02-00081-AAAA body remote interface. There are
other radio body interfaces that look similar but these
are not compatible.
Extension cables
The following extension cable kits are available to extend the distance between a hand-held
control head and the radio body or a remote interface box:
T02-00009-0201: 5ft (1.6m)
■
T02-00009-0202: 10ft (3m)
■
T02-00009-0203: 20ft (6m)
■
T02-00009-0204: 30ft (9m)
■
A housing unit and gasket TMAA03-41
(ordered separately) encloses the
extension cable socket, and provides
additional strain relief and some
protection from water and dust ingress.
Notice Up to ten cables can be
connected in series to achieve a maximum distance of 100ft/30m. If distances greater
than this (up to 200ft/60m) are required, allowances must be made for the remote speaker
extension. For example, a thicker speaker cable to reduce audio losses.
Remote speaker
A remote speaker is required when a hand-held control head is installed. Use the TMAA10-
03 remote speaker for 25W radios, or TMAA10-06 for >25W radios.
© Tait International Limited July 2018
www.taitradio.com
402-00101-02
Ch an ne l 12
Zo ne 11
Me nu
Tal kg r
extension
cable
housing
gasket
unit
self tapping
screws x4
(No. 6 x 0.31in.
(19mm))
