Summary of Contents for Raychem HTC-915
- Page 1 HTC-915 Universal heat tracing control system...
- Page 2 CAUTION: installation, configuration and commissioning should only be performed by properly trained personnel. Local regulations regarding the installation & safety must be followed. APPLICATION Type Surface sensing/ambient sensing Area of use Non-hazardous area indoors, typically panel mounted Approval certification CE marked TC RU C-BE.БЛ08.B.01634 (Russia, Kazakhstan, Belarus) For other countries contact your local nVent representative.
- Page 3 Address Programmable For technical support call nVent or write an E-mail to thermal.info@nvent.com FUNCTIONAL OVERVIEW CONNECTION DIAGRAM TERMINAL ASSIGNMENTS The nVent RAYCHEM HTC-915 is a full featured temperature control system for heattracing applications. Digital Power supply HTC-915 communication 100 to 250V...
- Page 4 SHIFT ALARM MONITOR CONFIG etc… refer to HTC-915 operating manual for details. A copy of There are two status LED’s which indicate the alarm and this manual can be downloaded from nVent.com (Doc-2106) control output status of the controller: The output LED, the alarm LED will flash OPERATOR CONSOLE &...
- Page 5 Changing the Limiter set point The limiter set point is changed through the user interface of the HTC-915-CONT in exactly the same manner as for the controller. However, before the new value will be copied in the limiter memory the user has to press and release the SHIFT key followed by CONFIG.
- Page 6 2. Via pushing and holding the RESET key on the limiter unit 14°F (–10°C) for t > 2 seconds. Hi TS 2 Disable 3. Remotely via the external input of the HTC-915 and a *n/a Lo TS 2 remote contact. 212°F (100.0°C) 4.
- Page 7 POINT SETUP SUB-MENU OTHER ALARMS CONFIGURATION SUB MENU Parameter Factory User Parameter Factory User TAG-(factory ID) Lo Load Enable Switch Control Mode Deadband Lo Load 1.0 A Deadband 5°F (3°C) Lo Load Filter 0 sec Prop Band *n/a (4°F (2°C)) Hi Load Disable Cycle time...

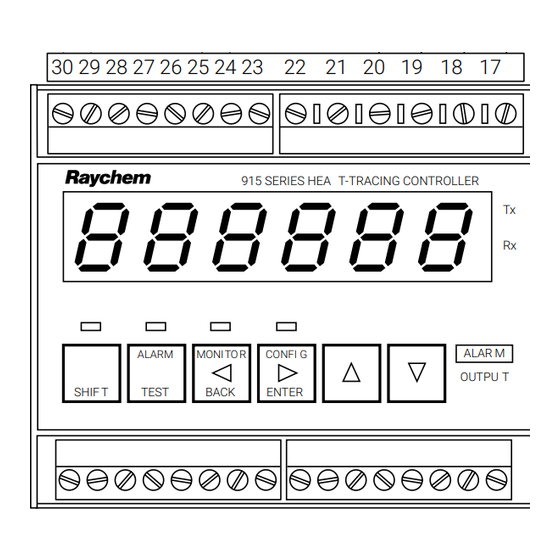

- Page 8 MAINTENANCE PRODUCT DIMENSIONS Operator Maintenance Controller Dimensions The HTC-915 control system is designed to be a maintenance free product. Replaceable Parts 915 SERIES HEA T-TRACING CONTROLLER There are no user-serviceable parts in the HTC-915 series controller or accessories. The unit is designed to be easily changed out in the field in a matter of minutes.
