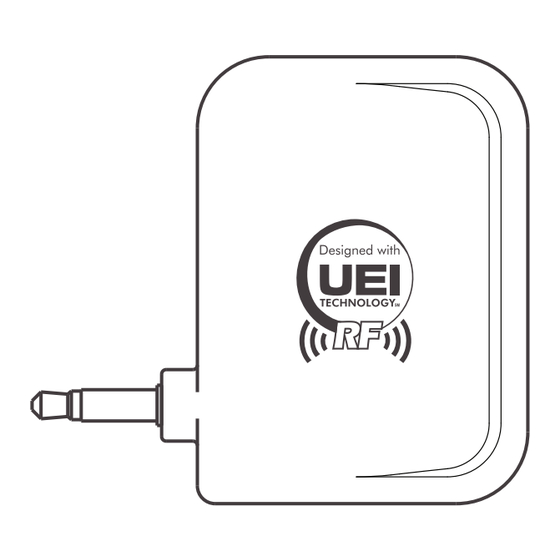

UNIVERSAL RF4CE SERIAL ADAPTER
UNIVERSAL RF4CE SERIAL ADAPTER
MUG4869 REV B
PAIRING INSTRUCTIONS
ADAPTEUR PAIRING INSTRUCTIONS
1
Make sure Adapter is
connected to the IR port on
the back of the Set-Top Box.
IR INPUT
IR INPUT
Tip:
Ensure that the RF4CE Adapter is fully
inserted into the IR port.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in
accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
approval of manufacturer could void the user's authority to operate this equipment.
For Industry Canada
Industry Canada statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
For additional support on pairing, please visit us at:
www.urcsupport.com/RF
2
Press and hold SETUP on
the remote control until
LED blinks twice.
Tip:
Ensure that the remote is an RF remote
by checking the bottom case for an RF
mark and/or FCC ID. If neither are
present, the remote is most likely not
compatible with the RF4CE Adapter.
3
Press and release PAIR
button on the Adapter.
PAIRING RESET
Press and hold in the PAIR button for 5 seconds until Red
light blinks twice and release the PAIR button.
Tip:
If you are having issues pairing please visit
www.urcsupport.com/rf for a list of set-top boxes that are
not compatible with the RF4CE Adapter.
4
Press the MENU key on
the remote control. When
the remote is paired.
5
Enter the 5 digit code for
your brand of Set-top box
(see below)
Motorola/Arris 01376
Pace 01982
Cisco 01877
Evolution 02479
Nagravision 02873
Samsung 01877
01877
Scienti c Atlanta
Technicolor 01982
04315
COX DTA
Tip:
for your set-top box, the correct 5-digit
code must be entered immediately after
pairing is completed.
