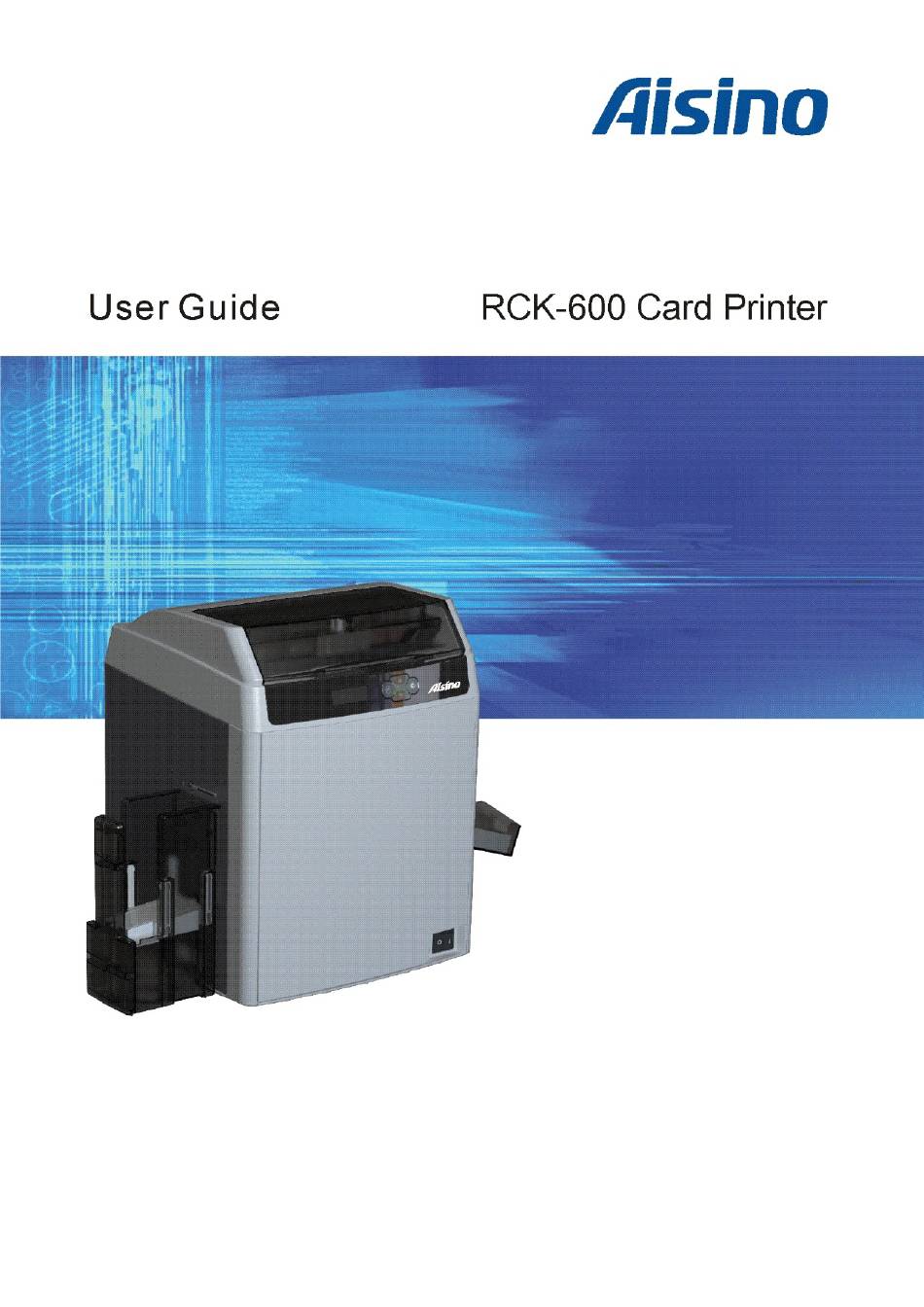

Aisino RCK-600 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCK-600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aisino RCK-600

  • Page 2 Read the following instructions thoroughly before starting up your printer. •The device and power supply must all times be easily accessible. •Never carry out maintenance or repair work yourself. Always contact a Aisino qualified service technician. •Keep this user guide in a place which is easily accessible at all times.
  • Page 3 Aisino RCK-600 User Guide Wichtige Sicherheitshinweise (German) Lesen Sie bitte diese Sicherheitshinweise durch, bevor Sie den Drucker in Betrieb nehmen. • Das Gerät und die Netzsteckdose müssen jeder Zeit leicht zugänglich sein. • Führen Sie Wartungsarbeiten und Reparaturen keinesfalls selbst aus, sondern verständigen Sie immer einen qualifizierten Servicetechniker.
  • Page 4 Aisino RCK-600 User Guide Consignes importantes de sécurité (French) Lire attentivement les instructions suivantes avant de mettre l’imprimante en service. • Le dispositif et la prise principale doivent toujours être accessibles facilement. • Ne jamais effectuer soi-même les travaux d’entretien et de réparations. Contacter toujours un dépanneur qualifié.
  • Page 5 Aisino RCK-600 User Guide Indicazioni di sicurezza importanti (Italian) Prima di mettere in funzione la stampante, leggere attentamente le seguenti indicazioni. • Il dispositivo e la presa di corrente devono essere sempre facilmente accessibili. • Non eseguire mai da sé gli interventi di manutenzione e riparazione, ma rivolgersi sempre a un tecnico di assistenza qualificato.
  • Page 6 Aisino RCK-600 User Guide Instrucciones de seguridad importantes (Spanish) Lea las siguientes instrucciones con esmero antes de poner la impresora en servicio. • El dispositivo y la toma de corriente deben estar ubicados de forma que sea fácil acceder a ellos.
  • Page 7 Aisino RCK-600 User Guide . (Russian) Правила по технике безопасности Прочитайте, пожалуйста, инструкцию по технике безопасности перед включением в работу принтера. • Устройство и розетка должны быть всегда легко доступна. • Не выполняйте технические работы и ремонт техники самостоятельно, но сообщайте о...
  • Page 8 Aisino RCK-600 User Guide Instruções Importantes sobre Segurança (Portuguese) Leia as instruções de segurança antes de usar a impressora. • A impressora e a tomada devem ser facilmente em todos os momentos acessíveis. • Consulte sempre um técnico qualificado para executar uma reparação .
  • Page 9 Aisino RCK-600 User Guide Önemli Güvenlik Talimatları (Turkish) Lütfen, yazıcıyı işletime geçirmeden önce bu güvenlik talimatlarını bütünüyle dikkatle okuyun. • Cihaz ve elektrik prizinin her zaman kolayca erişilebilir olması gerekir. • Bakım ve tamir çalışmalarını kesinlikle ve hiçbir surette kendi başınıza yapmayın; her zaman kalifiye bir uzman servis-teknisyenine haber verin.
  • Page 10 Aisino RCK-600 User Guide TRADEMARK ACKNOWLEDGEMENTS “IBM” is a trademark of International Business Machines Corporation. “EPSON” is a trademark of Epson America Incorporated. “DEC” is a trademark of Digital Equipment Corporation. “Centronics” is a trademark of Centronics Data Computer Corporation.
  • Page 11 Aisino RCK-600 User Guide About This Manual This manual provides information to operators of RCK-600 to describe basic operation to enable safe and correct use of the printer. Symbol Description The symbols in this manual are identified by their level of importance, as defined below. Read the following carefully before handling the product.

  • Page 12: Table Of Contents

    Aisino RCK-600 User Guide TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ......................... 1 1.1 Unpacking ............................1 1.2 Operating the Printer Safely......................4 1.3 Printer Components ........................7 1.3.1 The front side of the printer ....................7 1.3.2 The profile of printer........................ 9 1.3.3 The rear side of the printer ....................
  • Page 13 5.3.1 Faults Related to Printing ....................... 78 5.3.2 Clear Jammed Card ........................ 82 5.3.3 Change the Print Head ......................84 5.4 Technical support ..........................84 5.4.1 AISINO partner network ......................84 5.4.2 More information ........................85 CHAPTER 6 SPECIFICATION ........................86 Appendix I: OPTIONS ..........................87...
  • Page 14 Aisino RCK-600 User Guide...

  • Page 15: Chapter 1 Introduction

    User Guide CHAPTER 1 INTRODUCTION Thank you for choosing Aisino RCK-600 card printer. You can print high-quality cards of different colors and styles with this printer. The printer should use the consumables and accessories provided by Aisino. For more details, please visit our websiteWWW.AISINO.COM.
  • Page 16 Aisino RCK-600 User Guide Package Contents: Printer 1 unit Card cassette 1 unit Standard Reject bin 1 piece Output tray 1 piece Power cord 1 piece USB cable 1 piece Cleaning Card 1 piece Graphic installation 1 piece guide Includes operation manual, GIG, User...
  • Page 17 Aisino RCK-600 User Guide  Remove the packaging Remove protective material as shown below before the printer power on. ① Pinch the box locker, loosen and remove it (2 in front, 2 in the back, 4 in total) ② Hold the handles on both sides of the box and then pull up the box.

  • Page 18: Operating The Printer Safely

    Aisino RCK-600 User Guide 1.2 Operating the Printer Safely The following precautions must be observed to assure safe operation of your printer. Do not do anything that is not described in this manual. Doing so could cause an unexpected failure. The manufacturer is not responsible for any problems caused by incorrect operation of the printer.
  • Page 19 Aisino RCK-600 User Guide Power supply Use a dedicated power cable and do not use an extension cord with multiple outlets. Be sure to remove any dust from the plug and electrical outlet. Humidity produces a micro-current on the surface causing overheating.
  • Page 20 Aisino RCK-600 User Guide Do not place heavy items on the printer and do not lean on the printer. While the printer is operating, do not turn off the power, unplug the power cable, or look inside (open) the printer.

  • Page 21: Printer Components

    Aisino RCK-600 User Guide 1.3 Printer Components 1.3.1 The front side of the printer Printer components and their functions are shown as below:...
  • Page 22 Aisino RCK-600 User Guide Component Name Function Top cover Open when loading cards or cleaning the feeding roller. Includes the keys, the LCD Panel, and LED indicator for operating the Control panel printer. Open when changing print ribbons and retransfer film, and when Front cover cleaning the Cleaning Roller.

  • Page 23: The Profile Of Printer

    Aisino RCK-600 User Guide 1.3.2 The profile of printer Component Name Function Output slot Ejects correctly printed cards. Output tray Catches / collects correctly printed cards Reject bin Cards with errors are placed here...

  • Page 24: The Rear Side Of The Printer

    Aisino RCK-600 User Guide 1.3.3 The rear side of the printer Component Name Function Up to 250 0.76mm / 30-mil cards can be loaded at a time. You can adjust the gate gap to match card thickness. Card cassette Factory default is set so the gap corresponds to feeding of cards of 0.76 mm / 30-mil cards.

  • Page 25: Control Panel

    Aisino RCK-600 User Guide 1.3.4 Control Panel There are four buttons. Logo Name Function Enter or exit current setup 【Menu/Exit】 key SET Key Confirm current setting ▲/▼ Choose between or navigate settings 【Up/Down】 keys Status LED and buzzer There’re two LED lights: blue means ready, red means error;...

  • Page 26: Attaching Power

    Aisino RCK-600 User Guide 1.4 Attaching Power Make sure the printer and the computer are powered off. Connect the power cord to the printer. Connect the power cord to the power socket. Ensure the power cord is securely connected. Turn on the printer power button.

  • Page 27: Connecting To Computer

    Aisino RCK-600 User Guide 1.5 Connecting to Computer The standard config ports of this printer are USB port and Ethernet port. All the ports are behind of the printer, please choose the proper port. Ensure your printer is switch off.

  • Page 28: Installing Windows Driver

    Aisino RCK-600 User Guide 1.6 Installing Windows Driver The driver is the connection and transformation platform between the card printer and the computer operating system to achieve the interactive processing of the information. User can set up relevant settings, get print status and etc. via driver. We load the driver on the attached CD.
  • Page 29 Aisino RCK-600 User Guide (2) Select the diver selection and port selection, click “Next”. (3) Set up the printer name, click “Start”.
  • Page 30 Aisino RCK-600 User Guide (4) Waiting for the installation. （5）Finish the installation，click the “Finish”.

  • Page 31: Installing Windows Driver Via Ethernet

    Aisino RCK-600 User Guide 1.6.2 Installing Windows Driver via Ethernet Connect the Ethernet cord to the computer, put the CD-ROM into the computer, then choose print diver program manual. The program will guide you to finish the whole installation. Ensure the printer and the computer are on the same LAN before installation.
  • Page 32 Aisino RCK-600 User Guide (4) You can modify the Printer name, IP address acquisition mode，IP address, Subnet mask. Click the “OK” when you finish.
  • Page 33 Aisino RCK-600 User Guide (5) Return to the Ethernet port configuration page, wait for a few seconds, you can see the updated Ethernet information. (6) Select you printer, click “Select”, the corresponding IP address information is displayed at the bottom left. Start the installation when you click the “OK”.
  • Page 34 Aisino RCK-600 User Guide (7) Select the diver selection and port selection, click “Next”. (8) Set up your printer name, click “Start”.
  • Page 35 Aisino RCK-600 User Guide (9) Waiting for the installation. (10) Finish the installation, click the “Finish”.

  • Page 36: Chapter 2 Installation

    Aisino RCK-600 User Guide CHAPTER 2 INSTALLATION 2.1 Installing Cards Cards can be loaded automatically from the card cassette or manually from the manual feed slot. The card cassette can hold a large quantity of cards making it convenient for mass or large- scale printing.

  • Page 37: Setting The Card Thickness

    Aisino RCK-600 User Guide 2.1.2 Setting the Card Thickness Install the card to the Card cassette.  (1) Push the slot button to the right, the slot cover will be released. Open the slot cover backwards; ○ M ove the card block lever to the left;...
  • Page 38 Aisino RCK-600 User Guide Please put the card carefully. Ensure that magnetic stripe CARDS and contact smart CARDS are properly placed in the card feeder. If the card is inserted in the wrong direction, the code selection may not work properly.

  • Page 39: Adjust The Card Inlet According To The Thickness Of The Cards

    Aisino RCK-600 User Guide 2.1.3 Adjust the card inlet according to the thickness of the cards The factory default supports 0.76mm (30mil) card thickness. Confirm the correct thickness setting before installing new cards to the card cassette. (1) Open the printer top cover. Remove the card cassette.

  • Page 40: Face Up/Down Stacking For Output Cards

    Aisino RCK-600 User Guide 2.1.4 Face Up/Down Stacking for Output Cards User can set up the output cards face up or down. Face Up: Correctly printed cards are arranged with the printed surface facing up after printing. Face Down: Correctly printed cards are arranged with the printed surface facing down after printing.

  • Page 41: Managing Rejected Cards

    Aisino RCK-600 User Guide 2.1.6 Managing Rejected Cards This printer is equipped with left and right slots to separate correctly printed cards from rejected ones. By default, rejected cards are ejected from the right slot. However, the two slots are interchangeable for your preference.
  • Page 42 Aisino RCK-600 User Guide Direct touching contaminates the ribbon/retransfer film and causes • uneven print quality. Avoid excessive impact on the ribbon/retransfer film when replacing them. • Using non-genuine products may cause poor print quality and printer • malfunction. Quality and reliability of the non-genuine products are not guaranteed.
  • Page 43 Aisino RCK-600 User Guide  Open the front cover: Hold the handle and open front cover.  Turn the ribbon lock clockwise to unlock the ribbon cartridge and pull out the whole cartridge.
  • Page 44 Aisino RCK-600 User Guide To load a new ribbon onto cartridge,  place or engage orange spoolof ribbon to feeding hub of the cartridge. While unwinding the ribbon film,  route the film around three guiding poles. Finally engage the black spool to the ...

  • Page 45: Replacing The Retransfer Film

    Aisino RCK-600 User Guide  Close the front cover to its original position.  Press the SET key when the LCD screen displays [Please press SET key]. 2.3 Replacing the Retransfer Film You should replace the retransfer film when the LCD shows [FILM END] warning.
  • Page 46 Aisino RCK-600 User Guide Please contact your local reseller for ribbons not listed above. Direct touching contaminates the ribbon/retransfer film and causes • uneven print quality. Avoid dropping or stressing the ribbon/retransfer film when replacing • them. Using non-genuine products may cause poor print quality and printer...
  • Page 47 Aisino RCK-600 User Guide malfunction. Quality and reliability of non-genuine products are not guaranteed. • Even within the warranty period, fees may be charged on servicing the • printer using non-genuine products.  Hold the handle and  open the front cover...
  • Page 48 Aisino RCK-600 User Guide   Turn the retransfer film lock counter-clockwise to unlock the retransfer film cartridge and  pull out the whole cartridge.  To load new retransfer film onto the cartridge, engage the green spool of the retransfer film to the feeding hub of the cartridge.
  • Page 49 Aisino RCK-600 User Guide  As shown in the right diagram, push in the retransfer film cartridge to the far end until a “click” is heard to indicate correct insertion. Avoid the film touching the printer compartment during insertion.  Improper retransfer film installation affects the overall print quality.

  • Page 50: Replacing The Cleaning Roller

    Aisino RCK-600 User Guide  Return the front cover to its original position.  Press SET key when the LCD screen displays [Please press the Set key]. 2.4 Replacing the Cleaning Roller Replace cleaning roller each time you change the ribbon film.
  • Page 51 Aisino RCK-600 User Guide  Open the front cover: Hold the handle and open the front cover.
  • Page 52 Aisino RCK-600 User Guide  Directly pull out the cleaning cartridge release it from lock position.  Pull the lock to release the spindle.  Remove the old cleaning roller.  Sleeve a new cleaning roller into the spindle.
  • Page 53 Aisino RCK-600 User Guide  Peel protective Sheet or coating.  Pull the lock and drop the roller to its original position in the cleaning cartridge.  After the replacement procedure, restore the cleaning cartridge until you hear a “click” sound.

  • Page 54: Installing The Output Tray

    Aisino RCK-600 User Guide 2.5 Installing the Output Tray  Hook the output tray to the opening next to the output slot.

  • Page 55: Installing The Reject Bin

    Aisino RCK-600 User Guide 2.6 Installing the Reject Bin  Hook the reject bin to the opening next to the ejection slot.

  • Page 56: Print Card

    To understand the card layout and its format and print configuration, you are advised to refer to the following example. Software Card Editor is used to support AISINO card printers. Users can quickly generate and edit content that needs to be printed.
  • Page 57 Aisino RCK-600 User Guide (2) After click “new” button, user can choose the card type he/she wants. Select “CR80” in “card type” and select “Landscape” or “Portrait” in the “card direction”. Then click “OK”. (3) The card file objects two types: “basic editing” and “advanced tools”. The “basic editing”...
  • Page 58 Aisino RCK-600 User Guide Click “ emplate” on the right side of the user interface, then user can see many default templates as follow:...
  • Page 59 Aisino RCK-600 User Guide The detailed instruction can be found as below picture: (4) Double clicks the model you want to edit, when you finish click the “print” on the “file” menu. (5) You can print the card directly.
  • Page 60 Aisino RCK-600 User Guide (6) If you want to modify the driver settings, such as card direction, single side or double-sided printing, card modification or processing, you can click "advanced option" to change the driver. As for popup print Settings, and then click "ok" to save Settings. Then click "print".
  • Page 61 Aisino RCK-600 User Guide...
  • Page 62 Aisino RCK-600 User Guide “Graphic Setting” Tabs • Color setting User can get the proper color via settings. User can also adjust the color brightness, contrast and chroma. • Settings of Black ribbon using User can print black via print K color or YMC secondary colors and K color. As well as, user can choose monochrome printing, color printing, set the black valid area and the black invalid area.
  • Page 63 Aisino RCK-600 User Guide The valid area of black printing • Set up the valid area of K color printing, the area is from the top left corner (0Pixel,0Pixel)to the lower right corner(2112Pixel,1324Pixel) on the card. Use width and height to set the length and width of the invalid...
  • Page 64 Aisino RCK-600 User Guide “Graphic setting (the reverse side)” Tabs • Color setting User can get the proper color via settings. User can also adjust the color brightness, contrast and chroma. • Settings of Black ribbon using User can print black via print K color or YMC secondary colors and K color. As well as, user can choose...
  • Page 65 Aisino RCK-600 User Guide “Maintaining” Tabs • Printing test Print the test content. • Printer information User can check the printer DPI, the maximum printing area and minimum printing area. Printer parameter setting • User can read the detailed printer parameter.
  • Page 66 Aisino RCK-600 User Guide “Printer parameter settings” • User mode User can read the printer information, options state and various of configuration information. The printer information parameters and options state parameters only support readable. Configuration information support can read and write (reference 3.2 user mode) •...
  • Page 67 Aisino RCK-600 User Guide In service mode, user can modify the print position, print density, system settings, print head, option state and configuration. Please don’t random change them, it may lead to poor printing effect.

  • Page 68: Firmware Update

    It’s very easy to update the firmware, but if the installation of firmware is incorrect, the printer will be damaged. Before updating, please contact AISINO dealer for advice on the implementation of the upgrade. In general, updates are required only when a problem or failure is explicitly identified in AISINO.
  • Page 69 Do not interrupt the transmission between the computer to the printer during the download. (Such as switch off the printer or computer power, unplug the cable, etc.). Otherwise, printer might not restart. In case of such failure, please contact AISINO dealer.

  • Page 70: Chapter 3 Normal Mode And User Mode

    Aisino RCK-600 User Guide CHAPTER 3 NORMAL MODE AND USER MODE You can change between Normal and User Modes when the printer is operating. This section outlines the differences between these two modes and how to switch from one to the other.

  • Page 71: User Mode

    Aisino RCK-600 User Guide 3.2 User Mode User Mode allows changing the parameters and checking the status.  Steps to change from Normal Mode to User Mode: 1) After LCD displays [READY], press Menu/Exit Key for 1 second then release it. The LCD changes its display to [Printer Info.], which is the entry menu in User Mode:...
  • Page 72 Aisino RCK-600 User Guide Function of four keys in User Mode:  Menu/Exit Key: back to its parent menu, i.e. one level up in the menu hierarchy.  ▲ Key: previous item. ▼Key: next item.  SET Key: an affirmative response to the second line in the LCD.
  • Page 73 Aisino RCK-600 User Guide  Moving between menus in the same level Section 3.3 lists out eleven menus in the same level, from Printer Info, Version Info, ... to Reset User Default. Consecutively pressing ▼/▲ keys leads to your designated menu. For...
  • Page 74 Aisino RCK-600 User Guide SET Key Menu/Exit Key Version Info Main Version SET: >> 1.0.10.0  Consecutively press Menu/Exit Key until the LCD shows [Quit the Menu]. Then press SET Key to return to Normal Mode: Ready Quit the Menu? SET Key SET Key must be pressed to save the newly changed value.

  • Page 75: The Major Menus

    Aisino RCK-600 User Guide 3.3 The major menus  Printer Info  Head Info  Version Info  Printer Setup  Card Setup  Ribbon/Film Setup  Image Setup  Interface Setup  Option  Cleaning  Reset User Default 3.3.1 Sub-menus for Printer Info...
  • Page 76 Aisino RCK-600 User Guide View the print head information in two sub-menus:  Print Count  Print head S/N Record the new print head serial number after replacement; otherwise, failure to do so affects print quality and voids the warranty for this print...

  • Page 77: Sub-Menus For Version Info

    Aisino RCK-600 User Guide 3.3.3 Sub-menus for Version Info View the latest version(s) in this printer:  Main Version  Sub Version  FPGA Version  Main Boot  Sub Boot 3.3.4 Sub-menus for Printer Setup View and change operation parameters: ...

  • Page 78: Sub-Menus For Card Setup

    Aisino RCK-600 User Guide 3.3.5 Sub-menus for card setup View and change card properties:  Card type: PVC/PET/PET-G/card 1/ Card 2/ card 3  Decurl Time(Front):0-5 (need to understand these numbers)  Decurl Time(Back) : 0-5  Std card exit:...
  • Page 79 Aisino RCK-600 User Guide  Error card exit: LEFT SIDE\RIGHT SIDE  Magnetic/IC Pos: Front\Back  Eject Face: Auto\Front Up\Back Up  Card Feed Mode: card cassette\Right(Manual)\Right(Auto)  Card thickness: thick\thin Card Type Valid Settings Details PVC (Default) Apply optimized retransfer conditions for standard PVC cards.
  • Page 80 Aisino RCK-600 User Guide Card loading fac IC /Chip card loading） Valid Printing Surface Rear Side Settings (when singled-side printing) (when singled-side printing) Standard Contact IC ISO chip (Default) back ISO chip Contact IC...

  • Page 81: Sub-Menus For Ribbon/Film Setup

    Aisino RCK-600 User Guide Eject Face: Valid Settings Details Standard（Default） Back Up Front Front Up Back Back Up Card Feed Mode: Valid Settings Details card cassette Cards are automatically fed from the card cassette. feed cards After receiving the printing data 0~13 seconds, the printer feeds cards automatically on the right side.
  • Page 82 Aisino RCK-600 User Guide Film Type: Valid Settings Product Code Normal Special When the unused amounts of ribbon/retransfer film reaches the values specified in Ribn near end(%) and Film near end(%), respectively, the LCD displays warning messages: “Check Ribbon” or “Check Film”.

  • Page 83: Sub-Menus For Image Setup

    Aisino RCK-600 User Guide 3.3.7 Sub-menus for Image Setup View and manage the color settings: Yellow Balance: ±64  Magenta Balance: ±64  Cyan Balance: ±64  Black Balance±32  Color Brightness: deep, medium, shallow, customer setting  3.3.8 Sub-menus for Interface Setup View and change the interface settings: ...

  • Page 84: Chatper 4 Cleaning

    Aisino RCK-600 User Guide CHATPER 4 CLEANING 4.1 Cleaning with a Cleaning Card Use the Cleaning Card provided to clean the Card Transport Roller if cards do not feed smoothly. We recommend cleaning the rollers after printing 1,000 cards. Cleaning Cards can only be used once and cannot be reused. Use a new Cleaning Card with the adhesive side down every time you clean the rollers.

  • Page 85: Cleaning The Cleaning Roller

    Aisino RCK-600 User Guide 4.2 Cleaning the Cleaning Roller You can clean the Cleaning Roller before printing. Clean the cleaning roller if cards are printed with missing colors or if there are foreign objects on them. Please refer to section 2.8.
  • Page 86 Aisino RCK-600 User Guide ④ Load the Card Feeder Cassette. ⑤ Close the Top Cover. Wait for 2minutes, if you want to use the printer. You can clean the feeding roller of the secondary transfer part at the bottom of the top cover when you find the printing position on the printed card is beyond the scope of adjustment or there is a blank on the edge of the printed area.

  • Page 87: Cleaning The Transport Roller

    Aisino RCK-600 User Guide 4.4 Cleaning the Transport Roller ① Turn off the power. ② Open the top cover, and remove the Card Feeder Cassette. ③ Open the Front Cover and Top Access Cover. ④ Lift the decurl section. ⑤ Wipe the roller clean with cleaning stick.

  • Page 88: Filter Cleaning

    Aisino RCK-600 User Guide 4.5 Filter Cleaning If the filter becomes clogged or dirty, dirt may enter the printer. It is recommended the filter be cleaned monthly. ① Turn off the power. ② Remove the filter cover on the rear of the printer.

  • Page 89: Chatper 5 Troubleshooting

    Aisino RCK-600 User Guide CHATPER 5 TROUBLESHOOTING 5.1 Warning Messages and Troubleshooting This printer is designed for minimal user intervention. Occasionally, the LCD displays messages to advise users to take corrective actions. After clearing an error, press SET to initialize the printer and [Ready] will be displayed.
  • Page 90 Aisino RCK-600 User Guide initialization. Film Jam Probable Cause: Retransfer film winding problem. Action: Do not turn off power. Refer to Section 2.3 to reload the retransfer film. Press SET Key to clear this warning and the printer will resume previous printing after initialization.

  • Page 91: Valuable Help From You For Troubleshooting

    Aisino RCK-600 User Guide Display Solution If the fault is not cleared after initialization, turn the rollers manually to clear jammed card Printer Card Do not turn off power. Open the front cover. Turn the rollers to clear jammed card. Close the front cover. Press SET Key to clear this warning and the printer will resume previous printing after initialization。...

  • Page 92: Troubleshooting

    Aisino RCK-600 User Guide 5.3 Troubleshooting Do not attempt to use any tool to fix any problem. This may cause serious damage to the printer. 5.3.1 Faults Related to Printing No print out? ① Check the printer driver Check compatible printer driver for Microsoft Windows Check if this printer is the default driver in Microsoft Windows.
  • Page 93 Aisino RCK-600 User Guide Blank card ejected? ① Check the ribbon and retransfer film Check if ribbon/ retransfer film run out or are damaged. Replace them if necessary. ② Check if print head is damaged. Print test pattern. If failed to print the test pattern, contact local reseller for support.
  • Page 94 Aisino RCK-600 User Guide Faults Probable Cause Corrective Actions Check that card surfaces are clean and dust • free. Dirty Card Surface Use new, clean cards. • Defective Spots Clean the transport rollers • Cleaning Roller Check the proper installation of the ribbon Ribbon not properly and retransfer film.
  • Page 95 ⑥ Check print head If a straight white line(s) travels across the length of your card, the print head may be dirty or defective. If the problem persists after cleaning, please contact your Aisino reseller. Card bent? ① See Chapter 3 to change from Normal Mode to User Mode.

  • Page 96: Clear Jammed Card

    Aisino RCK-600 User Guide ⑤ Press SET Key to save bending correction setting. The factory default value is “0”. You may use the driver to configure this parameter as well. Improper secondary retransfer parameters can overheat and cause card bending as well.
  • Page 97 Aisino RCK-600 User Guide ④ Replace jammed card back to the card cassette. ⑤ Close the card feed cover and the printer covers. ⑥ Press the SET Key. The error message disappears from the LCD display and the printer restarts.

  • Page 98: Change The Print Head

    • 5.4 Technical support If you have trouble configuring and using a printer, read this manual carefully. If you still can't solve the problem, you can get detailed information and help via the AISINO partner network. 5.4.1 AISINO partner network If you have any problem can’t be solved, please contact the AISINO dealer.

  • Page 99: More Information

    WWW.AISINO.COM, and find information about the use and troubleshooting of AISINO printers in the driver and support section. You can download the latest version of firmware, print driver and use manual, AISINO printer usage and maintenance related video, and FAQ (FAQ) section.

  • Page 100: Chapter 6 Specification

    Aisino RCK-600 User Guide CHAPTER 6 SPECIFICATION Function Double-sided printing (full color) Printing system Indirect retransfer system Printing material Material: PVC, PET, PET-G 0.48 ～ 1.10mm Card thickness ISO CR-80 – ISO7810 （53.98 x 85.60mm） Card size 600dpi （23.6 dots/mm）...

  • Page 101: Appendix I: Options

    Aisino RCK-600 User Guide Appendix I: OPTIONS The following options can be ordered for your printer, can only be either-or. 1. Feed and eject card by electric, four-in-one card: 1) Product features: • Four-in-one card, this card can be written and read as an magnetic card, an contact IC card(social security card),an non-contact IC card and an optional second-generation ID card •...
  • Page 102 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with Aisino instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 103 Aisino RCK-600 User Guide All rights reserved. Translations, reprinting or copying by any means of this manual complete or in part or in any different form requires our explicit approval. We reserve the right to make changes to this manual without notice. All care has been taken to ensure accuracy of information contained in this manual.
