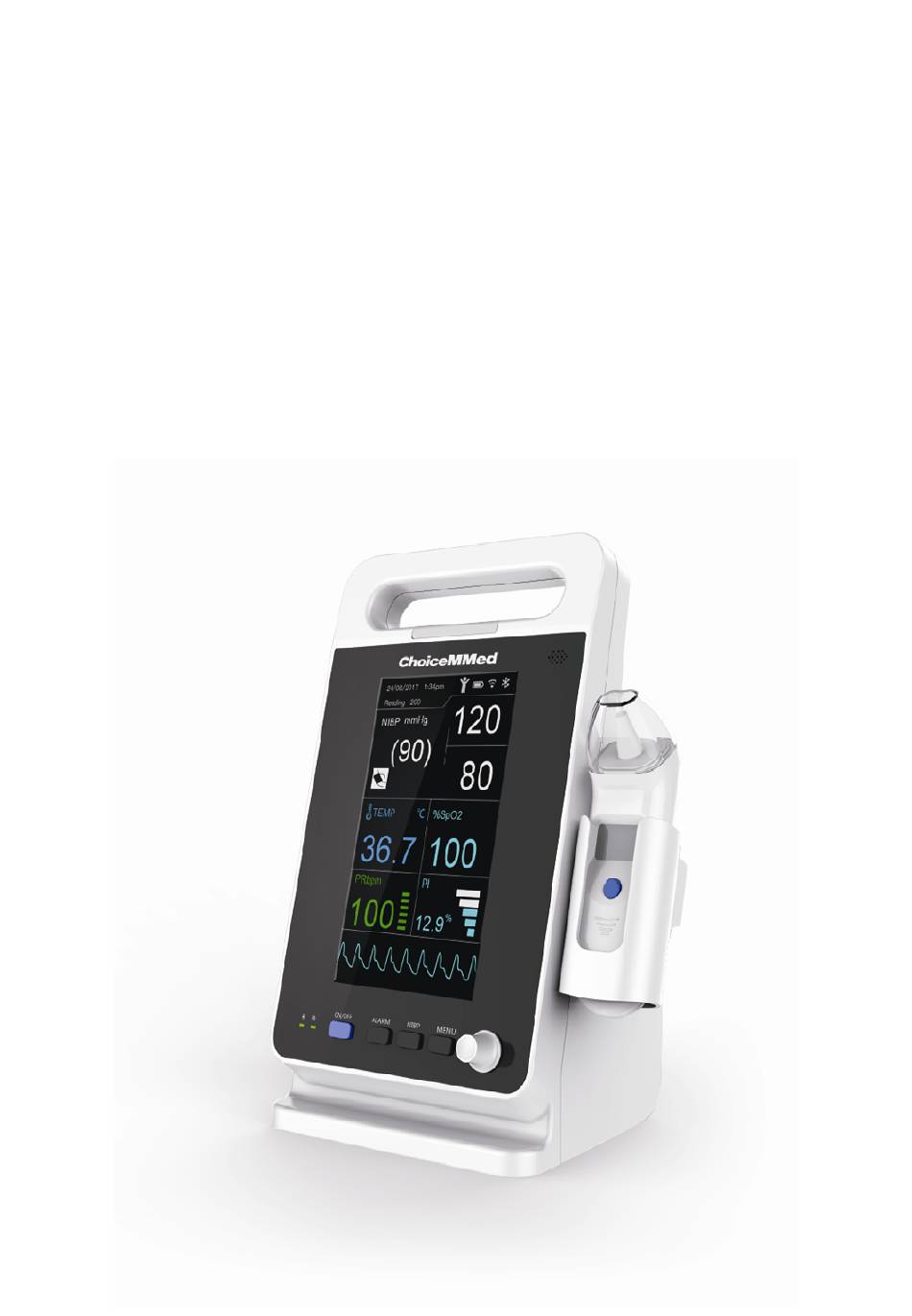

- Page 1 Vital Sign Monitor Mode: MD2000C Version:1.0...
-
Page 2: Table Of Contents
CONTENT Copyright CHAPTER 1 INTRODUCTION .................1 Our company owns all rights to this unpublished work and intends 1.1 About the Manual..................1 to maintain this work as confidential. Our company may also seek to 1.2 Contraindications ..................1 maintain this work as an unpublished copyright. This publication is to 1.3 Safety Information .................. -
Page 3: Chapter 1 Introduction
CHAPTER 1 INTRODUCTION 1.1 About the Manual Before using the MD2000C vital sign monitor, the user must carefully read this manual so that the user can operate the monitor properly and make it reach the specific safety standard and performance index. - Page 4 effective use of the monitor. medical electrical equipment. Notes: contain important information that may be overlooked or missed. • Chemicals from a broken panel are toxic when ingested. Use caution when the monitor has a broken display screen. Warnings! • Defibrillation protection only implement on the ECG cable which •...
-
Page 5: Intended Use
This equipment don’t need to calibration. Data of manufacture Quantity of the battery 1.4 Intended Use Vital Signs Monitor MD2000C is a portable device indicated for 1.7 Product Properties measuring physiological parameter, such as NIBP, SpO , PR, PI and •... -
Page 6: Chapter 2 General Descriptions
CHAPTER 2 GENERAL DESCRIPTIONS 2.1 understanding the monitor 10. SpO interface: connect the SpO sensor. 11. ETCO interface 12. NIBP interface: connect the extended BP wires and cuff. 13. Storage space: place the accessories. Fig.2.1 1.Integrated carry handle. 2. Power indicator light: use the AC power adapter, the light on. 3. -
Page 7: Power Supply
15. Wire LAN socket. Continuous inflation without leakage, and the measurements display in 16. USB socket. the device, it means the BP cuff in good condition. 17. USB socket. Power adapter: Rightly insert the power adapter with the device, the power indication light is on in green, it means the power adapter in good 2.2 Power supply condition. -
Page 8: Chapter 3 Setting
CHAPTER 3 Setting on the icon where the operation is wanted. Then pressing the knob, operator will open the setup menu of the corresponding parameter so First time use the device, you should setup the following parameters as to set up the menu. after turn on the device. - Page 9 Rotate the knob to input them. 1. turn on or off the alarm. 2. Rotate the knob to the shift icon (red cycle 1) then press to change 2. Adjust the value of alarm volume, there are 5 levels, and the default case, rotate the knob to the delete icon (red cycle 2) then press to delete level is 3.
- Page 10 High limit SYS range is 16mmHg ~ 295mmHg Low Limit SYS range is 15mmHg ~ 294mmHg High limit DIA range is 11mmHg ~ 285mmHg Low Limit DIA range is 10mmHg ~ 284mmHg Unit: mmHg / kPa System setting Fig.3.11 Data review Fig.3.10 Language: English WIFI: on / off...
-
Page 11: Chapter 4 Take A Measurement
CHAPTER 4 Take a measurement Rotate the knob on the delete that on the bottom of the screen, press the knob to delete data. 4.1 Preparation Please take caution to the deletion of data; you will never get the data Before measuring, you connect the sensor. -
Page 12: Nibp
Note: 1. Remember to save the settings or you can cancel the settings. 2. Press default, all settings will be reset to factory defaults, please be carefully. 3. Measuring method: manual or auto (1mins, 3mins, 5mins, 10mins, 20mins, 30mins, 60mins). Warnings! •... - Page 13 Fig. 4.4 Notes: • Ensure that the cuff is completely deflated. • Apply the appropriate size cuff to the patient, and make sure that the symbol “Ф” is over the appropriate artery. Ensure that the cuff is not wrapped too tightly around the limb. Excessive tightness may cause discoloration and eventual ischemia of the extremities.
- Page 14 Pressure Safety Protection 3) feet flat on the floor • Automatic deflation will be activated when the cuff pressure exceed 4) back and arm supported 280 mmHg under the adult mode. 5) middle of the cuff at the level of the right atrium of the heart •...
- Page 15 Note: 1. Remember to save the settings or you can cancel the settings. 2. Press default, all settings will be reset to factory defaults, please be carefully. Measurement principle Principle of the oximeter is as follows: A mathematical formula is established making use of Lambert Beer Law according to Spectrum Absorption Characteristics of Reductive hemoglobin (RHb) and Oxyhemoglobin (HbO2) in glow and near-infrared zones.
- Page 16 • Do not immerse sensor completely in water, solvents, or cleaning solutions because the sensor and connector are not waterproof. • Do not sterilize SpO sensors by irradiation, steam, or ethylene oxide. • Do not soak the sensor in the detergent liquid; if any abnormity of the sensor or cable is detected, stop using it immediately.
-
Page 17: Chapter 5 Maintenance
CHAPTER 5 MAINTENANCE • No SpO wave and pulse rate display when monitoring Check the probe connection and the finger temperature 5.1 Examination • Cuff inflation lacked when measuring blood pressure. Before use the device, please check the following things Cuff too loose or leak, Check the connections of tube. - Page 18 etc. • If any code label of parts is damaged or missing, this warranty shall become null and void. For example of code label. • Non-service items: a. The cost and insurance of dismantling and testing, overhauling, 5.4.5 Customer special warranty period reinstall, transfer, moving the instrument or parts.
-
Page 19: Chapter 6 Specifications
CHAPTER 6 SPECIFICATIONS Measurement range：70~100% Resolution：1% NOTES: Accuracy： • Specifications may be changed without prior notice. • The circuit diagrams, the list of components, the illustration of Classification Accuracy diagrams, and the detailed rules of calibration, are provided Adults ±2% exclusively to professional personal authorized by our company. - Page 20 According to the type of protection against electric shock: internal powered equipment. Default: upper limit:100%,lower limit:85% According to the degree of protection against electric shock: type BF upper limit:86%~100%,continuously adjust, step: 1% applied part lower limit:85%~99%,continuously adjust, step: 1% According to the degree of protection against dust and water: IP22 Note: the upper limit must greater than the lower limit.
-
Page 21: Chapter 7 Compliance Information For Emc Test
CHAPTER 7 Compliance Information for EMC Test limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used Electromagnetic emission in accordance with the instructions, may cause harmful interference to Emission test Compliance Electromagnetic Environment –... - Page 22 2570 2450, LTE 217Hz Band 5240 WLAN Pulse 5100- 5500 802.11 modulation b) 5800 217Hz 5785 Manufactured for: Beijing Choice Electronic Technology Co., Ltd. Room 4104, No. A12 Yuquan Road Haidian District 100143 Beijing PEOPLE’S REPUBLIC OF CHINA...
