Summary of Contents for Sumo Quatro 3m 2015

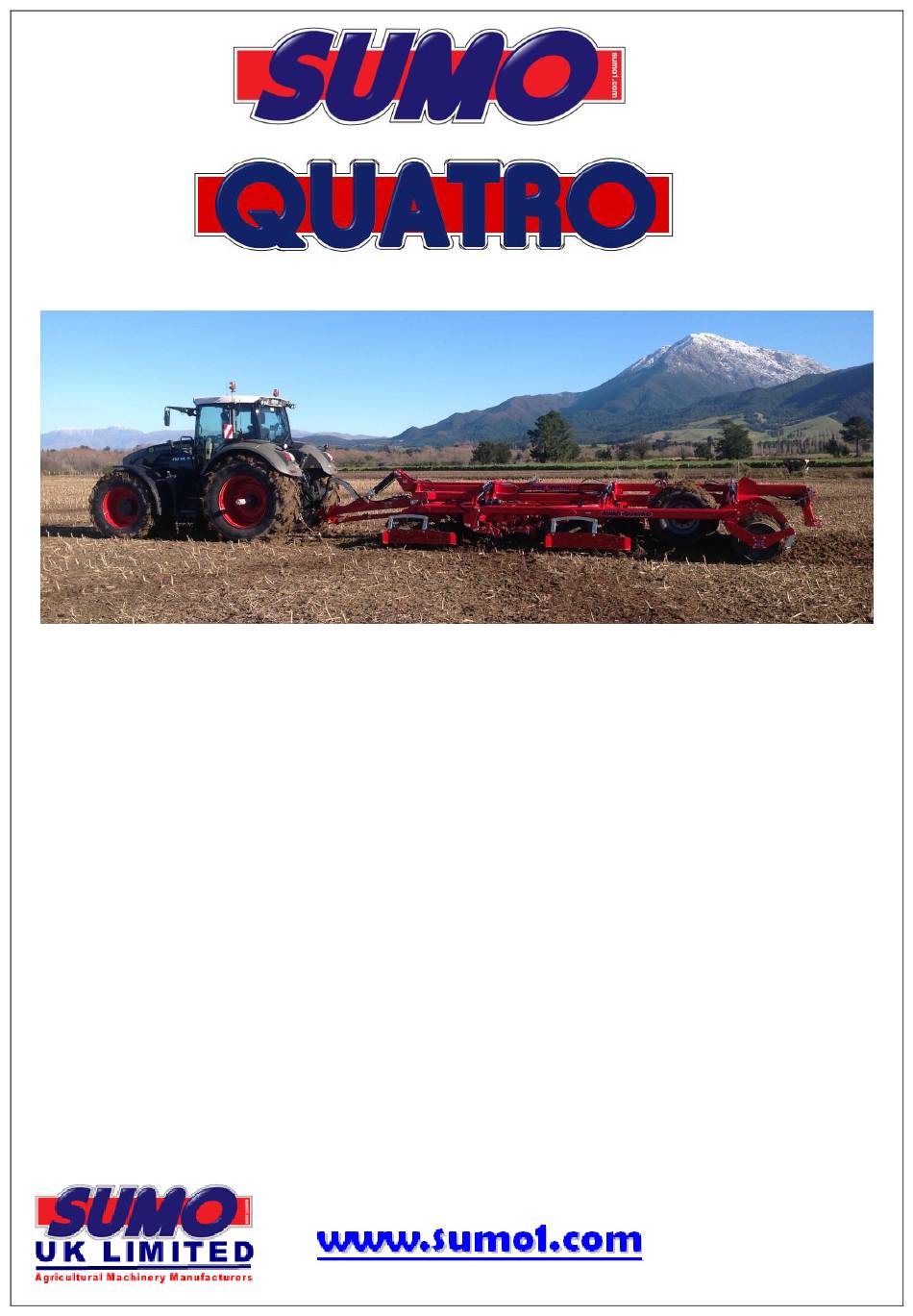

- Page 1 3m, 3.5m, 4m, 5m & 6m Machines 2015 Operator Manual Parts List Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901...
- Page 3 YO42 4RG Tel. 01759 319900 Fax. 01759 319901 (NO REGISTRATION = NO WARRANTY) SUMO SERIAL No: For your own records. (Serial plate on side of headstock) Sumo Quatro Registration Document NAME: ADDRESS: Postcode: Telephone Number: DATE: SUMO SERIAL No. (Serial plate on...
- Page 4 In order to obtain your free pair of Sumo overalls and baseball cap please fill in this form and send back to us at: Sumo UK Ltd Redgates Melbourne York YO42 4RG Tel. 01759 319900 Fax. 01759 319901 SUMO SERIAL No: Overall size: Small (38 chest) tick where applicable...
- Page 5 Before using the SUMO Quatro it is absolutely necessary that you read this Operators Manual and Safety Instructions attentively. Specifications, descriptions and illustrations in this brochure are accurate, as known, at the time of...
-
Page 6: Table Of Contents
Table of Contents 1.0 Registration 2.0 Summary 3.0 Safety 4.0 Operation and adjustments 4.1 Operating 4.2 Adjustments 4.3 Auto-Reset legs 5.0 Maintenance 5.1 Spares 5.2 Winter storage 6.0 Parts and Assembly 6.1 Twin disc unit 6.2 Single disc unit 6.3 Active soil retainer 6.4 Cast leg socket 6.5 Leg assembly Auto-Reset 6.6 Packer, scrapers and bearings assembly... -
Page 7: Safety
3.0 Safety This manual contains basic advice which should be observed during setting-up, operation and maintenance. Therefore, this operating manual must be read by the personnel concerned prior to starting up, using the machine and be available at all times. If safety instructions are not complied with, then this can lead to the risk of injury to yourself and others as well as damage to the environment or the machine. - Page 8 3.2 General safety Warning signs and other notices on the machine provide important information for the safe operation. Observing them will serve your safety. Before starting work, make yourself familiar with all the equipment and controls as well as their functions.
-
Page 9: Operation And Adjustments
Adding or removing slices from the drawbar ram allows for finite angle adjustment of the working angle. Forward working speed should be governed by the local conditions as well as the finish produced by the Sumo Quatro 4.2 Adjustments Depth adjustment of the Subsoiler legs is achieved by firstly removing the linch pin and then the depth pins. -
Page 10: Maintenance
5.0 Maintenance The packer bearings should be greased with one pump once a week and after washing off. The disc bearings should be greased until old grease is forced out once a week when in normal use and after washing off. The condition of the subsoiler legs, the points and the discs should be regularly monitored in order to maintain the most efficient use of the machine. -
Page 11: Stickers And Paint
7.6 Stickers and paint Sticker Description Quantity Part No. Big Sumo horizontal sticker SWB125 Big Quatro sticker SU013 Big Union Jack sticker 150 x 100mm SWB127 SWB128 Vertical Sumo sticker 80 x 295mm Small Union Jack sticker SWB129 Small Sumo Horizontal SWB130 Sticker Sumo Red...
