OWNER'S MANUAL
This Traulsen unit is built to our highest quality standards. We build our refrigerators this way as a matter of pride. This philosophy has made Traulsen the
leader in commercial refrigeration since 1938. We thank you for your choice and confidence in Traulsen equipment and we know you will receive many years
of utility from this equipment.
All Traulsen units are placed on a permanent record file with the service department. In the event of any future questions you may have, please refer to the model
and serial number found on the name tag affixed to the unit. Should you need service, call us on our toll free number, 800-825-8220 between 7:30 am - 4:30
pm CST, Monday thru Friday. You may also log onto www.traulsen.com for further information. It is our pleasure to help and assist you in every possible way.
COMPLETE THE FOLLOWING INFORMATION PRIOR TO UNIT INSTALLATION
INITIAL START DATE:
MODEL TYPE:
COMPANY/INDIVIDUAL NAME:
INSTALLER:
FORM NUMBER TR35921 REV. 11/10

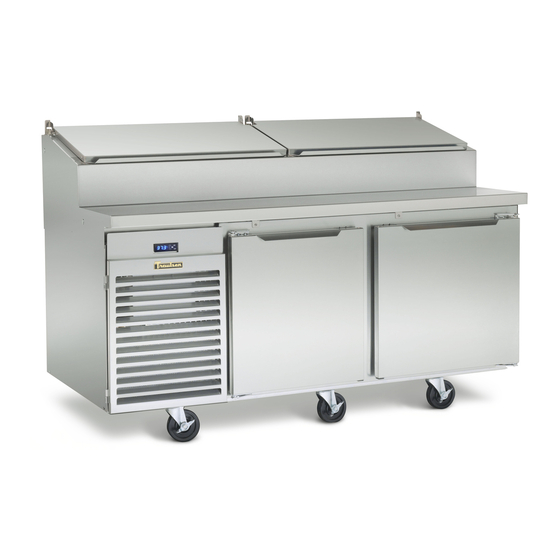

Quality Refrigeration
Instructions for the installation, operation
and maintenance of Traulsen:
TS Series Pizza/Salad/Sandwich Prep Tables
TS048HT, TS066HT, TS072HT & TS090HT
INSTALLER
SERIAL NO.
P/N 375-60308-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Traulsen TS Series

Summary of Contents for Traulsen TS Series

  • Page 1 All Traulsen units are placed on a permanent record file with the service department. In the event of any future questions you may have, please refer to the model and serial number found on the name tag affixed to the unit. Should you need service, call us on our toll free number, 800-825-8220 between 7:30 am - 4:30 pm CST, Monday thru Friday.

  • Page 2: Table Of Contents

    I. a - SERIAL TAG: FORT WORTH, TX. The serial tag is a permanently affixed label on which is recorded vital electrical and refrigeration data about your Traulsen product, as well SERIAL MODEL as the model and serial number. This tag is located in the right interior VOLTS compartment on all standard TS Series models.

  • Page 3: Receipt Inspection

    6. Rail covers should be closed over the rail as much as possible. 7. Product should be loaded into the rail at a maximum temperature of F. The TS Series unit was not designed to chill warm product, but to hold refrigerated product at a safe temperature.

  • Page 4: F-Cord & Plug

    V. DAILY OPERATION V. a - PANS Standard TS Series models are designed to operate with full, half or third size pans without the use of adapter bars. Other fractional size pans can be used with optional adapter bars available from Traulsen. 4” deep pans Once the drawer frame has been inserted, the drawer frame module can be provide the best temperature performance in the rail.

  • Page 5: Care & Maintenance

    Care should also be taken to avoid splashing the unit with water, containing chlo- life for your Traulsen is to regularly clean the condenser coil and or rinated cleansers, when mopping the floor around the unit. For stubborn odor or filter if provided.

  • Page 6: Microprocessor Control

    NAFEM Data Protocol network if provided with an optional Gateway Hub (available from Traulsen). The actual communications software is available from a number of third party software vendors. 6- Alarms (See the following pages for explanations) •...

  • Page 7: B-Alarm Explanations

    VII. PATENTED MICROPROCESSOR CONTROL (continued) VII. b - ALARM EXPLANATIONS: Explanation of alarms assume the audible alarm style is set at a 3-second burst or a continuous audible alarm. References to the audible alarm do not apply if the audible alarm style is set to OFF. High Cabinet Air Temperature The audible alarm will sound and the display will read HI CAb when the temperature inside the cabinet rises above a pre-programmed limit.

  • Page 8: C-Control Panel Diagram

    VII. PATENTED MICROPROCESSOR CONTROL (continued) VII. c - CONTROL PANEL DIAGRAM: VII. f - CUSTOMER/SERVICE PARAMETERS: Listed below are the available parameters in the order they appear, DEFROST using the down arrow key on the controller. You can use either the up F LED SYBMBOL BUTTON...

  • Page 9: G-Adjusting Thermostat Set Point

    VII. PATENTED MICROPROCESSOR CONTROL (continued) VII. g - ADJUSTING THE THERMOSTAT SET POINT: VII. i - CHANGING THE TEMPERATURE SCALE: This parameter sets the high point of the desired cabinet temperature range. The temperature scale determines if the temperature displayed will Typically, refrigerators will range from 36°...

  • Page 10: K-Setting The Date

    VII. PATENTED MICROPROCESSOR CONTROL (continued) VII. k - SETTING THE DATE (continued): VII. j - SETTING THE 24-HOUR CLOCK (continued): Follow the instructions to enter the customer access code on page 7. The display will show (day). The right two numbers will be flashing. When the control displays Thermostat Set Point, press the down arrow key...

  • Page 11: M-Starting A Manual Defrost Cycle

    VII. PATENTED MICROPROCESSOR CONTROL (continued) VII. m - STARTING A MANUAL DEFROST CYCLE: VII. n - SETTING THE DEFROST LOCKOUTS (contin- This parameter allows a service technician to start a defrost cycle at any time. This ued): parameter will override any lockout settings. Follow the instructions to enter the customer access code on page 7.

  • Page 12: O-Adjusting The Room Temperature Offset

    VII. PATENTED MICROPROCESSOR CONTROL (continued) VII. o - ADJUSTING THE ROOM TEMPERATURE OFFSET: The room temperature offset parameter allows a service technician or end user the ability to have the display show a temperature that is within three degrees of the actual temperature being read by the cabinet air sensor. This allows for continuity of reading between different temperature read- ing devices.

  • Page 13: Wiring Diagram

    VIII. WIRING DIAGRAM Note: Refer to the wiring diagram below for any service work performed by a qualified technician. -12-...

  • Page 14: Trouble Shooting Guide

    IX. TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE SOLUTION 1. Condensing unit fails to start. a. Check if cord & plug has been disconnected. b. Clean Condenser 2. Condensing unit operates for prolonged periods or a. Are doors closed properly? continuously. b. Dirty condenser or filter. Clean properly. c.

  • Page 15: Service Assistance

    If after checking the above items and the unit is still not operating properly, please contact an authorized Traulsen service agent. You may obtain the name of a service agent from the Service Directory page of our web site: www.traulsen.com. Please note, you will be required to register for a login name and pass code to access our directory.

  • Page 16: Warranties

    TRAULSEN’S standard warranty does not apply to Export Sales. Rather, for a period of one (1) year from date of original installation not to exceed Fifteen (15) months from date of shipment from fac- tory, TRAULSEN: Will replace, F.O.B.

  • Page 17: Service Parts List

    XII. SERVICE PARTS LIST Note: Part numbers listed are for standard products as currently manufactured. For products manufactured as other than standard, please contact the factory. ITEM DESCRIPTION PART NUMBER CASTERS ALL MODELS 6” ADJUSTABLE CASTER NO LOCK SER-60538-00 6” ADJUSTABLE CASTER WITH LOCK SER-60538-01 4 5/8”...
  • Page 18 XII. SERVICE PARTS LIST (continued) Note: Part numbers listed are for standard products as currently manufactured. For products manufactured as other than standard, please contact the factory. ITEM DESCRIPTION PART NUMBER DRAWERS 3 DRAWER 4” DEEP PAN MODELS TS066, TS072 & TS090 (left section) DRAWER ASSEMBLY 550-10191-00 DRAWER FACE ASSEMBLY...
  • Page 19 XII. SERVICE PARTS LIST (continued) Note: Part numbers listed are for standard products as currently manufactured. For products manufactured as other than standard, please contact the factory. ITEM DESCRIPTION PART NUMBER RAIL AIR BAFFLES MODEL TS072 AIR BAFFLE BACK 614-60257-00 AIR BAFFLE FRONT 614-60257-01 1/4-20 THUMB SCREW &...
  • Page 20 HOURS OF OPERATION: Monday thru Friday 7:30 am - 4:30 pm CST raulsen 4401 Blue Moud Road Fort Worth, TX 76106 Phone (800) 825-8220 Fax (817) 740-6757 Website: www.traulsen.com Quality Refrigeration © 2010 Traulsen - All Rights Reserved...

This manual is also suitable for:

Ts048htTs066htTs072htTs090ht
