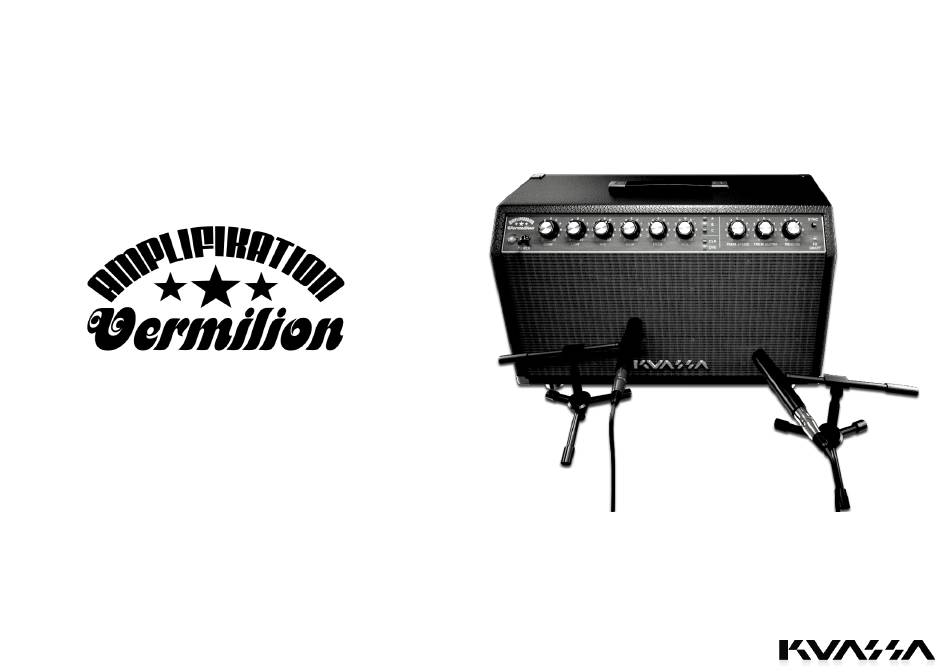

- Page 1 User Manual http://www.kuassa.com...
-
Page 2: Table Of Contents
Contents • Foreword p.2 • System Requirements p.3 • VST & Audio Units • Installation & Uninstallation p.6 • Authorization p.7 • Input Section p.9 • Panel Functions p.10 • Cabinet Functions p.11 • Output Section p.12 • Propellerhead Rack Extension •... -
Page 3: Foreword
FOREWORD Thank you for choosing Kuassa products, We encourage you to take the time to read this User Manual thoroughly to ensure trouble free and proper operation of the software. Amplifikation Vermilion is a Guitar Amp Plugin inspired by classic guitar combo amps. It offers gorgeous looks and lots of tonality for serious guitarists who demand a guitar amp plugin with versatility. -
Page 4: System Requirements
SYSTEM REQUIREMENTS Windows: Windows XP or Later (32/64 bit) Intel Pentium 4, or AMD Athlon XP or better (Core2 Duo or Athlon64 recommended) with 512MB minimum RAM VST compatible host/sequencer* Macintosh: Mac OSX 10.5 or later (32/64 bit) Intel Pentium 4 , PPC G4, or AMD Athlon XP or better (Core2 Duo or Athlon64 recommended) with 512MB minimum RAM VST or AU compatible host/Sequencer* *No DirectX or RTAS format. -
Page 5: Vst & Audio Units
VST & Audio Units... - Page 6 : C:/Program Files/Steinberg/VstPlugins/Kuassa UNINSTALLATION Mac OSX 10.5 or later To uninstall from OS X, simply delete the plug-in from your VST folder, which is usually located at “~/Library/Audio/Plug-Ins/VST/Kuassa”, and your Audio Units folder, which is located at “~/Library/Audio/Plug-Ins/Components”. Windows XP or Later Use “Add/Remove programs”...
-
Page 7: Authorization
2. To start the authorization process, click the [File] button on the top-left of Amplifikation Vermilion Interface, there, you will find a selection box titled [import License]. 3. Locate the License File [AmplifikationVermilion.kuassa] obtained from the confirmation e-mail sent to you after you purchase Amplifikation Vermilion from our web store. - Page 8 5. To check if you have completed the authorization process, just simply load the About Box by clicking the Kuassa logo on the bottom-left corner. If youʼre authorization is successful, either your name or your e-mail address will be shown on the About Box. You will also notice that the generated noise on the Evaluation Version is now gone.
-
Page 9: Input Section
INPUT SECTION thr att GATE File CAB Settings HI-Q ||||||||||||||||||| 1. INPUT CHANNEL SWITCH: Click here to switch incoming input signal channel from your soundcard. L, R, or L+R can be selected 2. INPUT LEVEL: Controls the level from your soundcard. You may turn it to the maximum without worrying of overloading the amp. 3. -
Page 10: Panel Functions
PANEL FUNCTIONS SYNC GAIN PRES MASTER TREM SPEED TREM DEPTH REVERB HIGH POWER ON/OFF 1. POWER SWITCH: Turns the amp On or Off. If the amp is Off, the sound will go directly to the cabinets. 2. GAIN: Sets the input level & the amount of distortion. Rotate clockwise for more distortion. 3. -
Page 11: Cabinet Functions
CABINET FUNCTIONS 1. CABINET ON/OFF BUTTON: Enables or disables the particular cabinet 2. PHASE BUTTON: Inverts the waveform polarity. 3. MIC ANGLE: Switches between straight or angled miking 4. MONO/STEREO SELECTOR: Use this to toggle between mono or stereo cabinet modes. 5. -
Page 12: Output Section
OUTPUT SECTION IMPULSE RESPONSE LOADER KUASSA LOGO: Clicking on the logo will show you the About box LOAD IR: Browse into your IR (Impulse Response) Folder REMOVE IR: Remove or unload IR IR TITLE: Click this to open a list of available IRs on the a folder IR NAVIGATION: Navigate available IRs on a same folder OUTPUT LIMITER: Enable or Disable the output limiter function. - Page 13 Rack Extension...
-
Page 14: Top Panel Functions
TOP PANEL FUNCTIONS PLUGIN BYPASS BUTTON: Turns on or off the whole plugin. 2. INPUT LEVEL: Controls the level from your soundcard. You may turn it to the maximum without worrying of overloading the amp. 3. INPUT METER: Show the level of incoming signal. For optimal result, make sure the level reaches about 70-80% just before Red indicator starting to light up. -
Page 15: Amp Functions
AMP FUNCTIONS 1. POWER SWITCH: Turns the amp On or Off. If the amp is Off, the sound will go directly to the cabinets. 2. AMP TYPE: • Amp A: tube amp, warm, thick overdrive, dynamic • Amp B: solid state, mellow, crunchy •... -
Page 16: Cabinet Functions
CABINET FUNCTIONS 1. DEVICE NAME 2. CABINET ON/OFF BUTTON: Enables or disables each particular cabinet, A and B 3. CABINET SELECTOR: Choose from 5 models of combo speaker cabinets 4. PHASE BUTTON: Inverts the waveform polarity. 5. MIC SELECTOR: Provides 4 types of microphones to use. 6. -
Page 17: Back Panel Functions
BACK PANEL FUNCTIONS 1. DEVICE NAME 2. CV INPUTS: • CV Input Socket: Receive incoming CV message for controlling each of Amplifikation Vermilionʼs CV control enabled parameters from another deviceʼs CV output. • CV Input Trim: Turn counter-clockwise for each corresponding input to trim or reduce the intensity of incoming CV message. 3. -
Page 18: Midi Cc Names
MIDI CC NAMES [CC] = Parameter Name [CC] = Parameter Name [128] = inputVol -- Cabinet A [148] = cabOnA -- Noise Gate [149] = cabTypeA [129] = gateOn [150] = micTypeA [130] = gateThr [151] = micPhaseOnA [131] = gateAtt [152] = micAngleA [132] = gateDec [153] = micAxisA... - Page 19 VST Plugin Technology by Steinberg Media Technologies, GmbH. AU/VST Symbiosis by NuEdge Development Audio Units by Apple FFTReal copyright by Laurent de Soras CONTACT PT KUASSA TEKNIKA Jl Sukasenang V no.14 Bandung 40124 West Java, INDONESIA http://www.kuassa.com General inquiry: info@kuassa.com Technical support : support@kuassa.com...
- Page 20 BDG, WEST JAVA. INDONESIA http://www.kuassa.com © 2013 Kuassa Kuassa and Amplifikation Vermilion is a trademark of PT Kuassa Teknika, Indonesia All other commercial symbols, product and company names are trademarks or registered trademarks of their respective holders. All rights reserved.
