TOOLS REQUIRED
M10 socket wrench
M12 socket wrench
Flat screw driver
Phillips screw driver
Disconnect the battery terminals.
Remove the air supply hose.
Remove the spur gear.
EVO X
INSTALLATION MANUAL
Pliers
6 mm Allen wrench
T20 safety TOX
Remove the air filter assembly.
Disconnect the coolant lines and remove
the throttle body.
Remove the servo motor and the wave
spring.
- THROTTLE BODY
MATERIALS REQUIRED
None
Remove the air filter housing.
Loop the coolant line back to the engine
block.
Parts that will be reused with the Boomba
Racing Throttle Body.
Disconnect the throttle body wire
harness.
Remove the throttle body cover.
Place the wave spring inside of the
throttle body housing.
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Boomba Racing EVO X

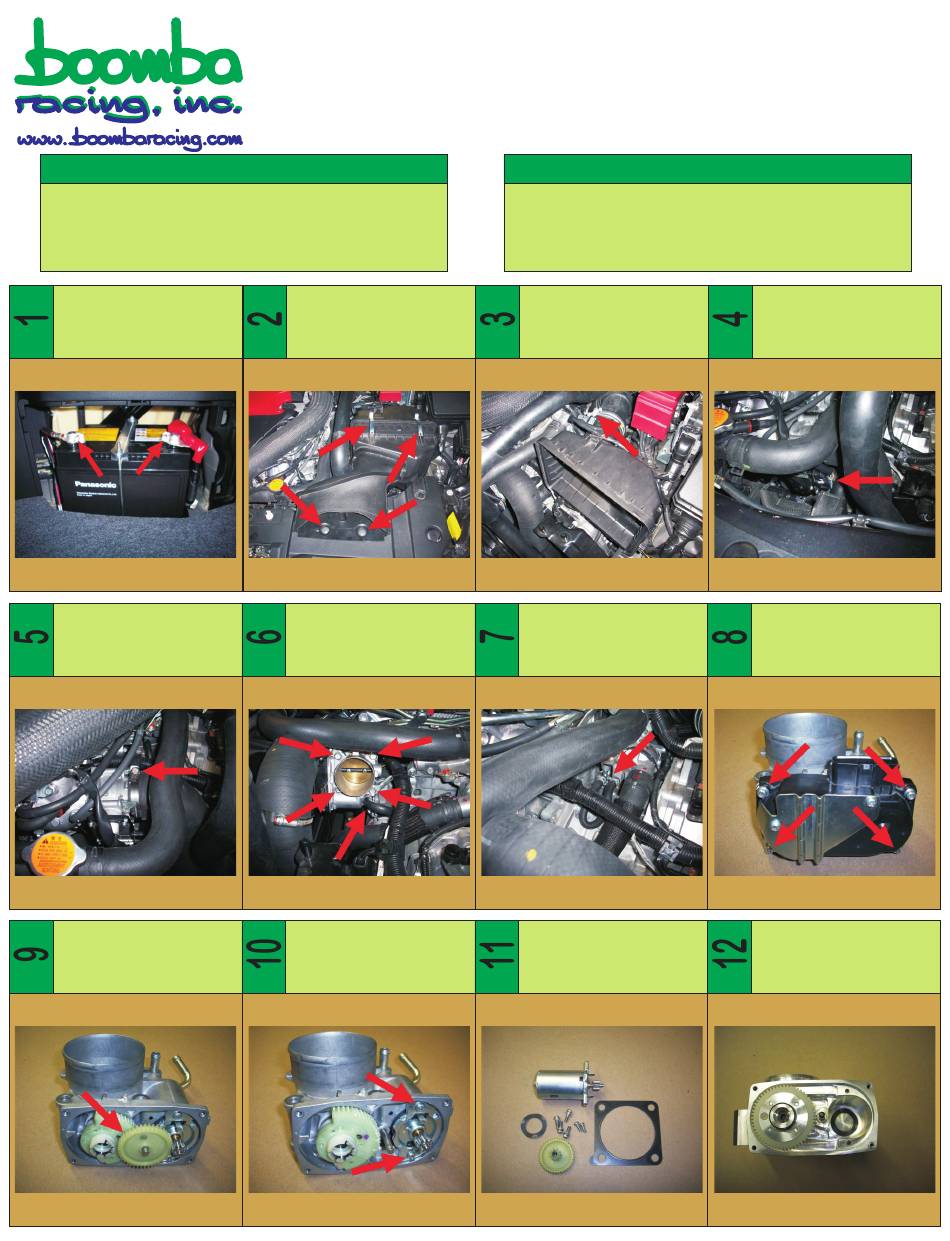

- Page 1 EVO X - THROTTLE BODY INSTALLATION MANUAL TOOLS REQUIRED MATERIALS REQUIRED M10 socket wrench Pliers None M12 socket wrench 6 mm Allen wrench Flat screw driver T20 safety TOX Phillips screw driver Disconnect the battery terminals. Remove the air filter assembly.
