Zon Powersol Assembly Instructions

Solar mobile device charging station
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

1334 Parkview Avenue
Suite 100
Manhattan Beach, CA 90266
1-310-546-8186
info@ZON-Technology.com
www.ZON-Technology.com

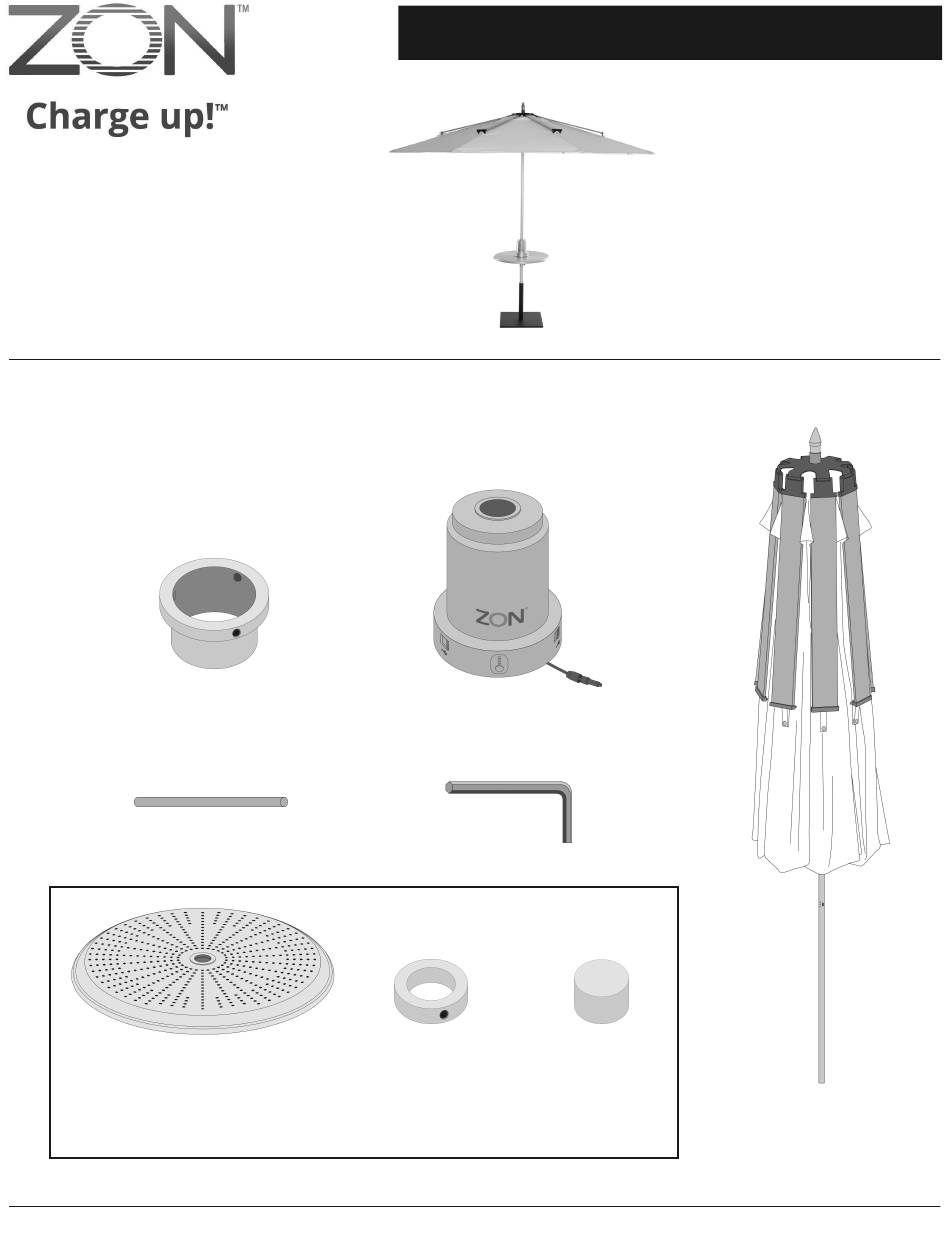

Parts List

(not drawn to scale)
LOCKING CAP
TABLE
(sold separately*)
* To purchase these accessories, please visit our website at www.zon-technology.com
TOP
PIN
LOCKING COLLAR
U.S. Patent numbers D693,560; D693,561; D693,562; D693,563. Additional U.S. & International Patents Pending.
A S S E M B L Y
CHARGING
TOWER
HEX WRENCH
BOTTOM
(sold separately*)
(sold separately*)
I N S T R U C T I O N S
Powersol
Solar Mobile Device
Charging Station
SPACER
Copyright © 2015 by ZON. Designed and made in the USA.
TM
UMBRELLA,
POLE, AND
SOLAR PANELS
