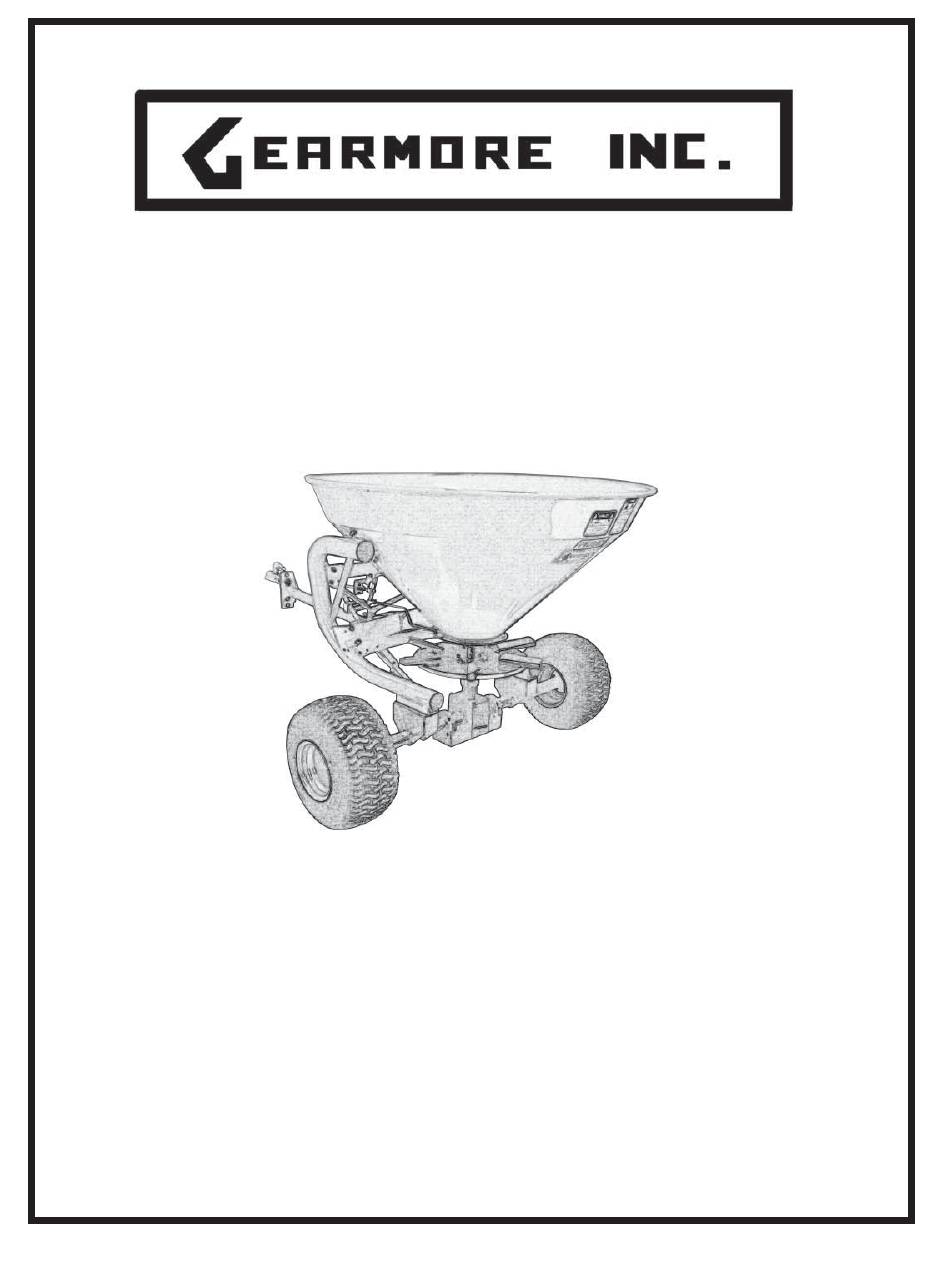

- Page 1 SEEDER / SPREADERS TRAILER MOUNTED Assembly Manual For Model PTB560 April 2009 Form: PTBSprdrAssy...
- Page 2 ASSEMBLY INSTRUCTIONS STEP 1: Bolt 12 x 30 - Qty. 8. Fasten all the bolts to the wheels. STEP 2: Washer 12 x 35 x 5, key 6 x 6 x 25, self lock nut M12 - Qty. 1 each. Assemble the bushing to the axle, as shown in the photos.
- Page 3 ASSEMBLY INSTRUCTIONS STEP 5: Bolt 10 x 25 - Qty. 4, Washer 10 x 20 - Qty. 8, Nut M10 - Qty. 4. Apply the lower crossbar through the above mentioned bolts and nuts. IMPORTANT: Do not tighten until fi nal assembly. STEP 6: Bolt 10 x 35 - Qty.
- Page 4 ASSEMBLY INSTRUCTIONS STEP 10: Bolt 10 x 25 - Qty. 2, Bolt 10 x 80 - Qty. 1, Washer 10 x 20 - Qty. 6, Nut M10 - Qty. 2. Install all lower tie rods, as shown in the photos without tightening them. STEP 11: Bolt 10 x 80 - Qty.
- Page 5 ASSEMBLY INSTRUCTIONS STEP 15: Bolt 10 x 20 TTQST - Qty. 6. Fasten the hopper to the frame with the above mentioned screws. STEP 16: Bolt 12 x 55 - Qty. 1. Fasten the lever release with the above mentioned screw, but upside down compared with the photo.
- Page 6 ASSEMBLY INSTRUCTIONS STEP 20: Bolt 10 x 20 TTQST - Qty. 2, Washer 10 x 80 - Qty. 1, Self Lock Nut M10 - Qty. 1, Washer 10 x 20 - Qty. 3, Nylon Bushing - Qty. 1, Spring - Qty. 1. Secure the support bracket as shown in the photos.
