IMKO TRIME-PICO T3/IPH44 User Manual

Measurement device for portable and non-destructive determination of volumetric soil moisture in a profile
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
®
TRIME
-PICO T3/IPH44
and T3/IPH50

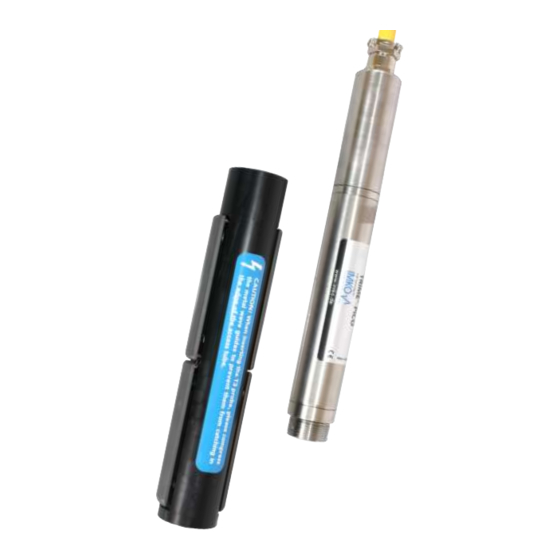

TRIME-PICO T3/IPH44
TRIME-PICO T3/IPH50 Complete Set
Tube Access Probe Head
and TDR-Electronic Head

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIME-PICO T3/IPH44 and is the answer not in the manual?

Questions and answers

Related Manuals for IMKO TRIME-PICO T3/IPH44

Summary of Contents for IMKO TRIME-PICO T3/IPH44

  • Page 1 User Manual ® TRIME -PICO T3/IPH44 and T3/IPH50 TRIME-PICO T3/IPH44 TRIME-PICO T3/IPH50 Complete Set Tube Access Probe Head and TDR-Electronic Head...
  • Page 2 ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 Thank you very much for deciding to purchase this IMKO product!. Should you have any queries please contact your local distributor or address directly to IMKO: IMKO Micromodultechnik GmbH Am Reutgraben 2...

  • Page 3: Table Of Contents

    1.1.3 Operation mode C (Cyclic measurement) ..........6 1.2 External power supply ................... 6 1.3 Installation hints ..................... 6 Technical Data ....................7 2.1 TRIME-PICO T3/IPH44 ................... 7 TRIME-PICO IPH Versions: ................9 3.1 TRIME-PICO IPH cable 3.5m, 7-pin female connector ......... 9 Accessories ...................... 10 4.1 PICO-BT, (Item no.: 300090) ...............
  • Page 4 ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 Instructions for Access Tube Installation ............22 9.1 Inserting and Fixing the Rubber Bung ............23 TRIME-PICO T3/IPH50 ..................25 Basic Calibration with the Calibration Set ............. 26 11.1 What is a basic calibration? ................ 26 11.2 What are the benefits of the calibration set for the user? .......

  • Page 5: Functional Description Trime-Pico Iph

    GlobeLog a special version with IMP-Bus has to be ordered. If multiple sensors are to be wired as a network, IMKO offers 3-port, 6-port and 12-port distri- bution modules (only for IMP-Bus). Please note that the RS485/IMP-Bus cable length and cable...

  • Page 6: Operation Mode C (Cyclic Measurement)

    Air pockets around the tube wall can reduce the measured moisture reading. Where saturated soils are involved, water-filled air pockets will result in an exaggerated reading. IMKO supplies drilling equipment for an optimal preparation of the installation point, avoiding air gaps around the tube and compaction of soil.

  • Page 7: Technical Data

    TRIME -PICO IPH Version 2_0 2 Technical Data TRIME-PICO T3/IPH44 For in situ monitoring of volumetric moisture in soils. The large measuring volume is particularly suitable for applications in heterogeneous and skeletal media. Burying capability for both hori- zontal and vertical orientation.
  • Page 8 ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 Page 8...

  • Page 9: Trime-Pico Iph Versions

    ® 2017-05-30 TRIME -PICO IPH Version 2_0 3 TRIME-PICO IPH Versions: TRIME-PICO IPH cable 3.5m, 7-pin female connector Pin layout: Pin 1: Pin 2: RS485-B Pin 3: Pin 4: RS485-A Pin 5: Not connected Pin 6: Not connected Pin 7: Not connected List of abbreviations: +Vs: + Voltage supply (7..24V/DC)

  • Page 10: Accessories

    For connecting any of the TRIME-PICO (adapter required) via the USB-Interface to a PC. The module offers 2 Sensor-Interfaces, IMP-Bus (IMKO specific) and RS485 (industrial standard). One sensor can be powered out of the USB-Interface, if multiple sensors are connected external...

  • Page 11: Extension Cable, (Item No.: 300049)

    ® 2017-05-30 TRIME -PICO IPH Version 2_0 Extension cable, (Item no.: 300049) with 1 each 7-pin female and 7-pin male connector, in free configurable length (maximum 35m!!!) Analog extension cable, (Item no.: 300102) with a 7-pin male connector and 4 end-splices [for 0-1V analog output and power supply] in free configurable length (maximum 35m!!!) Page 11...

  • Page 12: Installation Details

    ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 5 Installation details: General suggestions: Installation equipment: 5.2.1 Auger equipment for ø44mm TECANAT tubes 1 x Support pillar with clamp device (stainless steel), 1 x ramming head with 2 x wing nut (stainless steel), 1 x shock protection Nylon (TecaRIM) for ramming head,...

  • Page 13: Soil Anchor Set For Auger Equipment

    5.2.5 TECANAT access tube 3m / ø44mm PC tube 44x42mm with steel cutting shoe 1 x rubber bung 1 x cap 1 x neoprene ring Item no.: 303012 For further options and detailed information please contact IMKO, thanks! Page 13...

  • Page 14: Remote Power Supply To Trime-Pico Iph

    ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 6 Remote Power Supply to TRIME-PICO IPH The operation of TRIME sensors may cause problems when power has to be supplied via long cables. There are limitations to the maximum cable length depending on the cable diameter. When power is supplied over long distance the maximum cable length depends on the cable cross section , the supply voltage...
  • Page 15 ® 2017-05-30 TRIME -PICO IPH Version 2_0 Which solution is best suited mainly depends on the nature of the power supply of the meas- urement system: Battery supply: solution 1 and possibly solution 3 should be considered, the latter being relatively expensive.

  • Page 16: The Trime-Pico Iph Tube Access Probe

    ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 7 The TRIME-PICO IPH Tube Access Probe Introduction The measuring of soil water content with TDR (Time Domain Reflectometry) is now a well estab- lished method. However water content profiling is not possible with conventional TDR rod probes.
  • Page 17 ® 2017-05-30 TRIME -PICO IPH Version 2_0  For example at an assumed water content of 15 vol. % an air gap of 1 mm around the whole length of the tube would result in an underestimation of 1 - 2 vol. %. ...

  • Page 18: Measuring Experiences

    ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 Measuring experiences The TRIME-Technology was thoroughly tested in the field and compared both to neutron probe measurements and thermo gravimetrically determined values. Figure 2: Comparison of TRIME measurements and gravimetric water content determination for a clayey soil. Figures 5 and 6 show a comparison of water content determinations for a loess and for a heavy clay, made with a neutron probe (Wallingford), the TRIME-T3 probe, and the gravimetric meth- od.

  • Page 19: Summary

    ® 2017-05-30 TRIME -PICO IPH Version 2_0 Figure 4 : Comparison of neutron probe and TRIME-T3 for water content determinations an illitic clay. Some materials, especially very clayey soils and soils with high organic contents, can afford ma- terial specific calibrations due to their different dielectric behaviour. A limiting factor in TDR measuring is the electrical conductivity.

  • Page 20: Access Tubes And Augers

    ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 8 Access Tubes and Augers The penetration depth of the measurement field of the 44mm TRIME tube-access-probe is up to 150mm into the soil. The measurement sensitivity is the highest near the access tube and de- creases exponentially into the medium.
  • Page 21 (up to 4 weeks) before it is possible to come to precise measurement values must then be accepted. The IMKO auger equipment consists of: access tube support pillar with three soil anchors, ram- ming head with clamp device, screw auger with handle, clamp device for the rubber bung, and an internal steel guide/protection tube.

  • Page 22: Instructions For Access Tube Installation

    ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 9 Instructions for Access Tube Installation The following instructions should be taken account of: The ramming head, the TECANAT access tube and the internal steel guide and protection tube are one Ramming Head unit.

  • Page 23: Inserting And Fixing The Rubber Bung

    ® 2017-05-30 TRIME -PICO IPH Version 2_0 Inserting and Fixing the Rubber Bung 1. Orient the rubber bung with the black rubber washer downwards. 2. Insert the rubber bung into the TECANAT tube. 3. Let it glide down or push to the bottom of the tube. →...
  • Page 24 ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 Inserting TRIME-PICO- T3/IPH44 into the TECANAT Tube When you are going to work with your TRIME-T3 tube access probe: Press the spring mounted wave-guides to the probe body when you insert the T3 probe into the tube.

  • Page 25: Trime-Pico T3/Iph50

    ® 2017-05-30 TRIME -PICO IPH Version 2_0 10 TRIME-PICO T3/IPH50 The TRIME-PICO T3/IPH50 (TDR-Electronic Head) is combined with the Tube Access Probe with 50mm diameter with integrated TDR electronic head (stainless steel). The probe can be installed up to 50 meter depth with an extremely rugged and rollable crane cable. The T3/IPH50 has the same length as the T3/IPH44 tube access probe, but the diameter is big- ger, so that the probe can be installed in standard plastic installation tubes.

  • Page 26: Basic Calibration With The Calibration Set

    TRIME sensor. Every TRIME-PICO IPH sensor must be calibrated before it can supply proper measure- ment results. Basic calibration is carried out by IMKO in the factory prior to shipment. 11.2 What are the benefits of the calibration set for the user? With the calibration set you can easily carry out basic calibration of your TRIME sensor yourself.

  • Page 27: Basic Calibration Procedure

    ® 2017-05-30 TRIME -PICO IPH Version 2_0 Fill up one bucket until the rods of the probe can be immersed completely. To obtain a consistent density, knock the bucket on the ground several times. The density of the glass beads increases with frequent insertion of probes. Therefore the glass beads should be poured out into another bucket and poured back to achieve the original density.
  • Page 28 ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 TRIME-Tool software. Figure: TRIME-PICO IPH with T3/44mm probe head, while putting it into the Tecanat calibration tube for the basic alignment. Take care, that the wave guides of the T3/44mm has to be cov- ered by glass beads completely! The basic alignment will fail if the wave guides are partly in air! Page 28...

  • Page 29: Soil Density Correction With Pico Sensors

    <50% clay and <10% organic with just one calibration. The only factor is the offset caused by the differing soil density, which can be compensated by a formula which IMKO offers at its homepage in an Excel-File “Soil Density Correction”.
  • Page 30 ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 Load the Excel-file “Soil Density Correction” from IMKO´s homepage “Support” and “PICO- CONFIG” and enter your soil density for getting the appropriate offset correction value. Page 30...

  • Page 31: Material-Specific Calibration

    TRIME-Tool down to the last digit. The software is required for setting up a material-specific download under www.imko.de calibration ( A test series with reference values is necessary for performing material-specific calibration (e Oven drying at 105°C until weight is constant ).

  • Page 32: Emv/Emi Protection

    Customers who have lightning protection insurance must comply with defined clauses regarding lightning and excess voltage. Insurance companies only cover the damage when compliance with the defined clauses has been proven. IMKO strongly recommends adequate lightning / excess voltage protection equipment for ENVIS environmental measurement systems.

  • Page 33: Installation Instructions For Sm Blitz Lightning Protection Modules

    Direct lightning strikes may cause damage nevertheless. If you have any questions regarding lightning protection please do not hesitate to contact us. Tel.: 0049 - (0)7243 - 5921-0 Fax: 0049 - (0)7243 – 90856 e-mail: info@imko.de Page 33...

  • Page 34: Configuration Example

    ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 16 Configuration example 16.1 TRIME-PICO IPH with PICO-BT module 16.2 TRIME-PICO IPH with HD2 Page 34...

  • Page 35: Trime-Pico Iph With Sm-Usb

    ® 2017-05-30 TRIME -PICO IPH Version 2_0 16.3 TRIME-PICO IPH with SM-USB Page 35...

  • Page 36: Error Codes

    ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 17 Error Codes 17.1 TRIMETOOL Errors (Software errors),which will be coded with 4 digits Code Explanation Measurement 0101-0108, Serial Port errors Check port's setting or if the port has been opened. 0301 Then close and restart the program.

  • Page 37: Pico Errors (Firmware Errors). The Errors Come From The Firmware, From 1 To 255

    Measurement 1-19 The serial communication errors due Power off, power on PICO and try it to incorrect telegram, baud rate, again. Otherwise contact IMKO. timing etc. 20-39 incorrect command number, com- Power off, power on PICO and try it mand right or command parameters.
  • Page 38 ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 120-129 Internal chip problem Power off, power on PICO and try it again. Otherwise contact IMKO. 130-199 Internal errors Contact IMKO 200-254 Reserved The data transmission is not finished. Page 38...

  • Page 39: Savety Notes

    IMKO. The sensor or the measuring system must be disconnected from the power supply before installation or maintenance work.
  • Page 40 ® TRIME -PICO T3/IPH44 IPH50 Version 2_0 2017-05-30 Danger by electricity The hand-held meter must not be immersed in water or other liquids. The sensor is insensitive to moisture contained in the typically measured prod- ucts. Only connect the hand-held meter to a properly installed outlet with the supplied voltage supply cable, the voltage of which corresponds to the tech- nical data.
  • Page 41 Precise Moisture Measurement in hydrology, forestry, agriculture, environmental and earth science, civil engineering, as well as individual applications www.imko.de...
