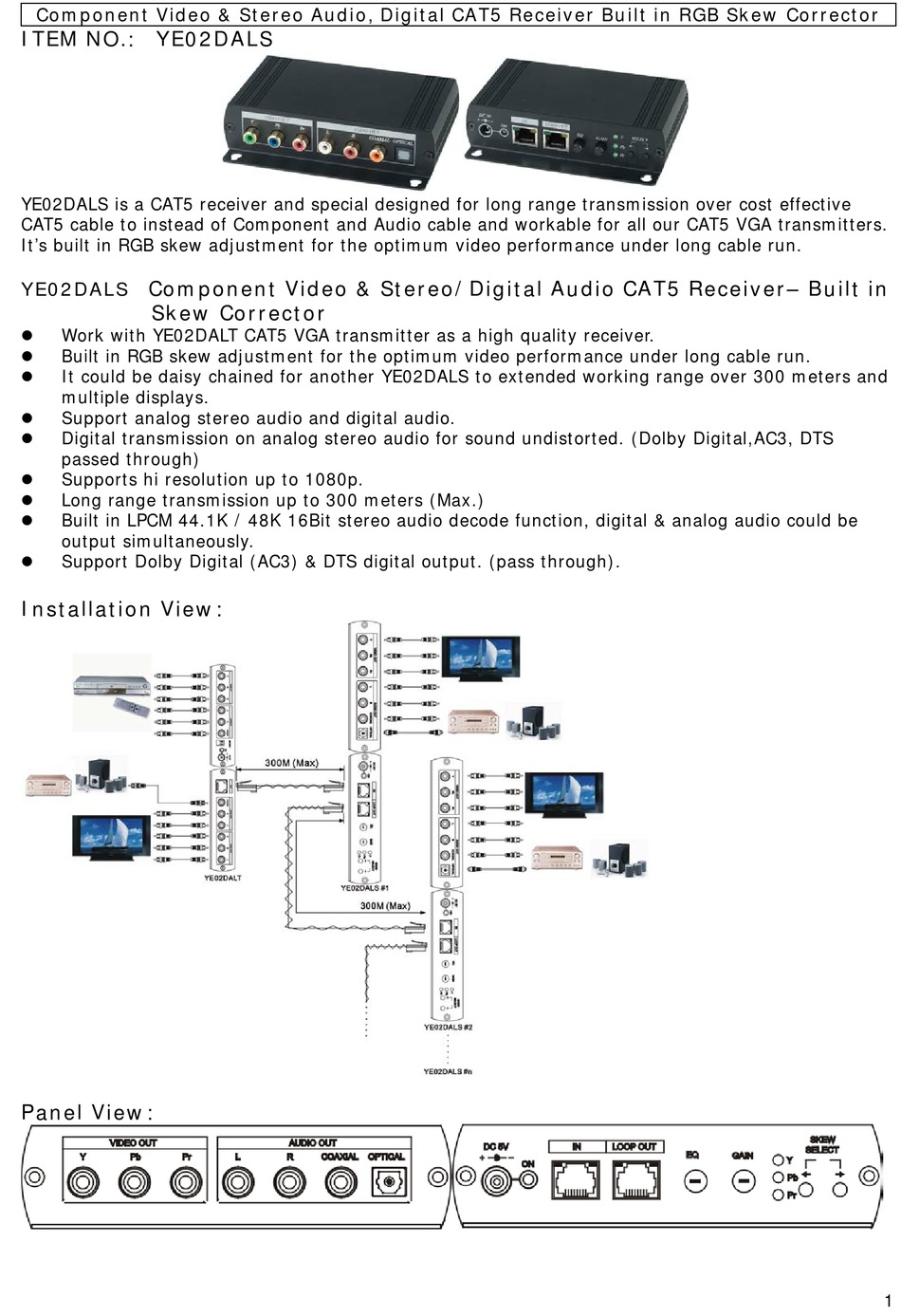

Smart Cabling & Transmission YE02DALS Manual

Component Video & Stereo Audio, Digital CAT5 Receiver Built in RGB Skew Corrector
ITEM NO.: YE02DALS
YE02DALS is a CAT5 receiver and special designed for long range transmission over cost effective
CAT5 cable to instead of Component and Audio cable and workable for all our CAT5 VGA transmitters.
It's built in RGB skew adjustment for the optimum video performance under long cable run.
Component Video & Stereo/Digital Audio CAT5 Receiver– Built in
YE02DALS
Skew Corrector
Work with YE02DALT CAT5 VGA transmitter as a high quality receiver.

Built in RGB skew adjustment for the optimum video performance under long cable run.

It could be daisy chained for another YE02DALS to extended working range over 300 meters and

multiple displays.
Support analog stereo audio and digital audio.

Digital transmission on analog stereo audio for sound undistorted. (Dolby Digital,AC3, DTS

passed through)
Supports hi resolution up to 1080p.

Long range transmission up to 300 meters (Max.)

Built in LPCM 44.1K / 48K 16Bit stereo audio decode function, digital & analog audio could be

output simultaneously.
Support Dolby Digital (AC3) & DTS digital output. (pass through).

Installation View:
Panel View:
1
