Electronic Switches ST 62 Operating Manual

SEQUENTIAL TIMER
SPECIFICATION:
1. Micro-controller based, sophisticated technique.
2. Small size, 100 X 70 x 110 mm size.
3. Memory back up.
4. Manual and Auto-reset operating modes., Relay selection facility.
5. Programming through front panel.
TERMINAL STRIP CONNECTIONS:
1 - C }
}Output relay 1 contact, rated 230 V AC 5 Amp
2 - NO }
3 - C }
}Output relay 2 contact, rated 230 V AC 5 Amp
4 - NO }
5 - C }
}Output relay 3 contact, rated 230 V AC 5 Amp
6 - NO }
7 - C }
}Output relay 4 contact, rated 230 V AC 5 Amp
8 - NO }
9 - C }
}Output relay 5 contact, rated 230 V AC 5 Amp
10 - NO }
11 - Phase }
} Supply - 110V AC
12 - Neutral }
13 - No Connection
14 - External Reset
15 - ( + )Ve 12V DC}
16 - PNP Sensor
17 - NPN Sensor
18 - ( - ) Ve, Common
MODEL :ST 62

OPERATING MANUAL

19 - C }
}Output relay 6 contact, rated 230 V AC 5 Amp
20 - NO }
Following are the operating menus

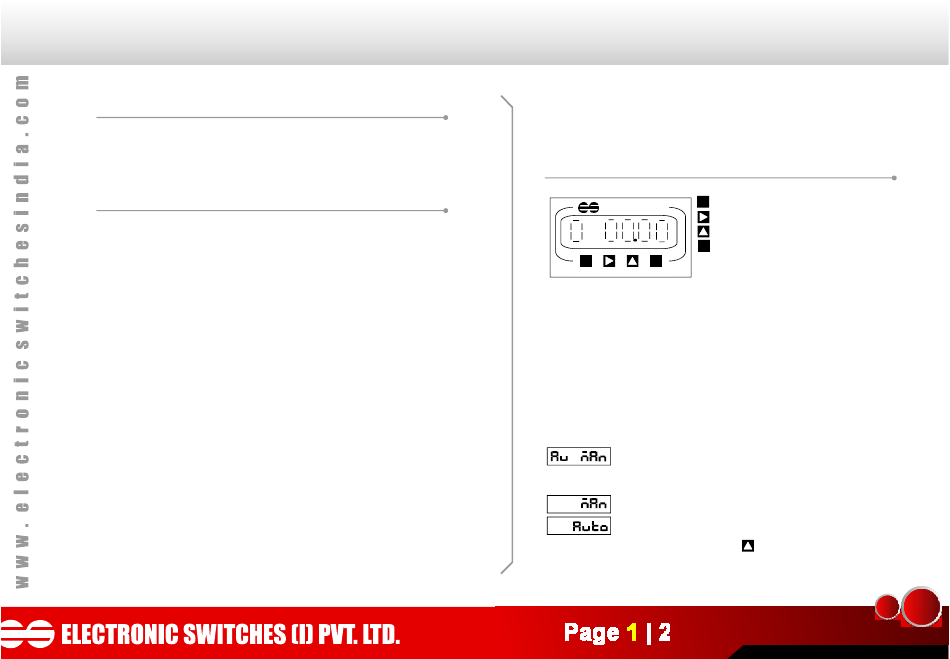

Four Switches are provided on front panel for settings.
M
: It is used to enter into menu mode
Sequential Timer
: It is used to shift the digit at right side
: It is used to increment the blinking digit
:
It is used to reset the counter manually
E
or to set the program
M
M
E
TO SET THE VARIOUS MENUS PROCEED AS FOLLOWS:
1) SWITCH OFF THE POWER SUPPLY OF THE COUNTER
2) KEEP THE SWITCH "M" PRESSED AND NOW SWITCH 'ON' THE
SUPPLY. NOW TIMER ENTERS INTO MENU MODE
1. AUTO / MANUAL RESET :
Auto Reset - In auto reset mode after completion of one cycle next
cycle starts automatically.
Manual Reset - In manual reset mode after completion of one cycle next
cycle starts after receiving pulse only.
When M switch Pressed, Display shows 'Au MAn'. This menu
For selecting Auto reset or manual reset. After release M
switch.
Display shows following
1. Auto
2. Manual
Select the above required mode by using
PRESS M switch to go to Next menu
