Muncie ACM-302 Installation Instructions

Advertisement

Quick Links

1

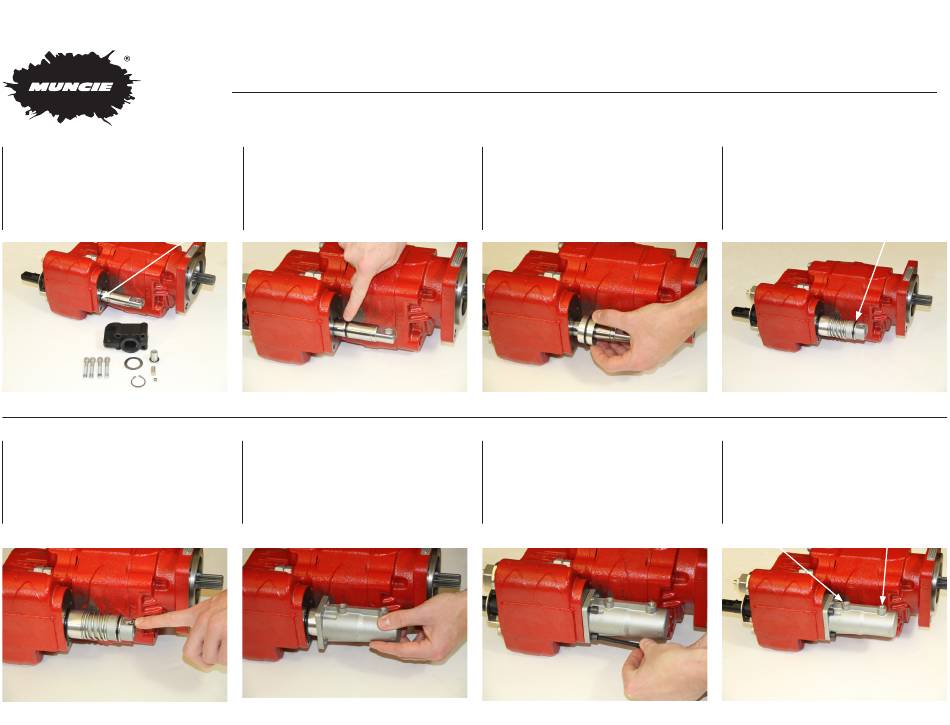

Remove detent ball retaining
screw, spring, ball, spool snap
ring, and washer. Remove spool
cover and ensure the o-ring
remained in valve housing.
O-ring in valve housing
5
Slide clevis pin through piston
assembly and valve spool eye.
Secure with provided snapring.
ACM-302

Installation Instructions

2
Place the small o-ring in the
wide "V" groove on the valve
spool and grease.*
6
Slide piston cap over piston
assembly. Make sure that the
cap is centered and that the
large o-ring (step 3) is properly
seated.
3
Slide spring retainer with large
o-ring placed around the outside
onto the valve spool. Flat side
toward valve housing.
7
Install capscrews finger tight.
Test with shop air for good spool
movement and to allow cap to
center. Torque capscrews to
15 ft.lbs. alternating diagonal
corners. Re-apply shop air to
ensure proper operation.
4
Slide piston assembly onto valve
spool as shown below. Grease*
quadring seal.
Quadring seal
*
Light duty petroleum or
synthetic grease.
Raise port
Lower port
1/8 in. NPT
1/8 in. NPT

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACM-302 and is the answer not in the manual?

Questions and answers

Summary of Contents for Muncie ACM-302

  • Page 1: Installation Instructions

    ACM-302 Installation Instructions Remove detent ball retaining Place the small o-ring in the Slide spring retainer with large Slide piston assembly onto valve screw, spring, ball, spool snap wide “V” groove on the valve o-ring placed around the outside spool as shown below. Grease* ring, and washer.
  • Page 2 ACM-302 Installation Instructions AIR CYLINDER KIT: ACM-302 (Fits both E/EH Series) Ports are 1/8 in. NPT ITEM DESCRIPTION MUNCIE NUMBER Piston Quad Seal Ass’y (PE1-1401-AV) PE1-1400-AV Only Spring Retainer Spring Wire Ring Spring Retainer ....1 ..PE1-1402-AV Small O-Ring ......1 ..PE1-1403-AV Clevis Pin ......1 ..
