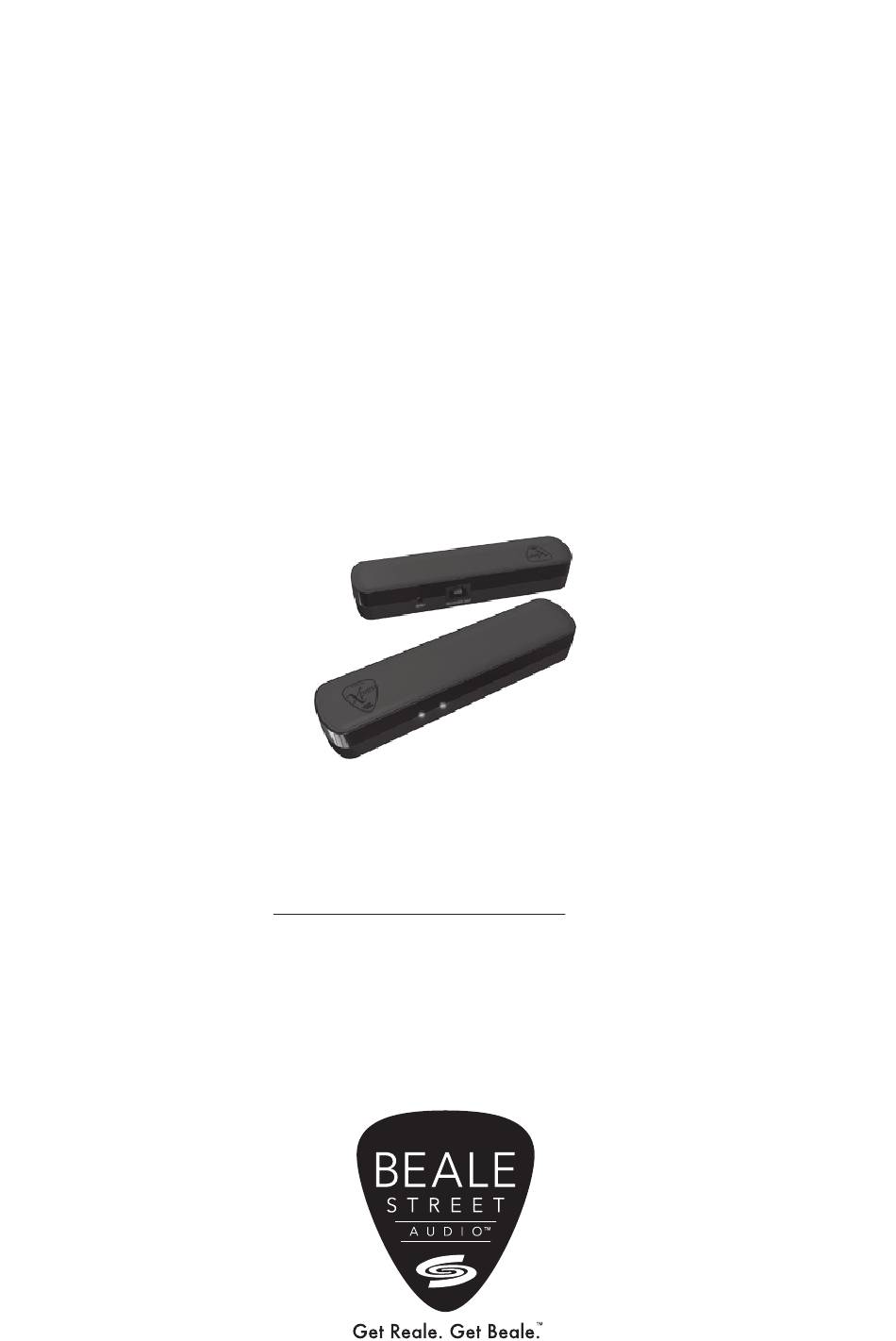

- Page 1 Beale Street Audio DBT-TAYLOR Bluetooth Module Quick Start Guide For complete instructions on DBT-TAYLOR Setup and the TAYLOR App, visit www.getbeale.com and select: ‘Products’...
- Page 2 Guide, using a Cat5e/6 cable, connect Receiver OUT on the DBT-TAYLOR to Receiver IN on the D2.1. 3. The DBT-TAYLOR has a magnet in the bottom. To mount the DBT-TAYLOR, simply allow the magnet in the DBT- TAYLOR to attach to the D2.1 chassis, or other magnetic surface.
- Page 3 DO THIS NEXT! (Get Sync’d) 1. With the DBT-TAYLOR connected and installed, turn D2.1 power ON. The power LED on the DBT-TAYLOR will illuminate solid orange. The Sync LED will slow flash blue. 2. In the tablet Settings, open the Bluetooth menu. If OFF, turn Bluetooth ON.
- Page 4 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 5 Warning: Changes or modifications to this unit not ex- pressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &...
-
Page 6: Specifications
Specifications Bluetooth Version ..4.0 (A2DP profile) with AVRCP Control Blue LED ..........Bluetooth Pairing Status Orange LED ..........TAYLOR App Sync Status Reset Button ......Clear Bluetooth Pairing Record Connection ............. RJ45 - Cat5e/6 Power Requirement ...............5VDC Power Consumption ............150mA Dimensions ..........5.7”... -
Page 7: Limited Warranty
Limited Warranty With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. - Page 8 The Vanco logo, Sonic Vortex logo, and Beale Street Audio Inc. logo are registered trademarks of Vanco International, LLC. Vanco, Sonic Vortex, Beale Street Audio, Get Reale. Get Beale., the Vortex logo, and the Beale Street Audio logo are trademarks of Vanco International, LLC. A NEW BRAND FROM...
