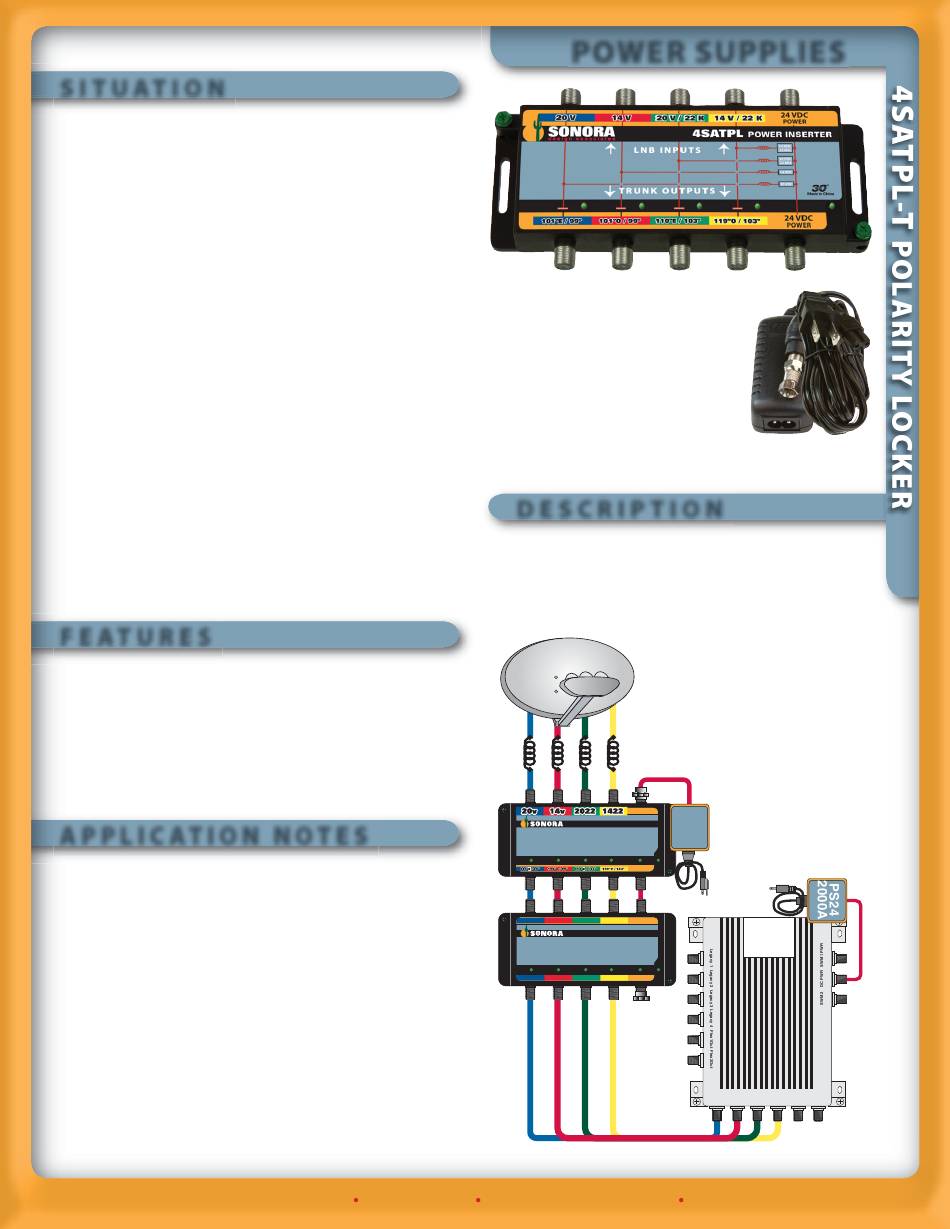

Sonora 4SATPL-T User Manual

S I T U A T I O N S I T U A T I O N
The DIRECTV® (4) polarity SlimLine® dish with SL5
LNB to receiver distance exceeds 100 feet.
SlimLine® installation manual)
SOLUTION
Model 4SATPL-T powers a DIRECTV® SlimLine® dish
with strong DC levels and polarity locks the four dish
outputs relieving the receivers from powering the LNB.
RELATED CONSIDERATIONS
Power from the PS242000A included with the
4SATPL-T may be looped to power a model LA144R
amplifier. Color coded jumpers are suggested to be
sure the polarities are maintained to the switch.
F F E A T U R E S E A T U R E S
• DBS Compatibility . . . . . . . 4 Polarity DIRECTV®SlimLine®
• 2 Amp Power Supply . . . . . powers LNBs & line amplifiers
• Locks LNBs . . . . . . . . . . . . one polarity on each of (4) coax
• Blocks 22 kHz . . . . . . . . . . . . . . . . . from multiple switches
• Indoor / Outdoor case . . . . . . . . . . . . . . Die cast Aluminum
A P P L I C AT I O N N O T E S A P P L I C AT I O N N O T E S
DIRECTV® recommends that the distance between
receiver and dish be less than 150 feet of solid
copper RG-6. At distances greater than 150 feet they
recommend a DC voltage booster and a line amplifi er.
Model 4SATPL-T provides LNB powering and strong
control signal to lock the dish. Without the locker, the
SWM16 which must power the LNB.
Model LA144R amplifi ers may be powered by the
polarity locker for installations with long switch to
dish or receiver to switch installations.
Contact: Sonora Design Associates 805.644.8913 www.sonoradesign.com info@sonoradesign.com
(Reference
D E S C R I P T I O N D E S C R I P T I O N
DIRECTV® 4 polarity SlimLine® Ku/Ka polarity
locker and power booster.
99 110 119
101
103
4SATPL
IN 1 IN 2
LA144R
OUT 1 OUT 2 OUT 3 OUT 4
POWER SUPPLIES
SL5
Locks
DC
PS24
2000A
Powers
Blocks
DC
IN 3 IN 4 DC
16 Channel SWM
DC
18V 13V 18V/22kHz 13V/22kHz
Sat 99º / 101º
DIRECTV®
Flex Flex
Sat 103º/110º/119º Port1 Port2
Revised Nov 13 2013
