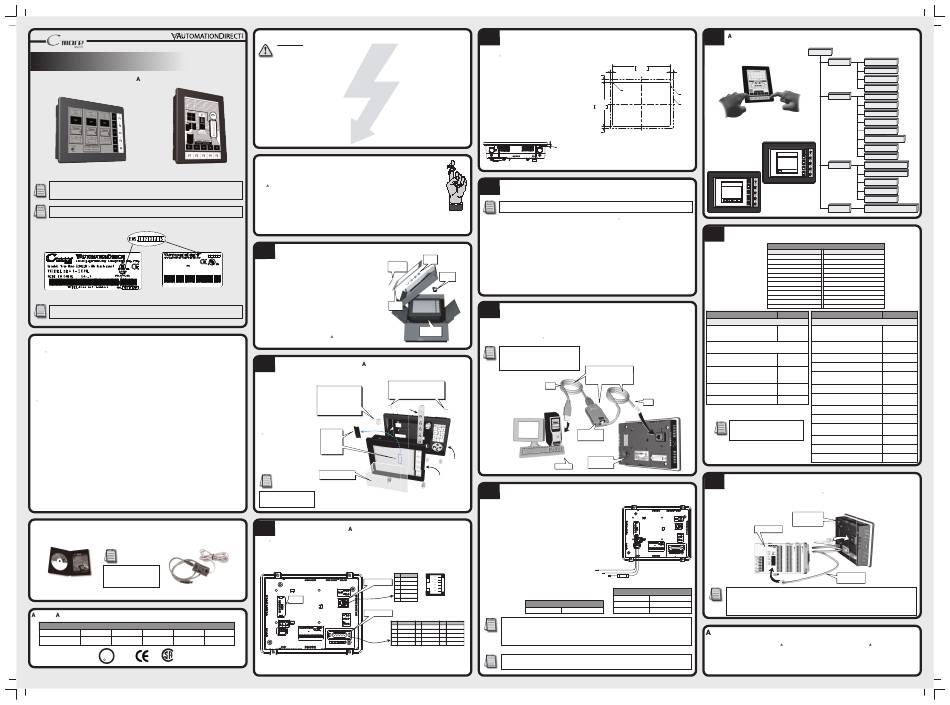

C-MORE EA1-S6ML Quick Start Manual

®
3505 HUTCHINSON ROAD
CUMMING, GA 30040-5860
Quick Start Guide Quick Start Guide Quick Start Guide
Quick Start Guide Quick Start Guide
C-more 6" Micro-Graphic Panels, ccessories & Replacement Parts
EA1-S6ML EA1-S6MLW
shown in Landscape (Horizontal) mode shown in Portrait (Vertical) mode
*NOTE: C C - - m m o o r r e e Micro-Graphic panels with the letter "W" in the part number designate units with
5 selectable background colors of White, Pink1, Pink2, Pink3 and Red. Part numbers without the
letter "W" are provided with 5 selectable background colors of Green, Red, Amber, Yellow and Lime.
NOTE: Software and Firmware Version 2.0 or later is required with models EA1-S6ML and
EA1-S6MLW. Available for free download at www.automationdirect.com.
Hardware Version
R05. R05. 1 1 2 2
MODEL:EA1-S6ML MODEL:EA1-S6ML
R R
INPUT:12-24V 6.5W INPUT:12-24V 6.5W
LISTED LISTED
Date code:**** Date code:****
7M17 7M17
MADE IN CHINA MADE IN CHINA IND.CONT.EQ. IND.CONT.EQ.
EA1-S6MLW + serial number EA1-S6MLW + serial number
Product Package Label Product Label
NOTE: C C - - m m o o r r e e 6" Micro-Graphic panels with hardware version R05 and higher must use firmware
version 3.20 or higher
General Description
The C more 6" Micro-Graphic panel has a 5.7-inch STN LCD monochrome 320 x 240 dot display. Model
EA1-S6ML has five selectable LED-driven backlight colors including Green, Red, Amber, Yellow and Lime.
Model EA1-S6MLW has five selectable LED-driven backlight colors including White, Pink1, Pink2, Pink3
and Red. Both models feature five user-defined function keys, each key with a user-defined red LED indi-
cator. The panels can display up to 40 lines by 80 characters of static text and up to 40 lines by 40 charac-
ters of dynamic text with embedded variables and phrases mixed with graphics at landscape orientation.
Portrait orientation can display 60 characters and 53 lines of static text and 40 lines by 40 characters of
dynamic text. Each model is rated UL for use on a flat surface of Type 1, 4X enclosure (indoor use only). The
C more 6" Micro-Graphic panels are powered from a 12-24 VDC power supply or can operate in low-power
mode when powered from the serial communications port of select AutomationDirect PLCs.
Other features include:
• 1792 KB memory
• Built in RJ12 serial communications port (RS-232)
• Built in 15-pin serial communications port (RS-232/422/485)
• Adjustable contrast
• 2 optional keypad bezels, 20-button landscape and 21-button portrait mount
• Optional replaceable clear screen overlay
• Built in Alarm Control setup that activates beep, backlight flash, customized alarm banner, and red LED blinking
• Up to 999 screens, limited only by memory usage
• 0 to 50 °C (32 to 122 °F) operating temperature range
• UL, cUL & CE agency approvals (see below for details)
• 2-year warranty from date of purchase
Programming Software & Programming Cable (sold separately)
USB to RS232 Programming
Programming Software
Cable Assembly
NOTE: Free download of the
C C - - m m o o r r e e Micro-Graphic
programming software at the
EA-MG-PGMSW
AutomationDirect web site.
EA-MG-PGM-CBL
gency pprovals
UL/CUL/CSA/CE Certification Numbers
Name UL/CUL UL508 CSA CE ISO-9000
C C - - m m o o r r e e Micro-Graphic Panels
E157382 U L E157382 234884 EN61131-2
& Accessories
C US
R
Copyright 2015, Automationdirect.com Incorporated/All Rights Reserved Worldwide
Safety Information
WARNING: To minimize the risk of potential safety problems, you should follow all applicable
local and national codes that regulate the installation and operation of your equipment. These
codes vary from area to area and it is your responsibility to determine which codes should be
followed, and to verify that the equipment, installation, and operation are in compliance with the
latest revision of these codes.
Equipment damage or serious injury to personnel can result from the failure to follow all applicable codes
and standards. We do not guarantee the products described in this publication are suitable for your
particular application, nor do we assume any responsibility for your product design, installation, or
operation.
If you have any questions concerning the installation or operation of this equipment, or if you need
additional information, please call us at 1-800-633-0405 or 770-844-4200.
This publication is based on information available at the time it was printed. At
Automationdirect.com® we constantly strive to improve our products and services, so we reserve
the right to make changes to the products and/or publications at any time without notice and
without obligation. This publication may also discuss features that may not be available in certain
revisions of the product.
Before you begin...
Minimum items required to create a working system:
• C-more 6" Micro-Graphic panel
• C-more Micro-Graphic Programming Software EA-MG-PGMSW (Downloadable version available from the
utomationDirect web site at no charge.)
• C-more Micro-Graphic USB to RS232 Programming Cable Assembly EA-MG-PGM-CBL, used to connect
between a PC and the Micro-Graphic panel's built-in serial port. The panel will operate in Low-Power mode
when powered by the PC and the screen brightness is diminished.
• Power source – An external 12-24 VDC power source is required for normal High-Power operation.
Recommended power supplies are AutomationDirect part numbers PSC-24-015 or PSC-24-030.
• Personal computer – to run the C-more Micro-Graphic programming software
• Communications Cable (serial) – to connect the C-more Micro-Graphic panel to your controller
1
Unpack and Inspect
3 3 4 4 5 5
Function Key
• Unpack the C-more Micro-Graphic panel from its shipping
Label Inserts
carton. Included in the carton are the following:
• C-more 6" Micro-Graphic panel
• cutout template
• mounting clips
• gasket
• function key label inserts
• Quick Start Guide
Cutout
• DC Power Connector Template
• Unpack any accessories that have been ordered, such as:
Keypad Bezel, DC Power Supply, programming cable,
communications cable, etc.
• Inspect all equipment for completeness. If anything is missing
or damaged, immediately call the utomationDirect returns
department @ 1-800-633-0405.
2
Install Optional Hardware ccessories (sold separately)
3. Use (8) Bezel Mounting Clips to
2. Use the (4) Panel Mounting
Clips that are supplied with
the panel, to secure panel to
keypad bezel and compress
the gasket between the
panel and the keypad bezel.
Tighten screws to a torque
of 21-28 oz-in [0.15-0.2 Nm].
Shown is an example of a
1. Remove
C more 6" Micro-Graphic
Expansion
Connector
panel being assembled with
Protective
an optional 20-button Cover from
rear of
Keypad Bezel.
panel.
4. Peel Protective Film
from front of panel.
NOTE: Mounting clips for the
panel or keypad bezel are
included with each product
3
Become Familiar with vailable Communication Ports
The C more 6" Micro-Graphic panels include a built-in RJ12 serial communications port (RS-232) used to
communicate with a PC during project development and later as a PLC communications interface. There is
also a second 15-pin RS-232/RS-422/RS-485 port for communications to a PLC.
RJ12 serial
communications Port1
Expansion
Connector
PLC 15-pin serial
communications Port2
Pin
R01. R01. 1 1 2 2 3 3 4 4 5 5
MODEL:EA1-S6MLW MODEL:EA1-S6MLW
INPUT:12-24V 6.5W INPUT:12-24V 6.5W R R
Date code:**** Date code:**** LISTED LISTED 8 1
7M17 7M17
MADE IN CHINA MADE IN CHINA IND.CONT.EQ. IND.CONT.EQ.
15 9
Yes EA1-S6MLW + serial number EA1-S6MLW + serial number
4
Install C-more 6" Micro-Graphic Panel
The C more 6" Micro-Graphic panel can be
mounted through a cutout in an enclosure by using
the template provided with the panel, or using the
dimensions shown. The optional keypad bezels also
include templates. The enclosure mounting thickness
range for the panels and the keypad bezels is
0.04"–0.2" [1–5 mm]. Mounting screw torque is 21-
28 oz-in [0.15-0.2 Nm].
Enclosure Thickness
ENCLOSURE MOUNTING
THICKNESS RANGE
0.04" - 0.2" [1 - 5mm]
5
Install the Software and Develop a Project
NOTE: Software and Firmware Version 2.0 or later is required with models EA1-S6ML and
EA1-S6MLW. Available for free download at www.automationdirect.com.
Following are the minimum system requirements for running C more Micro-Graphic Programming
Software, EA-MG-PGMSW, on a PC:
• Operating System - Windows® XP Home / Professional Edition Service Pack 2, Windows® 2000 with Service Pack 4,
Windows® Vista (32 or 64 bit), Windows® 7 (32 or 64 bit) or Windows 8 (32 or 64 bit)
• Keyboard and Mouse or compatible pointing device
• Super VGA color video adapter and monitor with at least 800 x 600 pixels resolution
Mounting
Clips (1024 x 768 pixels recommended) 64K color minimum
• 150 MB free hard-disk space
DC Power
• CD-ROM or DVD drive for installing software from the CD, or internet access to download free programming software
Connector
• USB port to use with an EA-MG-PGM-CBL, USB to RS232 Programming Cable Assembly for project transfer from the
programming software to the panel
6
Connect C-more Micro-Graphic Panel to Computer
Use an EA-MG-PGM-CBL, USB to RS-232 Programming Cable Assembly, from a USB port type A on the
C-more 6 Inch
Micro-Graphic project development PC, through the supplied converter, to the RJ12 RS-232 programming/PLC serial
Panel
communications port on the C more Micro-Graphic panel as shown below.
NOTE: Install C-more Micro-Graphic
Programming software before connecting
the panel to the PC to ensure the panel
drivers install correctly.
USB
secure keypad bezel through
Cable
enclosure cutout. Tighten screws
to a torque of 21-28 oz-in
[0.15-0.2 Nm].
Function
Key Label
Insert
20 Button
User PC
Keypad Bezel
EA-MG6-BZ2
C-more 6 Inch
Micro-Graphic Panel
7
Provide Power to the C-more 6" Micro-Graphic Panel
1). The panel should be powered by a 1 Amp @ 12-24 VDC
class 2 power source in normal operation.
2). The C-more 6" Micro-Graphic panel is powered during
programming from the PC through the USB to RS-232
Programming Cable Assembly, EA-MG-PGM-CBL. When
powered from the PC, the panel will operate in Low-Power
mode.
3). Optionally, the C-more 6" Micro-Graphic panel can be
powered in Low-Power mode* from most AutomationDirect
PLC's RJ12 serial communications port by using a
DV-1000CBL communications cable, or a DV-1000CBL
communications cable with a FA-15HD 15-pin HD
DSub/RJ12 Adapter connected to an AutomationDirect
Pin Signal
PLC's 15-pin HD communications port (DL06, D2-250-1 &
1 Logic GND
2 not used D2-260) PLCs. See Chapter 6: PLC Communications in the
3 RXD (232C)
Hardware User Manual (EA6-USER-M) for additional
4 TXD (232C)
details.
5 Receives 5VDC
6 Logic GND
Tightening Torque
RS-232
Power supply wire connection 1.7 lb-in (0.2 Nm)
*NOTE: When the panel is powered through Port1 from a connected PLC or PC, the screen brightness
Signal Pin Signal Pin Signal
is diminished because the panel is running in Low-Power Mode. For full brightness, connect an
1 Frame GND 6 LE 11 TXD+ (422/485)
2 TXD (232C) 7 CTS (232C) 12 TXD– (422/485) external 12-24 VDC power source to the panel's power connection. Low-Power Mode should be
3 RXD (232C) 8 RTS (232C) 13 Term. Resistor
used during initial programming only. Connect an external 12-24 VDC power source when the
4 Supplies +5VDC 9 RXD+ (422/485) 14 do not use
panel is installed in its application.
5 Logic GND 10 RXD– (422/485) 15 do not use
RS-232/422/485
NOTE: Recommended DC power supply to power the C-more Micro-Graphic Panel, AutomationDirect
Part No. PSC-24-015 or PSC-24-030.
8
ccessing the C-more Micro-Graphic Panel Setup Screens
To access the Setup Menu of the panel's setup
Panel Cutout (all models)
screens, press the the BAK [F1] and ENT [F5]
Landscape cutout shown
function keys simultaneously for three (3) seconds.
6.339 +0.04
–0.00
+1
161.0
0.256 –0 0.256
0.260
[6.5] [6.5]
[6.6]
R .118 [R3]
CUTOUT
OUTLINE
+0.04
4.811 BEZEL
–0.00
122.2 +1 OUTLINE
–0
CUTOUT
From the Setup Menu, information about the panel
0.260 can be obtained, settings can be adjusted, and panel
[6.6]
functions can be tested.
Examples
BAK
SETUP MENU
1. Information >
2. Setting >
3. Test Menu > UP
4. Exit >
DWN
ENT
ENT
9
Choose C-more 6" Micro-Graphic Panel to PLC Protocols
& Cables
Cable Description
Cables used with serial Port1
AutomationDirect Productivity Series, Do-more,
CLICK, D D i i r r e e c c t t LOGIC PLC RJ-12 port, DL05, DL06,
DL105, DL205, D3-350, D4-450 & H2-WinPLC
(RS-232C)
Note: The PLC can provide 5 VDC through this cable. No external 12-24
VDC souce is required, however, screen brightness is diminished and
USB to RS-232
the alarm beep will not function.
D D i i r r e e c c t t LOGIC DL405 PLC 15-pin D-sub
Programming Cable Assembly
port, DL405
(RS-232C)
PC to Panel Programming D D i i r r e e c c t t LOGIC (VGA Style) 15-pin port,
DL06, D2-250 (250-1), D2-260
Cable Assembly
(RS-232C)
(Includes serial & USB cables)
Use with DV-1000CBL cable.
EA-MG-PGM-CBL
D D i i r r e e c c t t LOGIC PLC 15-pin D-sub port,
DL405
(RS-232C).
D D i i r r e e c c t t LOGIC PLC RJ-11 port, D3-340
Serial (RS-232C).
Cable
NOTE: For the latest list of available
PLC drivers and PLC cables go to
USB to RS232
www.automationdirect.com.
Converter
C-more 6 inch
Micro Graphic
Panel
10
Connect C-more 6" Micro-Graphic Panel to PLC
Connect the serial communications cable between the C more Micro-Graphic panel and the PLC. The
panel can be connected to the PLC via the panel's built-in RJ12 serial communications port (RS-232) or
15-pin serial communications port with either RS-232, RS-422 or RS-485 communications.
CLICK PLC
Supply to Panel:
1 A @ 12 - 24 VDC
(10.8 - 26.4 VDC)
R01. R01. 1 1 3 3 2 2 4 4 5 5
MODEL:EA1-S6MLW MODEL:EA1-S6MLW
INPUT:12-24V 6.5W INPUT:12-24V 6.5W R R
Date code:**** Date code:**** LISTED 7M17 7M17 LISTED 8 1
MADE IN CHINA MADE IN CHINA IND.CONT.EQ. IND.CONT.EQ.
15 9
EA1-S6MLW + serial number EA1-S6MLW + serial number
Equipment
Recommended
GND Ground
DC Supply Fuse
750 mA fast acting,
–
ADC p/n AGC-75
+
*NOTE: When the panel is powered through Port1 from a connected PLC or PC, the screen brightness
Required Wire Specification
is diminished because the panel is running in Low-Power Mode. For full brightness, connect an
Supported temperature Over 60 °C
external 12-24 VDC power source to the panel's power connection. Low-Power Mode should be
Wire Material Copper
used during initial programming only. Connect an external 12-24 VDC power source when the
Wire Size 16 - 22 AWG
panel is installed in its application.
dditional Help and Support
• For product support, specifications, and installation troubleshooting, a Hardware User Manual can be downloaded from
the On-line Documentation area of the utomationDirect web site or purchased through the utomationDirect Sales
team @ 1-800-633-0405 as part number EA1-MG6-USER-M.
• For software programming help, refer to the C-more Micro-Graphic Programming Software on-line embedded help.
• Refer to demos of the product at: www.CmoreMicro.com/software/software_demo.html
• For additional technical support and questions, call our Technical Support team @ 1-800-633-0405 or 770-844-4200.
Setup Menu Menu flow Chart
1. Information 1. Memory
2. Protocol
3. Extensions
4. Versions
2. Setting 1. LCD Contrast
2. Backlight
3. Beep
4. Calibration
5. Clear User Memory
6. Reset to Factory Default
7. Hourglass
BAK
8. Rotation
MEMORY
Total:
1835008 Bytes 3. Test Menu 1. Serial Port1 – Loop Back Test
Usage:
26206 Bytes
Free:
1808802 Bytes
2. Serial Port2 – Loop Back Test
3. PLC Enquiry Test
4. Buzzer Test
5. Touch Panel Test
Do you want to exit from System Screen?
4. Exit
No[F1] / Yes[F5]
PLC Drivers
Serial - port1 or port2 Serial - port2 only
AutomationDirect Productivity3000 Allen-Bradley DF1 Full Duplex
AutomationDirect CLICK Allen-Bradley DF1 Half Duplex
AuomationDirect Do-more Allen-Bradley PLC5 DF1
AutomationDirect K-sequence Allen-Bradley DH485
AutomationDirect DirectNET GE SNPX (90/30, 90/70, Micro 90, VersaMax Micro)
AutomationDirect SOLO Mitsubishi FX
AutomationDirect GS Drives Mitsubishi Q and QnA
AutomationDirect Modbus Omron Host Link (C200 Adapter, C500)
Modicon Modbus RTU Omron FINS Serial (CJ1, CS1)
Entivity Modbus RTU Siemens PPI (S7-200 CPU)
AutomationDirect SOLO Temperature Controller
AutomationDirect GS Drives
Cable Part No. Cable Description Cable Part No.
Cables used with serial Port2
AutomationDirect Productivity Series Do-more,
CLICK, D D i i r r e e c c t t LOGIC PLC RJ-12 port, DL05, DL06,
DV-1000CBL EA-2CBL
DL105, DL205, D3-350, D4-450 & H2-WinPLC
(RS-232C)
D D i i r r e e c c t t LOGIC (VGA Style) 15-pin port,
EA-2CBL-1
DL06, D2-250 (250-1), D2-260
(RS-232C).
D D i i r r e e c c t t LOGIC PLC RJ-11 port, D3-340
EA-3CBL
D4-1000CBL (RS-232C).
D D i i r r e e c c t t LOGIC DL405 PLC 15-pin D-sub
EA-4CBL-1
port, DL405 (RS-232C).
D D i i r r e e c c t t LOGIC PLC 25-pin D-sub port,
FA-15HD
DL405, D3-350, DL305 DCU and all DCM' s EA-4CBL-2
(RS-232C).
Allen-Bradley MicroLogix 1000, 1100,
EA-MLOGIX-CBL
FA-CABKIT
1200 & 1500 (RS-232C)
Allen-Bradley SLC 5-03/04/05,
ControlLogix, CompactLogix, FlexLogix EA-SLC-232-CBL
OP-3CBL-1
DF1 port (RS-232C)
Allen-Bradley PLC-5 DF1 port
EA-PLC5-232-CBL
(RS-232C)
Allen-Bradley MicroLogix, SLC 5-01/02/03,
EA-DH485-CBL
DH485 port (RS-232C)
GE 90/30, 90/70, Micro 90, Versamax Micro
EA-90-30-CBL
(Port2) 15-pin D-sub port
(RS-422A)
MITSUBISHI FX Series 25-pin port
EA-MITSU-CBL
(RS-422A)
MITSUBISHI FX Series 8-pin mini-DIN
EA-MITSU-CBL-1
(RS-422A)
OMRON Host Link (C200 Adapter, C500)
EA-OMRON-CBL
(RS-232C)
C-more 6 Inch
Micro-Graphic
Panel
Port 1
DV-1000CBL
Port 1
serial cable
