Summary of Contents for wbox WBXHDD28127P4W
- Page 1 High-Resolution IR Camera User Manual WBXHDD28127P4W(G) WBXHDD287P4W(G) WBXHDB28127P4W(G) If you have any questions, please WBXHDB367P4W(G) contact your ADI salesperson. WBXHDD28121P4W(G) WBXHDD281P4W(G) WBXHDB28121P4W(G) WBXHDB361P4W(G)
- Page 2 High-Resolution IR Camera User Manual Hardware Connection Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
- Page 3 High-Resolution IR Camera Hardware Connection User Manual Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged. Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
- Page 4 High-Resolution IR Camera User Manual Hardware Connection Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.
-
Page 5: Table Of Contents
High-Resolution IR Camera Hardware Connection User Manual Contents 1 Hardware Connection ..................... 5 2 Eyeball Camera......................6 2.1 Dimensions ........................6 2.2 Device Installation ......................7 3 Bullet camera ......................10 3.1 Dimensions ........................10 3.2 Device Installation ......................11 4 Technical Specifications .................. -
Page 6: Hardware Connection
High-Resolution IR Camera User Manual Hardware Connection Hardware Connection Figure 1-1 shows the power and video cables. Figure 1-1 Power and video cables Connect the BNC connector of the power or video cable to a video signal cable and connect the other connector to a low-voltage power cable (12V DC). After installing the camera, directly connect the video cable and power cable. -
Page 7: Eyeball Camera
Figure 2-1 shows the camera dimensions of WBXHDD287P4W(G) and WBXHDD281P4W(G). Figure 2-1 Dimensions of WBXHDD287P4W(G) and WBXHDD281P4W(G) (unit: mm) Figure 2-2 shows the camera dimensions of WBXHDD28121P4W(G) and WBXHDD28127P4W(G). Figure 2-2 Dimensions of WBXHDD28121P4W(G) and WBXHDD28127P4W(G) (unit: Issue V1.0 (2018-03-20) -
Page 8: Device Installation
High-Resolution IR Camera User Manual Eyeball Camera 2.2 Device Installation Step 1 Open a package, take out the camera, unscrew the camera compression ring, and disassemble the camera, the camera components is shown in Figure 2-3. Figure 2-3 Camera components Step 2 Use the base as drill template, drill holes on the ceiling or wall, and reserve the cable entries of the video/power cables. - Page 9 High-Resolution IR Camera Eyeball Camera User Manual Figure 2-5 Dimensions of the WBXHDD28121P4W(G) and WBXHDD28127P4W(G) mounting base Step 3 Nail swell plastic buttons in to drilled holes, and fix the camera mounting base to the ceiling (or wall) by use of self-tapping screws.
- Page 10 Step 6 Adjust view angle and focal length by using an adjusting tool, as shown in Figure 2-8. ( This step is only for WBXHDD28127P4W and WBXHDD28127P4G) Figure 2-8 View angle and focal length adjustment Set the zoom and focus value in UTC page of PTZ function of DVR user interface to adjust the view angle and focal length when a Motorized lens camera is connected to the DVR (Only for WBXHDD28121P4W and WBXHDD28121P4G).
-

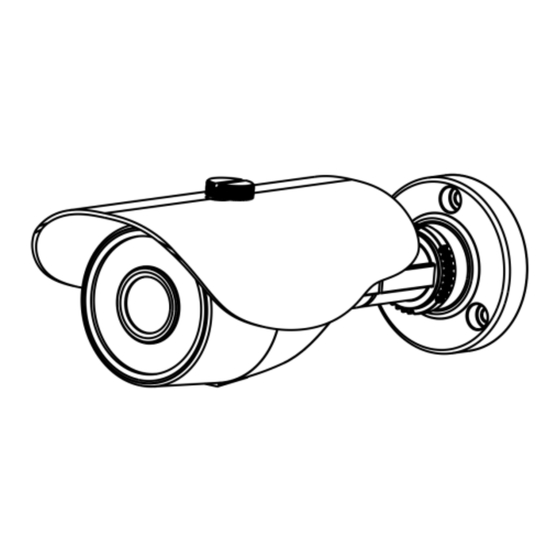

Page 11: Bullet Camera
High-Resolution IR Camera Bullet camera User Manual Bullet camera 3.1 Dimensions Figure 3-1 shows the dimensions of WBXHDB28121P4W(G) and WBXHDB28127P4W(G). Figure 3-1 dimensions of WBXHDB28121P4W(G) and WBXHDB28127P4W(G) (unit: Figure 3-2 Figure 3-3 shows the dimensions of WBXHDB367P4W(G) and WBXHDB361P4W (G). Issue V1.0 (2018-03-20) -
Page 12: Device Installation
High-Resolution IR Camera User Manual Bullet camera Figure 3-3 dimensions of WBXHDB367P4W(G) and WBXHDB361P4W (G) (unit: mm) 3.2 Device Installation Step 1 Stick the Installation location sticker on the ceiling or wall, Drill three holes based on the marks on the sticker. Drive the swell plastic buttons into the holes, as shown in Figure 3-4. - Page 13 High-Resolution IR Camera Bullet camera User Manual Figure 3-5 Installing camera Step 3 Connect the Power and video cable, as shown in Figure 3-6. Figure 3-6 Connecting cable Step 4 Loosen the locking screw with L-Hex Wrench, rotate the camera to adjust the position and image so that the camera faces the monitored area, then tighten the locking screw, as shown in Figure 3-7.
- Page 14 High-Resolution IR Camera User Manual Bullet camera Figure 3-7 Adjusting monitored area Step 5 Adjust zoom & focus using an focusing tool, as shown in Figure 3-8. ( This step is only for WBXHDB28127P4W and WBXHDB28127P4G) Figure 3-8 Adjusting zoom & focus Set the zoom and focus value in UTC page of PTZ function of DVR user interface to adjust the view angle and focal length when a Motorized lens camera is connected to the DVR (Only for WBXHDD28121P4W and WBXHDD28121P4G).
-
Page 15: Technical Specifications
High-Resolution IR Camera Technical Specifications User Manual Technical Specifications Table 4-1 lists the technical specifications of the camera. Table 4-1 Technical specifications WBXHDD287P4W WBXHDB367P4W Specifications WBXHDD287P4G WBXHDB367P4G CAMERA 1/4”CMOS Image Sensor Signal System PAL/NTSC Min. illumination 0.05Lux@(F1.2,AGC ON) ; ON); 0Lux@(IR LED ON) ≥50dB S/N Ratio Day &... - Page 16 High-Resolution IR Camera User Manual Technical Specifications WBXHDD287P4W WBXHDB367P4W Specifications WBXHDD287P4G WBXHDB367P4G Power Supply DC12V± 10% Power Consumption 3.5W(Max) Operating Temperature -25° C ~ 55° C (-13° F ~ 131° F ) Operating Humidity 0% - 85% RH Ingress Protection IP66 Material Aluminium Alloy...
- Page 17 High-Resolution IR Camera Technical Specifications User Manual WBXHDD281P4W WBXHDD28121P4W Specifications WBXHDD281P4G WBXHDD28121P4G CAMERA 1/2.9”Sony CMOS Image Sensor Signal System PAL/NTSC Min. illumination 0.01Lux@(F1.2,AGC ON) ; 0Lux@(IR LED ON) ≥50dB S/N Ratio Day & Night Shutter Speed PAL:1/50-1/50000, NTSC:1/60-1/60000 Wide Dynamic Range dWDR Digital Noise Reduction Lens...
- Page 18 High-Resolution IR Camera User Manual Technical Specifications WBXHDB361P4W WBXHDB28121P4W Specifications WBXHDB361P4G WBXHDB28121P4G CAMERA 1/2.9”Sony CMOS Image Sensor Signal System PAL/NTSC Min. illumination 0.01Lux@(F1.2,AGC ON) ; 0Lux@(IR LED ON) ≥50dB S/N Ratio Day & Night Shutter Speed PAL:1/50-1/50000, NTSC:1/60-1/60000 Wide Dynamic Range dWDR Digital Noise Reduction Lens...
- Page 19 High-Resolution IR Camera Technical Specifications User Manual WBXHDD28127P4W WBXHDB28127P4W Specifications WBXHDD28127P4G WBXHDB28127P4G CAMERA 1/4”CMOS Image Sensor Signal System PAL/NTSC Color:0.05Lux@(AGC ON) ; Color:0.01Lux@(F1.2,AGC Min. illumination B/W:0Lux@(IR LED ON) ON) ; B/W:0Lux@(IR LED ON) ≥50dB S/N Ratio Day & Night Shutter Speed...
