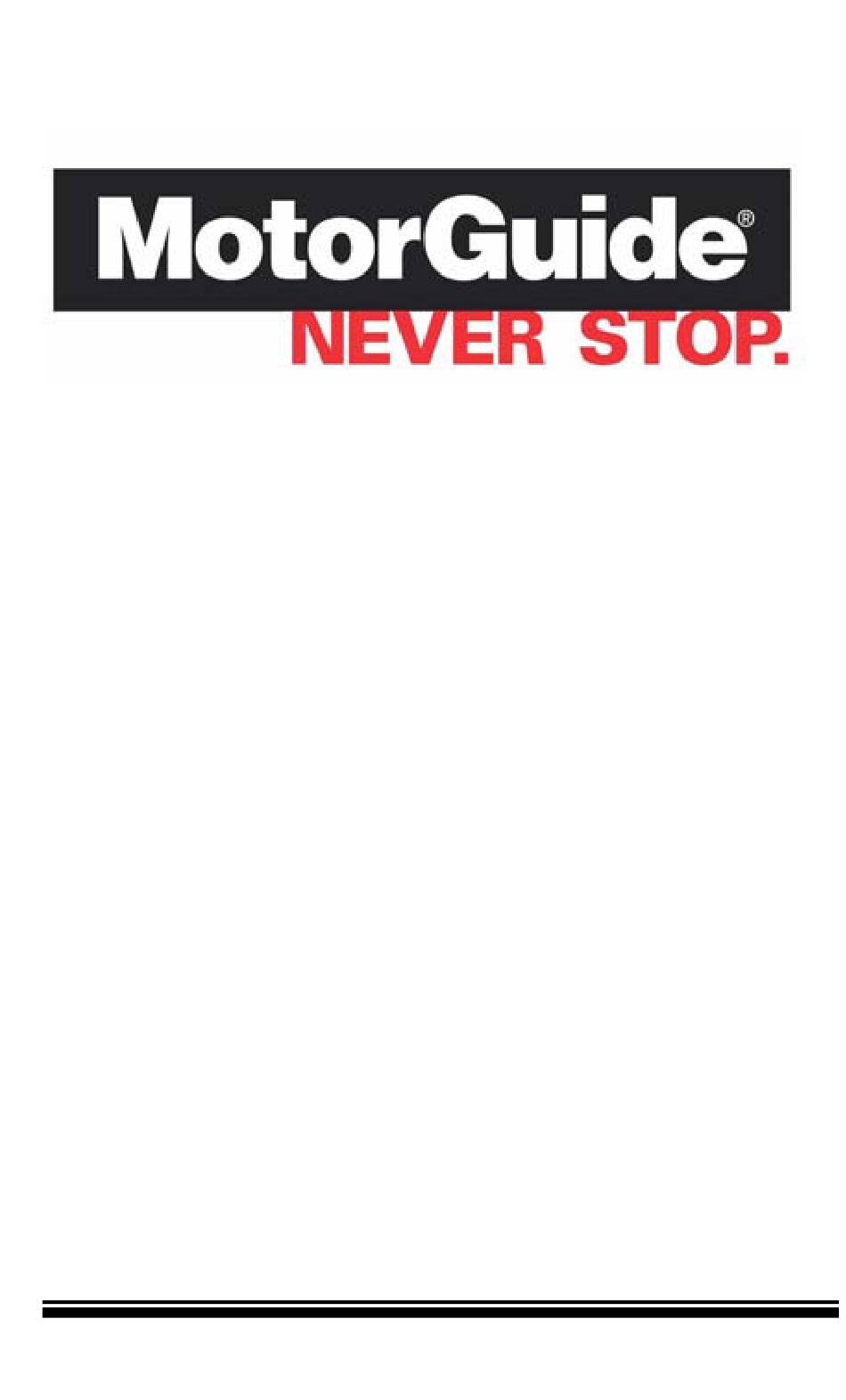

- Page 1 Digital Remote Owner’s Instruction Manual M887655...
- Page 2 This device must accept any interference received, including interference that may cause undesired operation. Thank you for purchasing this MotorGuide product! WARNING: Modifications to this device not expressly approved by the manufacturer may invalidate the user’s right to operate this equipment".
- Page 3 Note: The remote control system works with or without the foot pedal attached. PROGRAMMING THE SERIAL NUMBER Each remote unit has a unique serial number. Up to four serial numbers (remotes) can be stored by your receiver. For your remote to respond to your commands only and not those of other boaters, you must program the serial number into your receiver.
- Page 4 each time one of the arrow buttons is pressed. Each button press steers the motor left or right one step. Holding a button down will rapidly steer the motor until it reaches a stop; once it has reached a stop, the receiver will no longer beep when you press the button.
- Page 5 not used, the initial speed is equivalent to a setting of 2 ½ on the foot-pedal. 3. Prop On/Off – turn the prop on or off by pressing the center button and it will alternate between on and off. The “on” condition is indicated by a high- pitched beep while “off”...
- Page 6 steer to the current setting of the pedal adapt to the speed setting on the speed- wheel. CAUTION When changing from the remote to the foot-pedal, speed and steering will instantly convert to the foot- pedal setting. USING THE REMOTE WHILE TRACKING WITH A PTSv MOTOR Do not use the “Left”...
-
Page 7: Remote Battery Replacement
a) Motor speed can be changed at any time using the “+” and “-“buttons on the remote. REMOTE BATTERY REPLACEMENT Use only 3V lithium type CR2032 replacement batteries. Follow these instructions to change the battery: 1. Remove the four screws on the back of the remote control. - Page 8 FOR REPAIR SERVICE Contact your nearest MotorGuide Service Dealer. See a complete listing of Service Dealers in the US and Canada at our MotorGuide web site: www.motorguide.com. Call Mercury Marine Consumer Affairs to obtain the name and location of the Service Dealer nearest you.
- Page 9 TROUBLESHOOTING – Frequently Asked Questions The receiver beeps when I press a button on the remote but nothing happens. The receiver does not have the remotes serial number programmed; refer to “Programming the Serial Number”. Programming the serial number doesn’t work.
- Page 10 until you get good reception. Check the battery in the remote as well. When I press a button nothing happens but the foot pedal still works. If the receiver was plugged into the trolling motor while the power was on it will not function, power cycle the motor to energize the receiver properly.
- Page 11 MOTORGUIDE ACCESSORY LIMITED WARRANTY (ONE YEAR) (Keep your original purchase receipt) WHAT IS COVERED MotorGuide Accessories are warranted to the original retail purchaser to be free from defects in material and/or workmanship for a period one (1) year from the date of purchase.
- Page 12 MotorGuide nor Mercury Marine is responsible for failure or damage caused by improper installation, set-up, preparation, or previous service or repair errors. HOW TO OBTAIN WARRANTY COVERAGE To obtain warranty service, the purchaser should deliver or return the unit (postage prepaid and insured) to any MotorGuide Authorized Service Dealer.
- Page 13 may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state. For Your Records: Model Number______________________________________ Serial Number______________________________________ M887655...
- Page 14 835 W. 41st Street Tulsa, Oklahoma 74107 For Service Information Contact: Mercury Marine Consumer Affairs 1-920-929-5040 www.MotorGuide.com © MotorGuide, 2004 M887655...
