Mx-TS1
24 Volt Intelligent Thermostat (with 4.3" LCD Display)
24 Volt Intelligent Thermostat
(With 4.3" LCD Display)

Description:

The Bi-Directional, intelligent thermostat uses wireless communication to provide quick and easy implementation of
energy saving HVAC controls. When the thermostat receives an "occupied" signal from a switch or sensor, the user
immediately gains full control over the HVAC settings. When the thermostat receives an "unoccupied" signal, it sets the
room back to the preset unoccupied temperature. It is designed for use with most basic gas/electric furnace/air conditioning
units, PTHP/PTAC systems, 4-pipe, or 2-pipe fan coil systems.

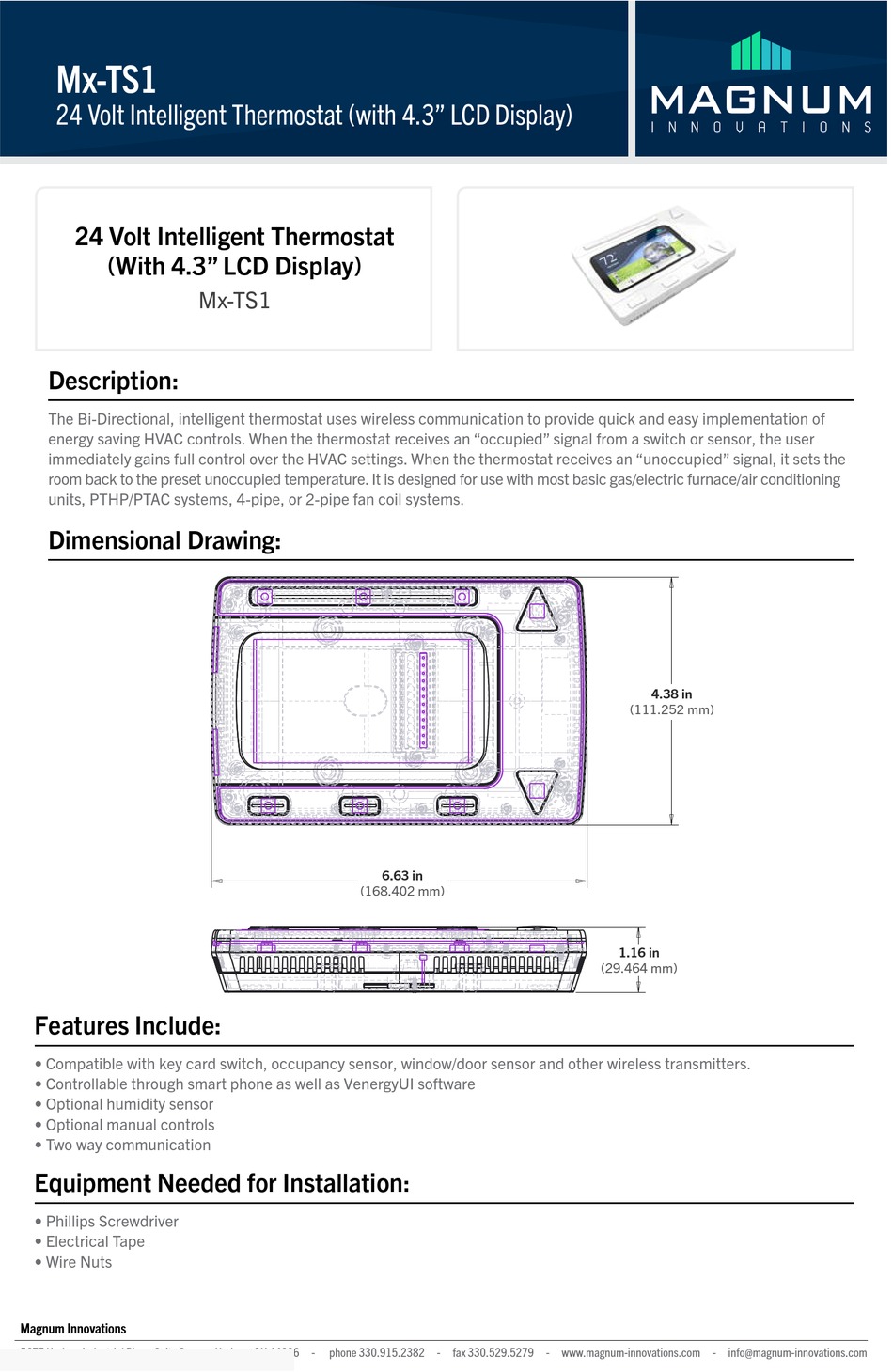

Dimensional Drawing:

Features Include:

• Compatible with key card switch, occupancy sensor, window/door sensor and other wireless transmitters.
• Controllable through smart phone as well as VenergyUI software
• Optional humidity sensor
• Optional manual controls
• Two way communication

Equipment Needed for Installation:

• Phillips Screwdriver
• Electrical Tape
• Wire Nuts
Magnum Innovations
5675 Hudson Industrial Pkwy, Suite 3 -
Mx-TS1
(168.402 mm)
Hudson, OH 44236 -
phone 330.915.2382 - fax 330.529.5279 - www.magnum-innovations.com - info@magnum-innovations.com
6.63
6.63 in
6.63
4.38
4.38 in
4.38
(111.252 mm)
1.16 in
1.16
(29.464 mm)
1.16
