NU-LIFT sm1000 Instruction Manual

Smart tow tractor

Advertisement

INSTRUCTION
MANUAL
Instruction Manual
Smart Tow Tractor
SM 1000
Note: Owner/Operator must read and understand this instruction manual before using the smart tow
tractor.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sm1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for NU-LIFT sm1000

  • Page 1 INSTRUCTION MANUAL Instruction Manual Smart Tow Tractor SM 1000 Note: Owner/Operator must read and understand this instruction manual before using the smart tow tractor.
  • Page 2 2. GERNERAL SPECIFICATION Model Driver Pull power Battery Controller Charger SM1000 DC motor 24v,300W 1000kg 2*12V/18Ah 24V/3A ATTACH HOOK TO MAINFRAME 3.1) Loosen and remove the setting Washer 8,Spring washer 8 and screw M8*25 (No.3,No.4,No.5,fig.1) 3.2) Put the joint plate under the mainframe and hook above the mainframe 3.3) Insert the washer 8,spring washer 8 and screw M8*25 ,Adjust hook height to appropriate position for moving...
  • Page 3 INSTRUCTION MANUAL Descreption Quantity Joint plate Mainframe Washer 8 Spring washer 8 Screw M8X25 Hook unit Fig 1 4. DRIVING SMART TOW TRACTOR 1) Speed regulator (No.4 , fig 2) Speed and acceleration are freely programmable. To operate the smart tow tractor moving forward or back ward ,turn the butterfly speed knob clockwise or counter clockwise gently and smoothly .
  • Page 4 INSTRUCTION MANUAL Description Quantity Right speed knob Safety emergency switch Speed regulator Left speed knob Fig 2 Button 2) Safety emergency switch (No.2 , fig 2) The safety emergency switch prevents you from getting squeezed between the smart tow tractor and the obstacle . When you push it ,the smart tow tractor will stop.
  • Page 5 INSTRUCTION MANUAL 3) To slow down, release the butterfly speed knob 6. BATTERY (No.1) AND CHARGER STAND (No.5) The battery voltage is low, it must be recharged . Take battery out mainframe, put it on the charger stand , and the plug of charger is be inseted power socket and charge batteries .

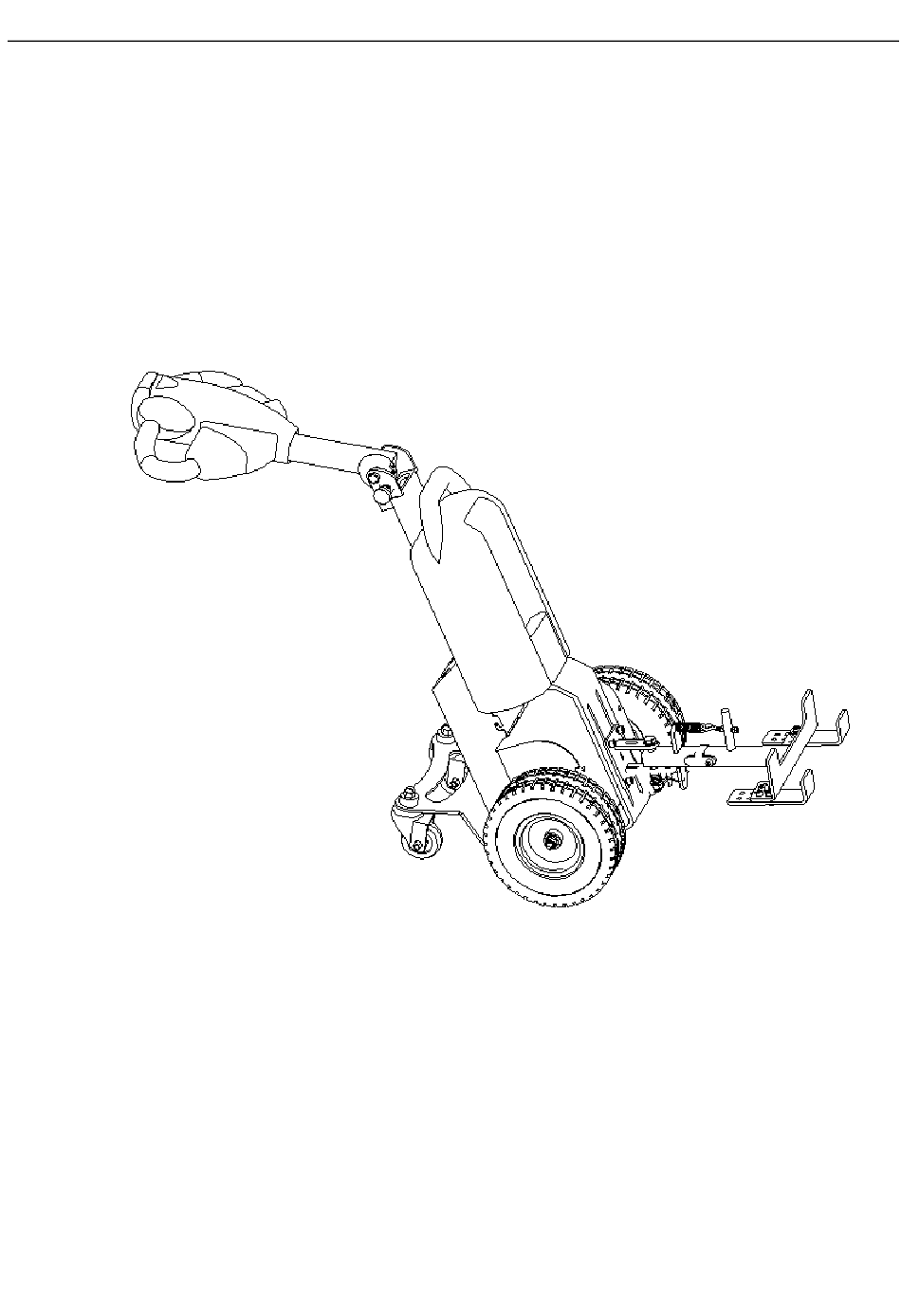

  • Page 6 INSTRUCTION MANUAL 8. EXPLODED FIGURE AND PATRS LIST Fig 4...
  • Page 7 INSTRUCTION MANUAL Description Quantity Description Quantity Speed regulator Washer 8 Speed regulator bar Lateral plate Bolt M10X25 Nut M12 Locating stud unit Spring washer 12 Mainframe Rubber wheel Controller cover Driving unit Nut M12 Battery Wash Cover Caster frame Screw M4X10 Caster Hook unit Screw M8X25...
