Summary of Contents for Bueno Electric BUE-801

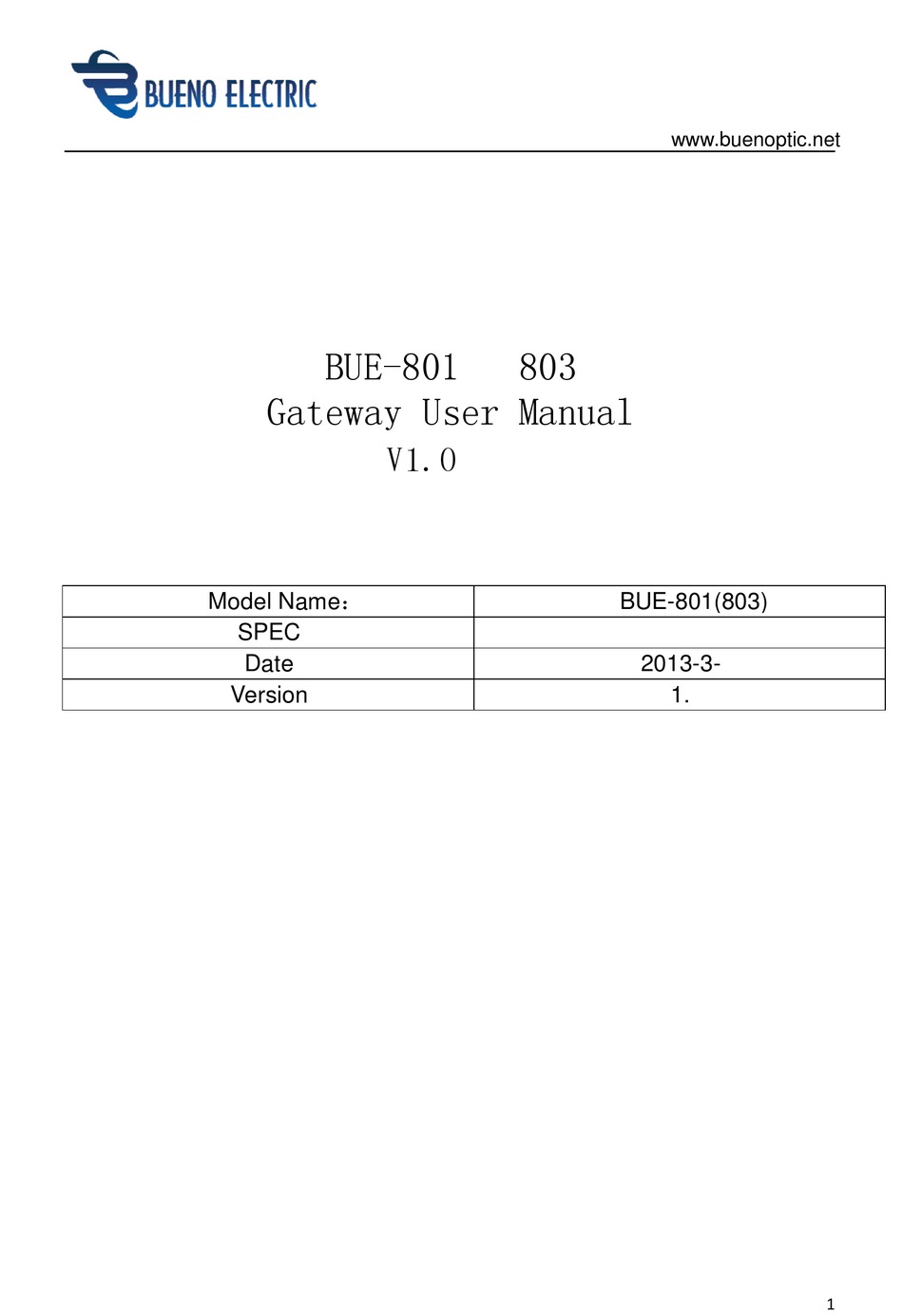

- Page 1 BUE-801 & 803 Gateway User Manual V1.0 Model Name： BUE-801(803) SPEC NO.： Date 2013-3- ： Version ：...
-
Page 2: Table Of Contents
www.buenoptic.net Content 1：Introdution.........................4 1.1 Main feature........................4 1.2 Package List....................... .5 1.3 Optional accessory....................5 1.4 Picture......................... .5 2：Hardware function......................6 2.1 Power interface......................6 2.2 Net interface......................6 2.3 SFP interface(803)....................7 2.4 GSM module antenna(803)..................7 2.5 Serial.......................... .8 2.6 C O M （RS232）...................... -
Page 3: 1：Introdution
www.buenoptic.net 1：Introduction(Hardware part) 801(803) Embedded industrial PC(communication gateway) has small size,low consumption and its embedded with Linux OS platform.It has high performance industrial grade powerPC processor inside it, which is 128MB DDR SDRAM,128MB NAND FLASH and 8MB NorFlash.803 has the ability of processing 2 copper ethernet and 2 fiber optic ethernet simultaneously,it has 4 nos of RS232/RS485 serial interfaces,whose transmission rate can reach 115.2kbps,it has also SD card socket which can be plugged into standard industrial grade SD card,in addition,803... -
Page 4: Main Feature
www.buenoptic.net The 801 and 803 can offer various memory ways,it’s convenient for the customers to develop the self-healing function and system redundancy functions. 1.1 Main Features Based on Freescale 400Mhz e300 MPC8308 400MHz CPU 16KB I-Cache，16KB D-Cache 128M SDRAM，128M NAND Flash，8MB Nor Flash 1xSD socket，support up to 32GB(803) 2x10/100/1000MBps RJ45 Ethernet port 2x1310 Multi mode 100MBps SFP Fiber Optic interface (803) - Page 5 www.buenoptic.net 1.2 Packing list 801（803)Embedded PC(Communication gateway) (803) with GSM antenna User Manual 1.3 Optional parts RJ45-DB9 Debug serial cable DIN mount bracket 1.4 Product photo...
-
Page 6: Power Interface
www.buenoptic.net 2.Hardware 2.1 Power Interface or 9-48VAC ，3-4 pins are relay contact Power supply has no”+” or “-”, 9-48VDC alarm for power ， they are off when normal work ， short circuit when there is no power. 号 义 Power input 1 Power input 1 Relay contact+ Relay contact-... - Page 7 www.buenoptic.net 2.3 SFP Fiber Optic Interface(803) 803 supports 2 x 100MBps SFP multi mode fiber optic interface （ Single mode is optional） (RS232) 2.4 GSM Antenna(803) 803 has MG323 GSM module，it supports GPRS。MG323 connected with CPU via ttyS5 .
- Page 8 www.buenoptic.net 2.5 Serial Interface 801 has 4 serial ports,COM1 is serial1 6550A ，COM2-4 is serial TI16750 . （P1） Picture 号 UART1 TX UART1 RX UART1 A UART1 B UART2 TX UART2 RX UART2 A UART2 B （P2） UART3 TX UART3 RX UART3 A UART3 B UART4 TX...
- Page 9 www.buenoptic.net 2.6 Console (Debug) Port（RS232） 801 offers 1 DEBUG serial，the parameter is:115200 N 8 1 。 号 1 2.7 Reset Button The reset button is aside of Console port,press it with pin to restore the PC.
-
Page 10: 3：Led Indicator
www.buenoptic.net 3.LED Indicators 3.1 Power & Ethernet &Serial( 801/803) 号 Power Normal LED on No power Work status Customer can set up the definition of the LED Eth0 connected Eth0 Link Eth0 unconnected Eth0 transmit & Eth0 Act receive data Eth0 no data Eth1 connected Eth1 Link... - Page 11 www.buenoptic.net ttyS3 serial receiving data ttyS3 serial sending ttyS3 TX data ttyS3 serial sending data ttyS4 serial receiving ttyS4 RX data ttyS4 serial receiving data ttyS4 serial sending ttyS4 TX data ttyS4 serial sending data 3.2 Ethernet & GSM LED(803) 明...
-
Page 12: 4：Operation Guide
www.buenoptic.net 4 Operation Guide Please use Serial cable connect to the serial interface and open the serial debug tool and configure : Baud rate:115200 Data bits:8 Parity:none Stop bits:1 (terminal type vt100) Power on 801(803) and see the following: 4.1 801(803) Default setting ETH0 IP address：192.168.1.254 ETH1 IP address：192.168.2.254 address ：... -
Page 13: Ttys1-4 Serial Config
www.buenoptic.net （803） User：root or user(telnet can only use user to log in) 4.2 ttyS1-4 Serial Configuration： Baud rate：9600bps Digit 8,No parity ，1 digit halt1 Flow control：No Terminal type：vt100 4.3 Power on When the 801（803）are well connected，power on it，the system will automatically start linux OS ，... -
Page 14: Serial Mode Setting
www.buenoptic.net The electrical service has the default startup 1：ftp server(vsftp) 2：ssh ftp server(openssh) 3：telnet server 4：ssh2 telnet server(openssh) 4.4 Serial Mode setting Serial mode reads via DIO and uses acc dio set serial mode to set up,the user can refer to the user.conf in/mnt/sys to revise the serial mode ， the the user wants to change the serial mode in his software,please refer to the software manual of 801/803. -
Page 15: Install Cross Compilation Tool Chain
www.buenoptic.net 4.5 Adjust the System Time The user can do the follwing: Date MMDDhhmmYYYY MM=month(01-12) DD=day(01-31) Hh=hour Mm=minute YYYY=year Hwclock -w Write the command to RTC 4.6 Install Cross Compilation Tool Chain Find a Linux OS PC and OS can be Debian,Fedora,ubuntu and so on. Use root as user to log in，copy the gcc-4.1.78-eglibc-2.5.78-1.tar.gz into the machine And use tar gcc-4.1.78-eglibc-2.5.78-1.tar.gz... -
Page 16: Inside Software List
www.buenoptic.net 4.7 Inside Software List addgroup chgrp cttyhack gzip mount run-parts stty adduser chmod date dmesg fgrep hostname mkdir umount watch chown echo getopt kill mknod netstat sync uname zcat busybox delgroup grep mktemp rmdir sleep uncompre cpio deluser egrep gunzip login more... - Page 17 www.buenoptic.net vcon devfs ifdo fig ip logre pido rmmod start-stop-daemon sysctl watchdog chvt ftpget killall microco sftp strings m tty prin cksum dpkg- ftpput minico slog xarg readlin tzselec killal xminico realpa tail th yes gencat clea getcon sort ascii-xfr f split unix2dos convert-dtsv0...
- Page 18 www.buenoptic.net iconv logname patch runscript ssh-keygen which dirname free md5sum pgrep ssh-keyscan catchsegv dos2unix ftdump install mesg pkill startx traceroute whoami chpasswd chroot crond dhcprelay ethtool fbset inetd openssl rdate rpcinfo sshd telnetd udhcpd vsftpd zdump...
- Page 19 www.buenoptic.net 5.Auxilary 5.1 Console port cable...
