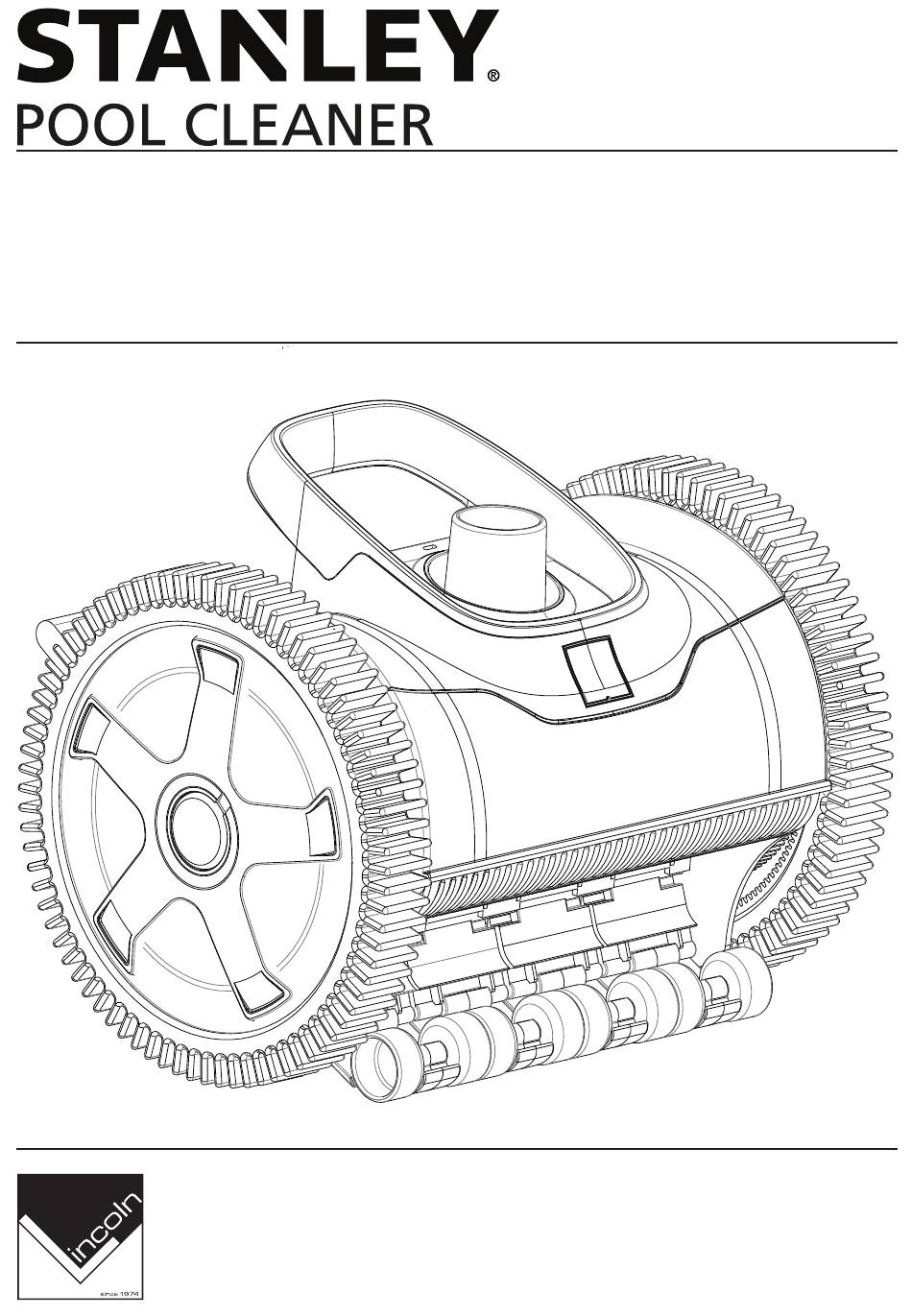

- Page 1 Owners manual 2 Wheel Suction-Side Poolcleaner Distributed in Australia and New Zealand by LINCOLN POOL EQUIPMENT www.linc.com.au...
- Page 2 FEATURES SELF ADJUSTING TURBINE VANES The cleaner has the patented self-adjusting turbines, which maximises the power from the water flow. This turbine is similar to a paddle wheel with blades that are adjustable. This feature allows the cleaner to still move at low suction and low pressure.
-
Page 3: Installing The Cleaner
PARTS 2 wheel model Installing the Cleaner STEP 1 ; preparing your pool. 1. Manually remove very large and excessive debris from pool ( ie. post storm, spring cleaning/pool opening situations). pump basket. 3. Make sure your chemical balance is correct. If not, now is the time to correct it. - Page 4 STEP 2 ; connecting the hoses. 20-25” (50-60cm) STEP 3 ; attaching the cleaner.
- Page 5 STEP 4 ; submerging the cleaner. Lower the cleaner into the water. While your pump is running, take the end of the hose with the Adjustable Regulator Valve expunge all of the air in the hose and the cleaner. push the hose down into the water until the hose is completely YOU DO NOT WANT ANY AIR TO REMAIN IN THE HOSE AND THE CLEANER!! STEP 5...
-
Page 6: Adjusting The Bypass Valve
STEP 6 ; adjusting the cleaner. ADJUSTING WHEEL RPM: For the cleaner to run optimally the revolutions per minute(RPMs) should be between 14 (Note it will still clean as low as RPM but will NOT climb walls). While the cleaner is running take it by the leader hose so that the cleaner is just below the water. - Page 7 Servicing the Cleaner Removal of Obstructions Turbine Vanes/Blades The turbine vanes have to be placed in the turbine hub in a larger oval certain direction. We use the following mnemonic the turbine vanes are like “a wave breaking” toward the front of the cleaner. round In the front of the unit the vanes are convex ( like a mountain) in the back they are concave ( like a valley ).
- Page 8 Wheel or Bearing Removal & Replacement CLICK When the unit is reassembled turn the right front wheel (looking from behind) and make sure everything turns smoothly. Skirt and Inlet Removal & Replacement Inlet Sizes: Small* Standard small pump/variable speed average pump low flow normal flow Turn the unit upside down...
-
Page 9: Troubleshooting
Troubleshooting ALWAYS TURN OFF THE SYSTEM BEFORE PERFORMING ANY REPAIRS. Problem Solution Cleaner doesn’t move or moves too slow. • Check wheel RPM. • Obstruction in the cleaner itself. If there was an obstruction make sure vanes are replaced correctly. •... -
Page 10: Warranty
Warranty The Three Year Comprehensive Warranty Hartford Pines Pty Ltd (ACN 080 687 734) trading as Lincoln Pool Equipment (www.linc.com.au) warrants to the purchaser of the PoolCleaner (the product) that if any part thereof proves to be defective in workmanship or material in normal domestic use within three (3) years from date of original purchase, such defective part will be replaced free of charge. -
Page 11: Registration Card
REGISTRATION CARD LINCOLN WARRANTY CLAIM ✂ Owners Name Address Telephone Model Number Date of Purchase Description of Fault Attach Proof of purchase...
