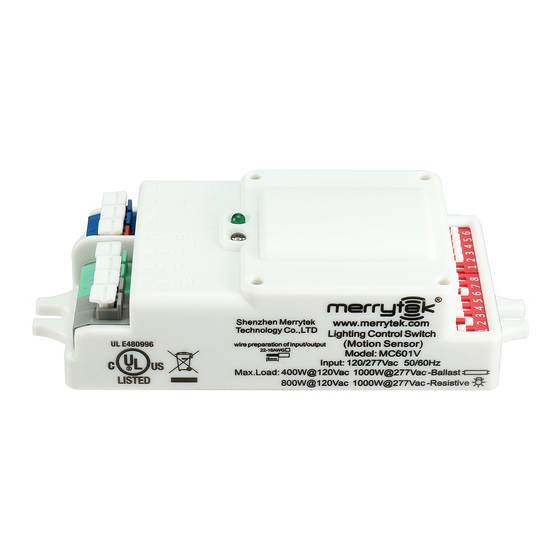

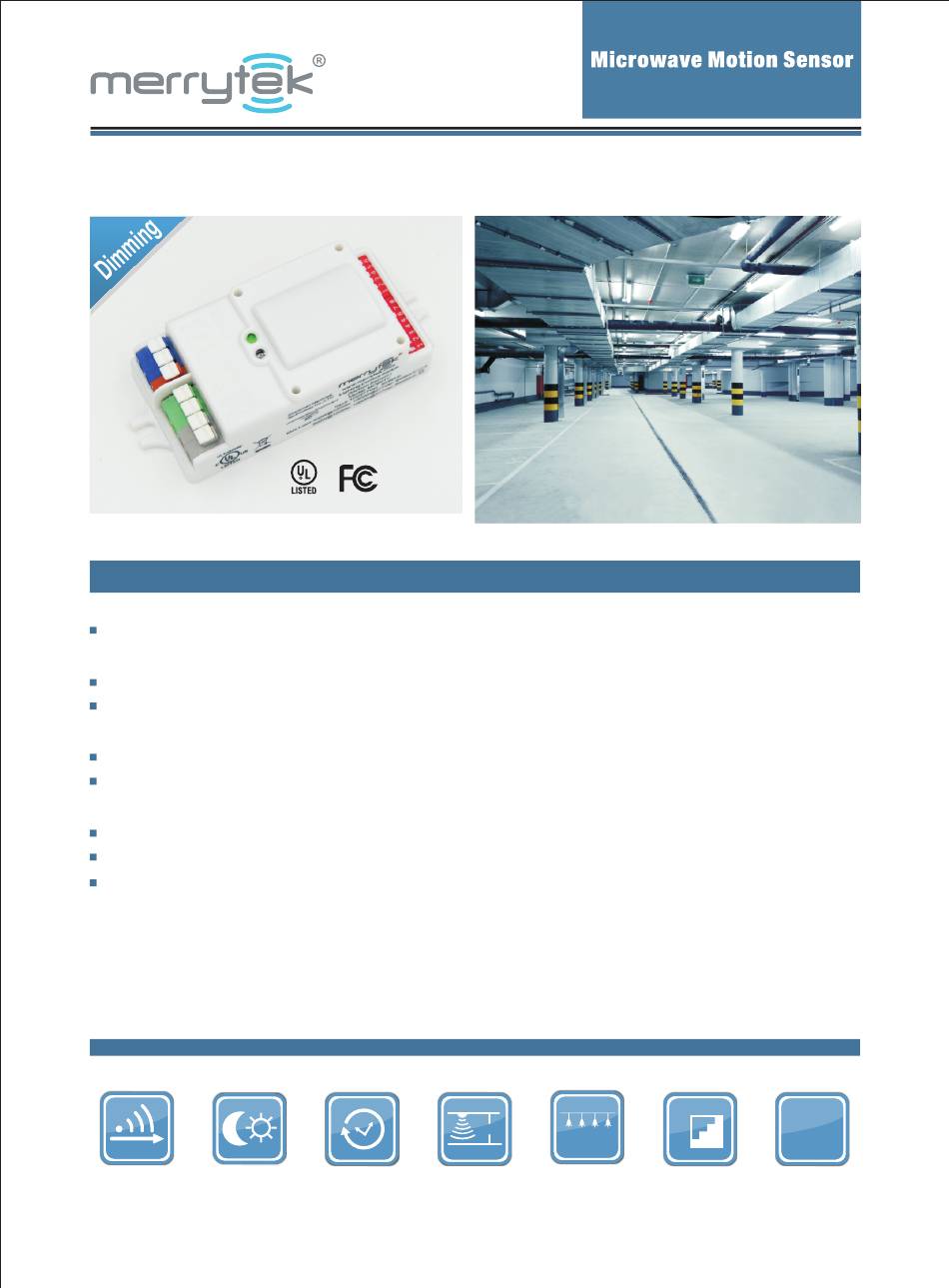

Merrytek MC601V Manual

MC601V
North America Version / Dimming Function
Introduction
Automatic switching or dimming when used in combination
with 1-10V dimmable LED drivers or ballasts.
Built-in daylight sensor.
1-10V interface can match up with Merrytek stand-alone
daylight sensor MS01 and achieve daylight harvesting.
Compact size makes it suitable to fix within most luminaires.
Detection area, time delay and daylight threshold can be
precisely set via DIP switch.
Wide detection area, range up to 16m in diameter.
Support higher mounting height 15m Max.
Optional surface mounting and base mounting
Light Sensor
Max.8M
C US
Hold Time
Mounting Height
10s~30min
15 m Max.
The MC601V innovative and active motion detectors with
HF system 5.8GHz. Motion can be detected through
plastic, glass and thin non-metal materials.
The sensors allow energy saving without compromising
comfort. When used in combination with 1-10V dimmable
LED drivers or ballasts, they can achieve 3-step dimming
function, which is perfect for use in some areas that
requires a light change notice before totally switch off.
Also, the 1-10V interface in the sensors can match up with
M e r r y t e k s t a n d - a l o n e d a y l i g h t s e n s o r M S 0 1 , a n d
implement daylight harvesting, means the lighting system
has automated controls that either turn off or dim artificial
light in response to the available daylight in the space.
As it uses the third generation Merrytek technology, normal
5.8GHz microwave module can easily reach high mounting
high up to 15m and long detection area 10m in radius.
15m
SYNC
Cluster-control
Version
5
5
50%
Years
10%
Guarantee
Automatic
5 Years
Dimming
Guarantee
