Summary of Contents for Jeven SwingControl unit

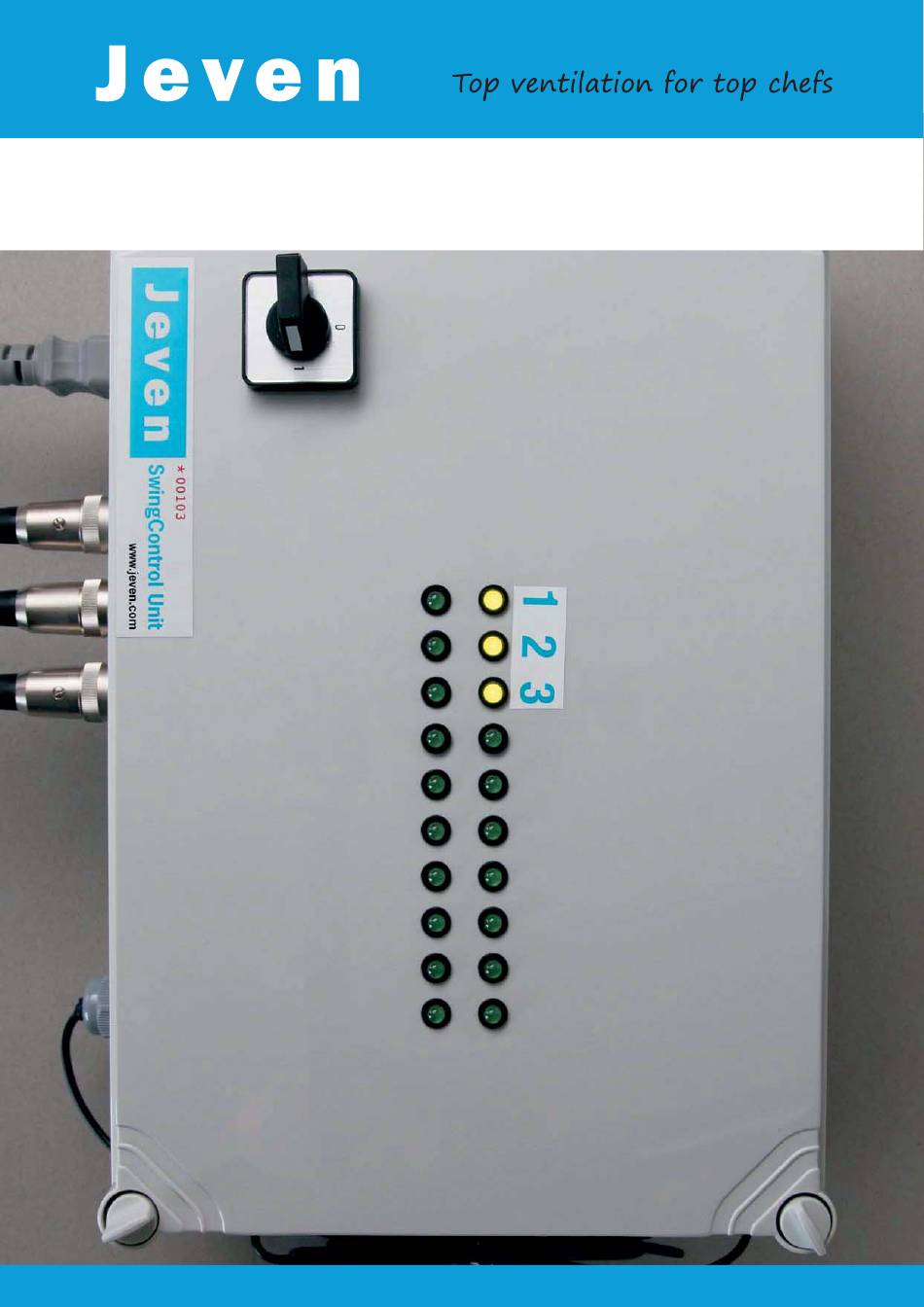

- Page 1 S w i n g C o n t r o l u n i t I n s t a l l a t i o n g u i d e WWW.JEVEN.FI...
- Page 2 PAGE 2 JEVEN Kitchen ventilation Table of Contents Delivery Dimensions and electrical installation Installation Changing the rotation speed of TurboSwing Configuration guide Automation Contact us: jeven@jeven.fi 010 231 2030 WWW.JEVEN.COM All rights reserved...
- Page 3 DELIVERY Check the delivery receipt for the consignee’s name and address. Also inspect if the package is damaged. When opening the package check the accuracy of the delivery. Any defiencies must be reported immediately to Jeven. Please note! Do not install the device in a position where it is exposed to water.
-
Page 4: Electrical Installation
Control power cables are connected to each TurboSwing Swing from which they are connected to SwingControl. One SwingControl can serve max. 20 TurboSwings. SwingControl unit is connected to the mains for continious 230 VAC Turbo 230 VAC 230 VAC constant power. - Page 5 PAGE 5 JEVEN Kitchen ventilation SwingControl Unit INSTALLATION SwingControl can be mounted on a wall or pillar, either horizontally or vertically. Cables that are on top of the hood, should be untied from cable ties and connected to SwingControl in appropriate locations.
- Page 6 PAGE 6 JEVEN Kitchen ventilation SwingControl Unit CHANGING THE ROTATION SPEED OF TURBOSWING Open the control unit cover and change the position of the dip switches. Rotation speed when switch is ”ON” position is 1100 rpm and 750 rpm when switch is ”OFF”.
- Page 7 PAGE 7 JEVEN Kitchen ventilation SwingControl Unit CONNECTING TO SWINGCONTROL SwingControl contains inbuilt tool for configuring device's LAN settings and Modbus TCP/IP port. Configuration tool can be used via standard web browser, such as Internet Explorer, Firefox or Chrome. Configuration tool is accessible in standard http port of SwingControl device.
- Page 8 PAGE 8 JEVEN Kitchen ventilation SwingControl Unit 3. Choose ”Properties” 4. In ”Local area connection properties” choose ”Internet Protocol Version 4(TCP/IPv4)” from the list and then choose ”Properties”. NOTE! If you are connecting to SwingControl device that has default factory settings, you can use the values shown in screenshots.
- Page 9 PAGE 9 JEVEN Kitchen ventilation SwingControl Unit CHANGING NETWORK SETTINGS AND MODBUS PORT From SwingControl configuration tool it is possible to change the device to either use DHCP addressing or static IP address. 1. Point your web browser to SwingControl's current IP address, by deafult: http://192.168.0.123...
- Page 10 SwingControl operates as a so-called Modbus slave device. The current status of each TurboSwing device connected to a SwingControl unit, including any potential alarms, can be read via the Modbus interface. The registers used by the Modbus interface are listed in the table below...
