FILE CART ASSEMBLY INSTRUCTIONS
B.
E.
C.

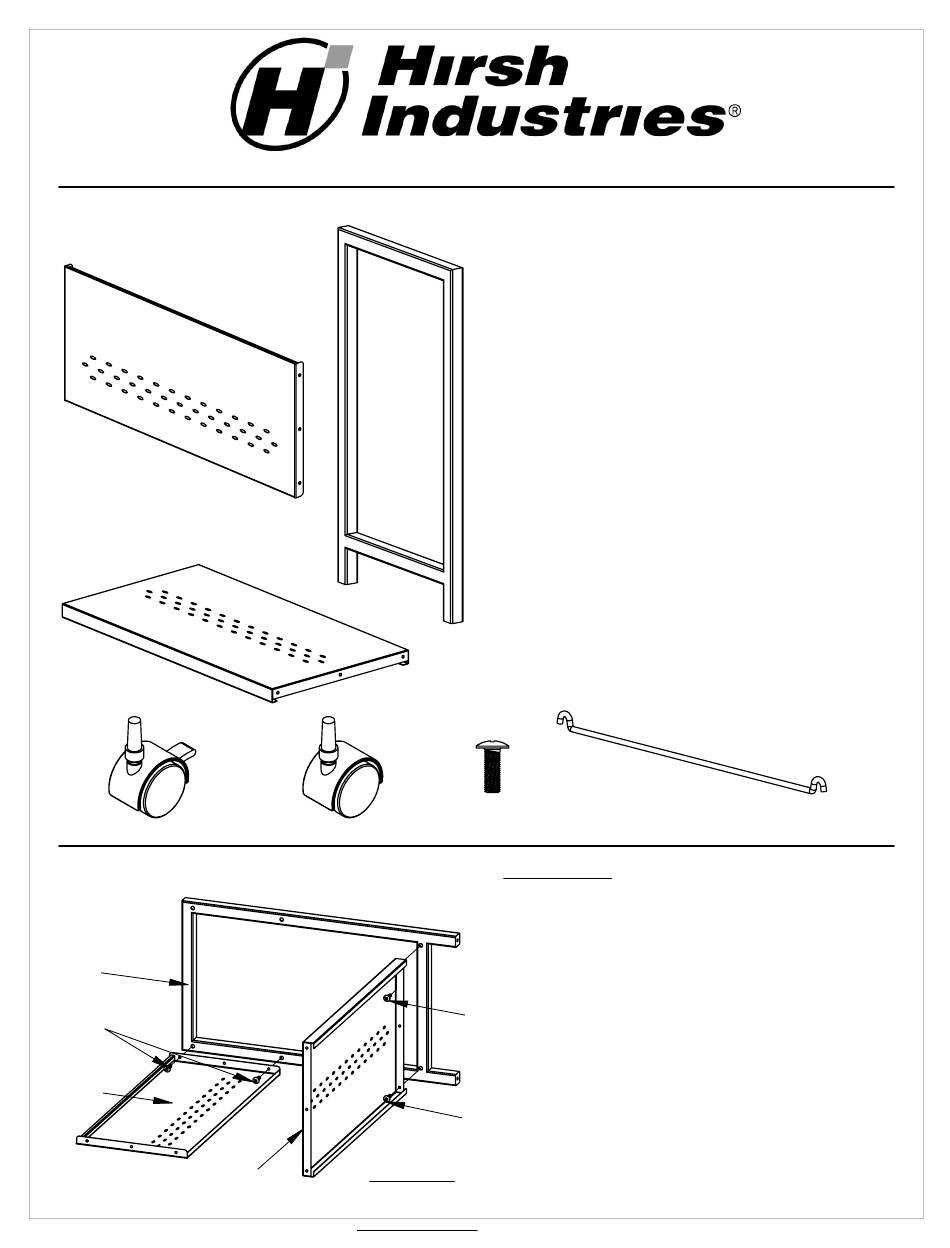

Figure A
For parts please visit www.hirshindustries.com. For assembly assistance, please call 1-800-383-7414
BEFORE YOU BEGIN
Open, identify, and count all parts prior to
assembly
A.
(2) side panels
B.
(2) frame
C.
(1) shelf
D.
(2) locking casters
E.
(2) casters
F.
(12) screws
G.
(2) file rails
NECESSARY TOOL
You will need a screwdriver for assembly.
F.
IMPORTANT!
Read all instructions before proceeding.
HOW TO ASSEMBLE
1. Lay one Side Panel (A) on a flat surface with the
inside facing upward. (The perforations are located
towards the bottom of the Side Panel.) Align the
holes on the right side of the Side Panel with the
F.
holes of one Frame (B). Insert the screws (F) through
the Side Panel (A) and tighten into the Frame (B).
(Figure A)
2. Align the holes on the right side of the Shelf (C)
with the holes in the Frame (B). Insert the screws (F)
F.
through the Shelf (C) and tighten into the Frame (B).
(Figure A)
Model: 18170 (18")
Model: 18171 (24")
G.
Made in China
Advertisement
Table of Contents
Summary of Contents for hirsh industries 18171
- Page 1 FILE CART ASSEMBLY INSTRUCTIONS Model: 18170 (18") Model: 18171 (24") BEFORE YOU BEGIN Open, identify, and count all parts prior to assembly (2) side panels (2) frame (1) shelf (2) locking casters (2) casters (12) screws (2) file rails NECESSARY TOOL You will need a screwdriver for assembly.
- Page 2 3. Align the holes of the second Frame (B) with the left side of Side Panel (A) and Shelf (C). Insert the screws (F) through the Side Panel (A) and Shelf (C) and tighten into the Frame (B). (Figure B) Figure B 4.
