Summary of Contents for 2hp Brst
- Page 1 Brst...
- Page 2 Brst is a voltage controlled burst generator and trigger delay. Upon receipt of a gate signal, Brst will output a stream of triggers. Knobs and CV inputs give the user control over speed and the number of repetitions. Whether you're generating bouncing balls, crafting IDM drum beats, or humanizing a clock signal, Brst will prove an indispensable addition to your rack.
- Page 3 Table of Contents Installation/Specifications Brst General Functions Overview...
- Page 4 12 volts. In most systems, the negative 12 volt supply line is at the bottom. The power cable should be connected to the Brst with the red band facing the front of the module.

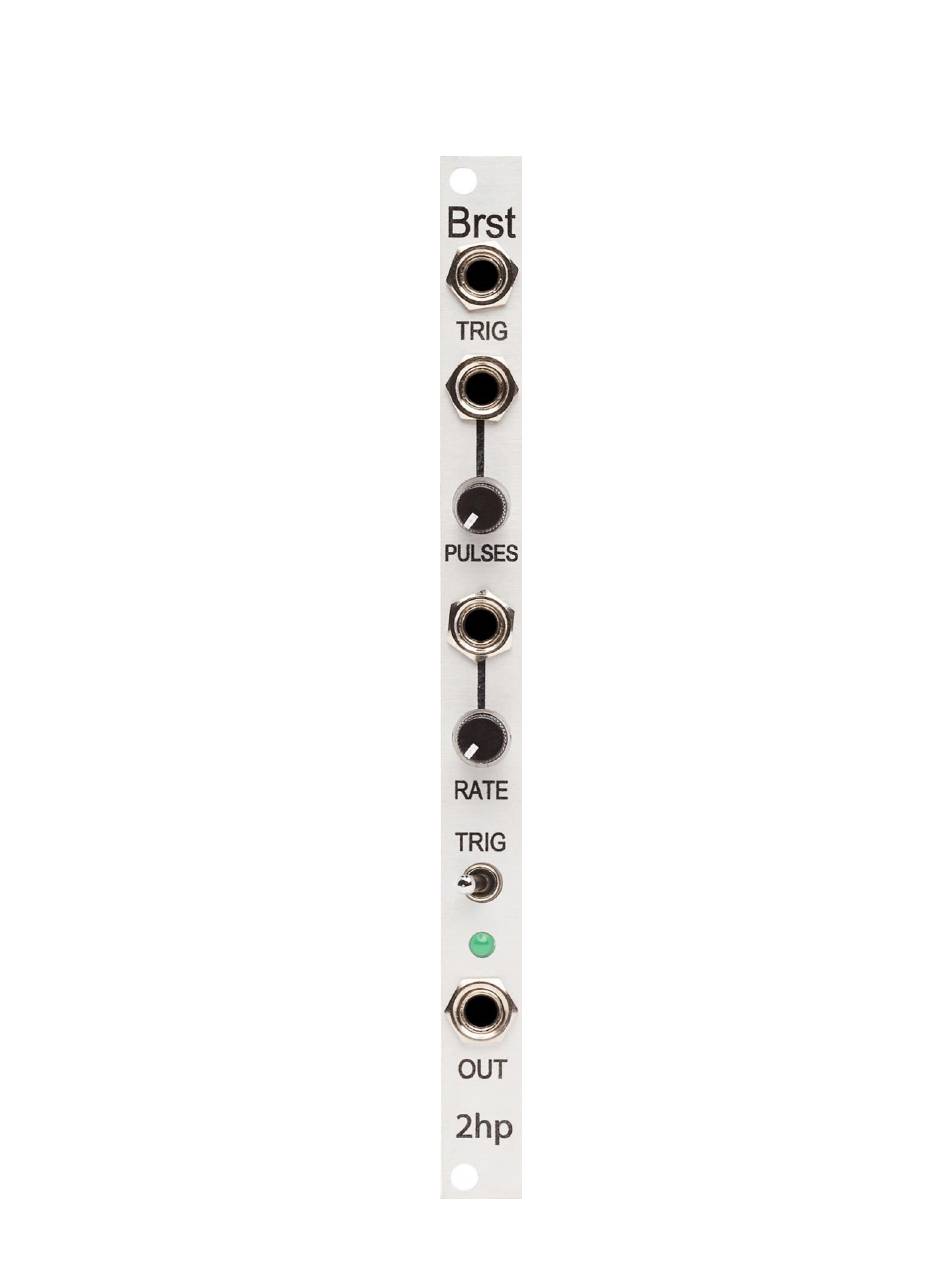

- Page 6 General Functions Overview 1. TRIG: Trigger input A stream of trigger signals will emit from OUT when a trigger or gate signal is received at the TRIG input Threshold: 2.5V 2. PULSES CV: Control voltage input for PULSES Control voltage is added to the knob position Range: 0V –...
- Page 7 6. TRIG TOGGLE: Toggle that will include or omit the initial trigger signal If the toggle is left, the initial trigger signal will be included If the toggle is right, the initial trigger signal will be omitted It important to note that if the TRIG TOGGLE is right and the PULSES knob is set to 1, one pulse will emit from OUT and will be delayed by 10ms 7.
