GENERAL DESCRIPTION
The CD-45-II Rotator consists of a bell-type rotator,
a metered control unit and the necessary mounting
hardware. The rotator is designed to mount on a
plate inside a tower or on a mast. The rotator unit
must be wired to the control unit with a 7 or 8 wire
cable. The control unit must be placed inside the
house or another protected location.
The CD-45-II now features a NEW 8 pin connector
on the rear panel of the control unit for easy
connection to your cable.
Included with this product are the following:
A. Instruction Manual
B. Rotator Unit
C. Controller Unit
D. Mounting Hardware Pack E.
INSTRUCTION MANUAL
CD-4511 / CD-4511X
has 110 VAC Controller CD-
45IIX has 220 VAC Controller
Due to the wide variety of towers available, each
installation will have different requirements. The
gauge of the cable to connect the control unit to the
rotator depends upon the distance between the
rotator and control. The longer the distance, the
larger the diameter of the wire required. Various
antennas or beams require different installation
methods. For this reason, the owner must procure
the remainder of the ,components after checking
their compatibility. In general, these will be:
A. The beam or antenna desired and a suitable
antenna mast
B. A tower or other mechanism to position the
rotator and beam for safe and effective rotation
(see CAUTIONS):
C. 7-wire cable to connect the control to the rotator
(see Section V).
D. Coaxial cable to connect the beam to the
communications equipment.
E. Appropriate guy wires as required.
F.
Ground Hardware.

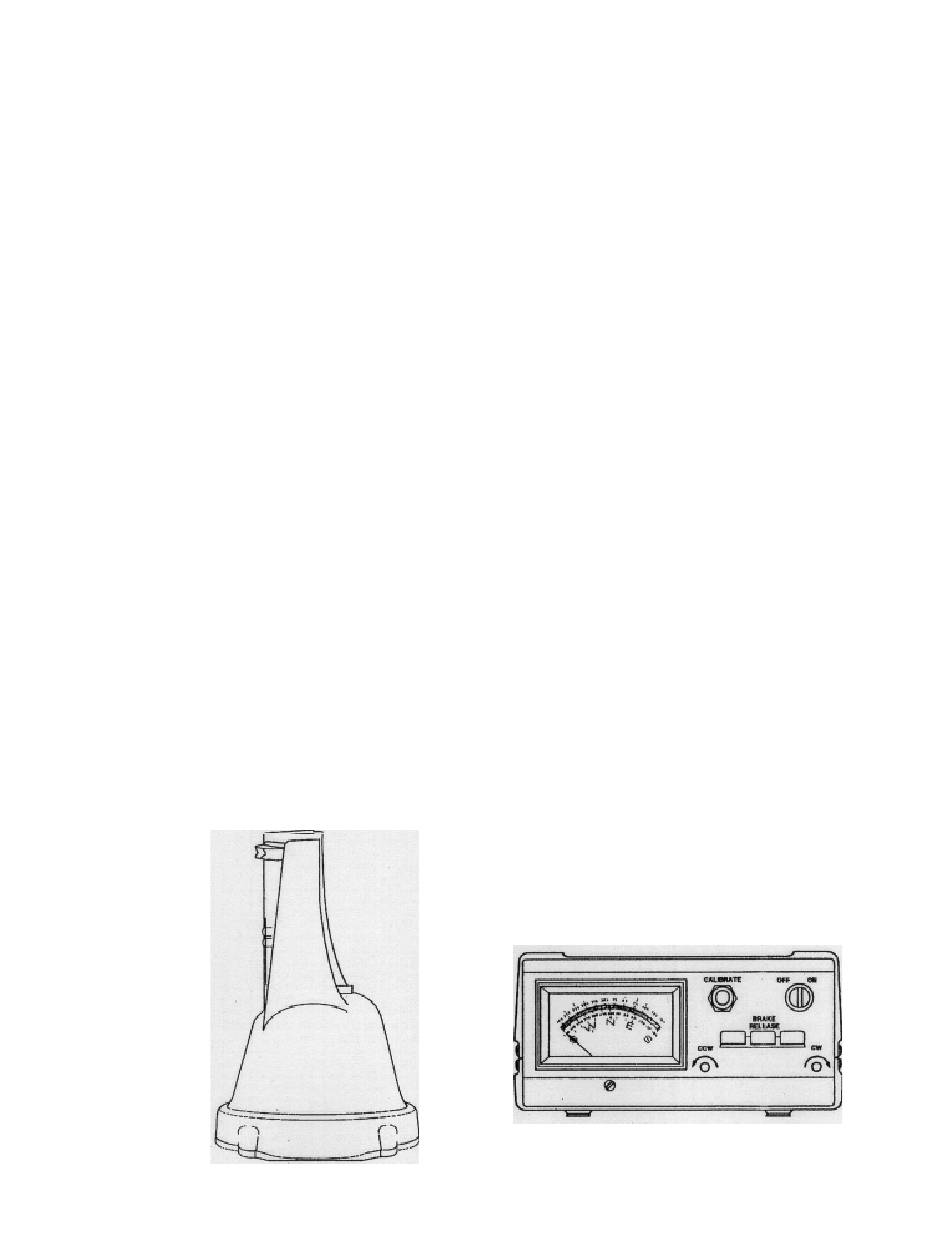

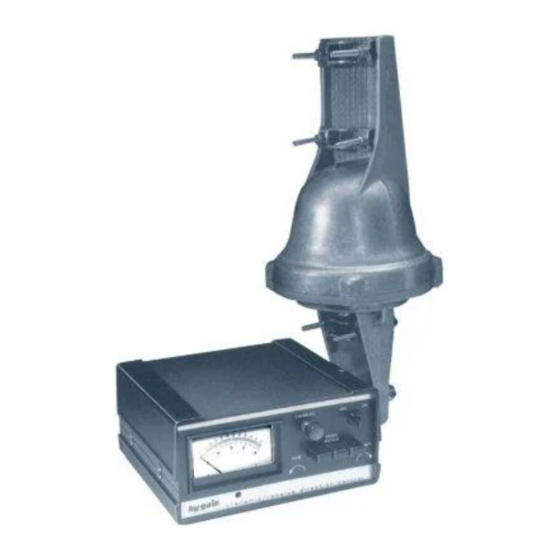

Figure 1
Rotator and Control Unit
Antenna Rotator CD-451I
Advertisement
Table of Contents
Summary of Contents for Hy-Gain CD-4511
- Page 1 CD-4511 / CD-4511X Antenna Rotator CD-451I has 110 VAC Controller CD- 308 Industrial Park Road 45IIX has 220 VAC Controller Starkville, MS 39759 USA Ph. (662) 323-9538 FAX: (662) 323-6551 INSTRUCTION MANUAL GENERAL DESCRIPTION Due to the wide variety of towers available, each The CD-45-II Rotator consists of a bell-type rotator, installation will have different requirements.
-
Page 2: Specifications
SPECIFICATIONS Input Voltage 120 VAC 50/60 Hz Optional 220 VAC 50/60 Hz Motor 24 VAC, 2.25 Amp, split phase Power Transformer 120 VAC/26 VAC 10% duty, thermal switch protected Optional 220 VAC/26 VAC 10% duty, thermal switch protected Meter Transformer 120 VAC/23 VAC Optional 220 VAC/23 VAC continuous duty... - Page 3 • Metal towers must be grounded properly at the tower location before the tower Is erected. This to minimize electrical hazard and the possibility lightning damage. Do not bury bare aluminum or stakes in the ground. Use copper ground stakes. The service wires entrance ground should be checked.
- Page 4 NOTE: The specifications call for heavier gauge If the Hy-Gain Ham IV is required, due to a larger wire on Terminal #1. Lead #1 must be heavier antenna being installed, it will only be necessary to...
- Page 5 MOUNTING INSIDE THE TOWER D. Install four 1/4"-20x 11/4" bolts in the four mounting holes in the bottom of the bell CAUTION housing. Run them in about a 1/2" and leave The rotator is designed for vertical, operation them as close to equal length as possible. with the bell shaped housing in the up position.
- Page 6 7. Tighten the four bolts carefully-to approximately the rotator, top bushing and mast are properly 6 . If 100 inch-pounds of torque. aligned, there should be unrestricted rotation through not, the rotator may have to 3 6 0 ° . If Return the rotator to the full CW "S"...
- Page 7 MAST MOUNTING 4. Connect the antenna cable to the antenna (follow manufacturer's recommendation). Make sure 1. Mount the rotator to the lower mast support and to you have enough slack for the 360° rotation. the mast. (See Figures 5 & 6.) (The antenna rotates...
- Page 8 Figure 6 Mast Mounted Rotator Figure 7 Rotator Mounted on Tower Top Plate...
- Page 9 6. Raise the mast into position. Rotate the mast by 3. Connect the control cable to the rotator after pass- hand until the antenna director is headed North. ing it through the tower plate. Tighten the Tighten the base clamp. Line up the mast in the mounting bolts securely.
- Page 10 It will clear up to a 2 3/16" adjust the zero (CCW South) position with the diameter mast. It can be bolted to all Hy-Gain crank- screw directly under the meter to exactly South. up towers when the rotator is mounted inside the 4.
- Page 11 SOUTH CENTERED METER SCALE COVERSION Carefully slip a knife blade under each corner of The stock CD-45-II Control Unit is shipped with the the lower edge of the white meter scale and twist meter scale installed for "North" center operation; slightly until the scale clears the two small ends of rotation are at the "South"...
-
Page 12: Troubleshooting
ROTATOR CONSTRUCTION TROUBLESHOOTING (Refer to Figures 12) 1. Outer Housing: The upper mast support (Bell) Most operational difficulties with rotators are and the brake housing are cast aluminum. The traceable to broken, shorted or grounded wires upper mast support is secured to the brake usually at the terminal strips. - Page 13 IMPROPER METER INDICATION CHECKING THE CONTROL UNIT 1. Voltages with Unit Plugged In. The brake and motor operate independently of the indicating system. If the pilot light bums at proper To check the control unit, plug the line cord into brilliancy, the instrument transformer is okay and the AC power.
- Page 14 Left Limit Switch 0 ohms + leads If you are encounter technical problems and need Entire Pot Strip 500 ohms assistance, you should contact Hy-Gain Customer Service Department. Pot Arm to + End 0 to 500 ohms Pot Arm to - End...
-
Page 15: Parts List
PARTS LIST CD-45-II Control Unit Replacement Parts Item Part 5156502 Control Unit, 220VAC, complete ............1 5156500 Control Unit, 120VAC, complete ............1 5139000 Printed Circuit Board ...............1 55135200 Capacitor, 470 mfd, 50V, C-1............1 5051314 Resistor, 390 ohms, 5% 2W, R-1............. 1 5015300 Diode, Zener, VR-1................1 85759002... - Page 16 HAM IV/CD-45-II Control Unit Replacement Parts (Continued) Item Part Description Qty 506325 Bolt, Hex Head, 1/4"-20 x 3/4" ............1 567110 Lockwasher, Int. 1/4" ..............2 567120 Flatwasher, 1/4" ................2 556960 Nut, Hex, 1/4"-20................1 550029 Nut, Wing, 1/4"-20................1 710083 Holder, Bulb..................1 .567125 Lockwasher, #10 Internal..............
- Page 17 Figure 10 Control Unit-Top View Figure 11 Control Unit-Back View...
- Page 18 Figure 12 Control Unit - Front Panel CD-45-II Rotator Item Part No. Description Qty 5011300 Retainer, ball bearing ..............2 5023100 Potentiometer Assy................l -5030400 Support, upper mast (bell casting) ...........1 5030600 Ring, retaining..................1 5031300 Gear, driving ..................1 5033501 Bearings, ball .................50 5037406 Motor Assy..................
- Page 19 Figure 13 Overall View of CD-45II Rotator...
- Page 20 Figure 14 Wiring Diagram...
- Page 21 This information is believed correct, but no warranty is given or implied and no liability is assumed by Hy-Gain as to its accuracy or completeness. Changes maybe made from time to time so the user should verify all factors that may be critical. This information is not to be...
-
Page 22: Limited Warranty
Hy-Gain Warrants to the original owner of this product, if manufactured by Hy-Gain and purchased from an authorized dealer or directly from Hy-Gain to be free from defects in material and workmanship for a period of 12 months for rotator products and 24 months for antenna products from date of purchase provided the following terms of this warranty are satisfied.
