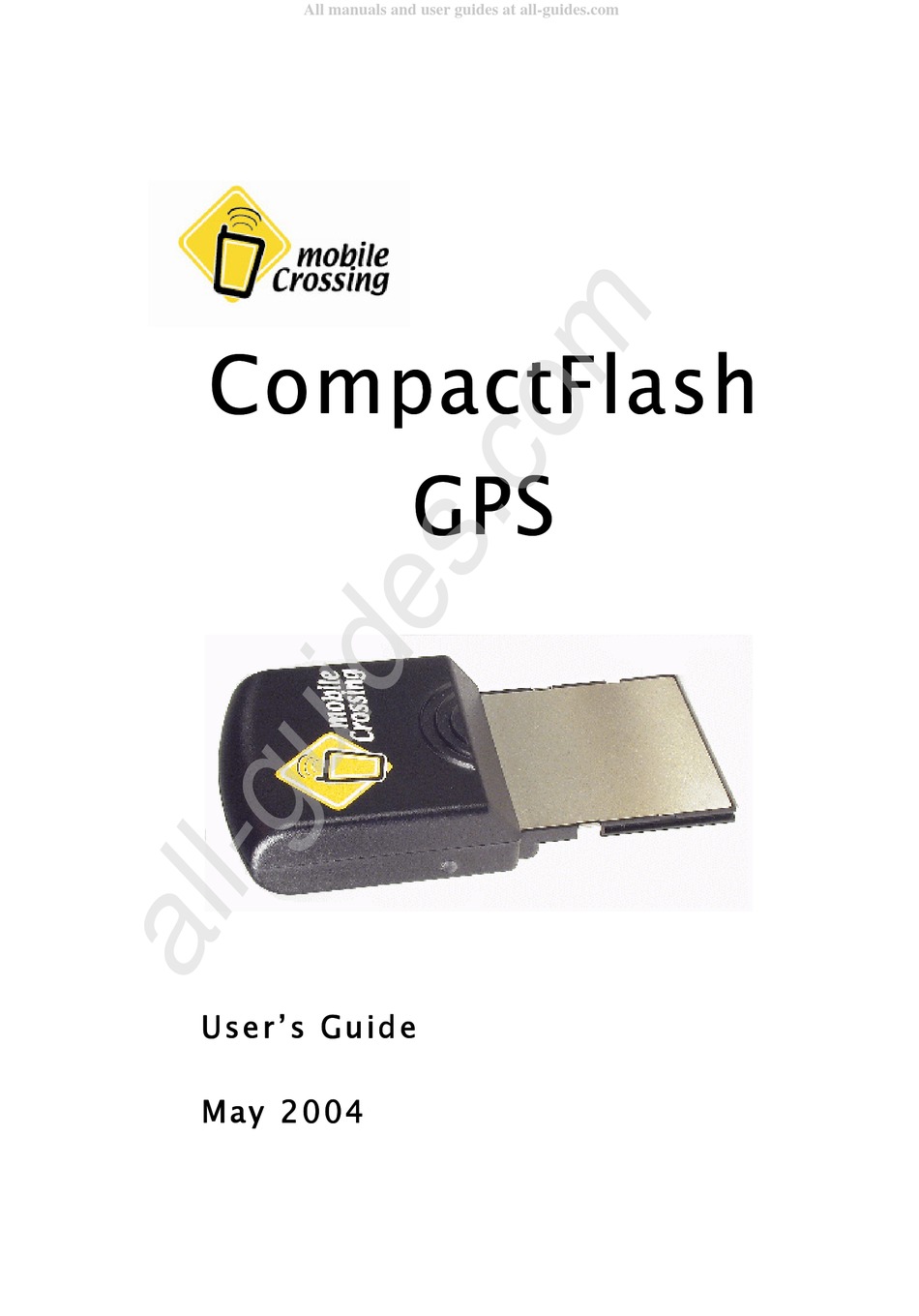

- Page 1 All manuals and user guides at all-guides.com CompactFlash CompactFlash CompactFlash CompactFlash GPS GP S S S Us er ’s G u id e Us er ’s G u id e Us er ’s G u id e Us er ’s G u id e...
-
Page 2: Table Of Contents
FCC Notice ................13 Modifications European Union Notice ............13 Safety Instructions..............14 You can find additional product and support information at the following website: http://www.mobilecrossing.com or contact: Mobile Crossing 1230 Oakmead Parkway, Suite 304 Sunnyvale, CA 94085 (408) 738-8816 (800) 605-8198 Fax 408.738.8806... -
Page 3: Trademarks
All manuals and user guides at all-guides.com © 2004 Mobile Crossing - All rights reserved Trademarks Trademarks Trademarks Trademarks CompactFlash is a trademark on SanDisk Corporation. Pocket PC is a trademark of Microsoft Corporation All other trademarks are the property of their respective owners. -
Page 4: Welcome
Welcome Welcome Welcome Thank you for your purchase of the Mobile Crossing CompactFlash GPS receiver. This GPS receiver will work world wide to compute your position wherever you are. It outputs standard NMEA sentences and will work with just about every navigation program available. The unit plugs into a CF slot in your PDA or laptop and uses power from this connection so no separate power is required. -
Page 5: Installation And Setup
All manuals and user guides at all-guides.com Installation and Setup Installation and Setup Installation and Setup Installation and Setup PDA users PDA users PDA users PDA users Plug the unit into your PDA CF slot and you’re done with the installation. -
Page 6: Laptop And Tablet Pc Users
All manuals and user guides at all-guides.com manually. The GPSInfo program can be used to establish the COM port number with its Scan Com Port command. Once the COM port number is determined it will remain the same for all programs. The Baud rate should be set to 4800. -
Page 7: Tips
All manuals and user guides at all-guides.com application can be used to perform this initialization, but it is best if the application has some sort of GPS status display. Pocket PC users will find the included GPSInfo command perfect for this task. The following steps can be used: 1. - Page 8 All manuals and user guides at all-guides.com The GPS will attempt to get a lock anytime it has power. Remove it from the PDA or turn off power to it when inside to avoid long lock times later due to the GPS giving up and thinking it has to initialize itself.
-
Page 9: Gps Information
All manuals and user guides at all-guides.com GPS Information GPS Info Info Info rmation rmation rmation GPS Information from Globalsat Technology Corporation is included to provide a troubleshooting tool for any GPS problems that might be encountered. It runs on a Pocket PC or a PC. It can be used to reset the GPS device and provides analysis data about a fix. -
Page 10: Gps Info
All manuals and user guides at all-guides.com when you have a clear sky view and are willing to wait until a new GPS fix is obtained. VTG checked with add this message to the NMEA strings of • data. You should not do this unless a program specifically needs Power Save and save significant amounts of battery power but •... - Page 11 All manuals and user guides at all-guides.com (UTC) which used to be called GMT (Greenwich Mean Time). The time is computed at longitude 0 which passes through England. California is 8 hours later than UTC (7 hours during DST). The other information shown includes the Velocity (Speed and Direction) and the Position (Latitude and Longitude) except that altitude is missing.
-
Page 12: Gps Technical Specifications
All manuals and user guides at all-guides.com GPS Technical Specifications GPS Technical Specifications GPS Technical Specifications GPS Technical Specifications Accuracy 15 meters 2D RMS Datum WGS 84 Hot Start 8 sec. Average Warm Start 38 sec. Average Cold Start 48 sec. Average Reacquisition 100 ms. -
Page 13: Regulatory Notice
Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by MOBILE CROSSING. Making modifications may void the reference authority to operate the equipment. European Union Notice... -
Page 14: Safety Instructions
All manuals and user guides at all-guides.com issued by the Commission of the European Community and if this product has telecommunication functionality, the R&TTE directive (1995/5/EC). Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations): EN55022 (CISPR 22) - Electromagnetic Interference •...
