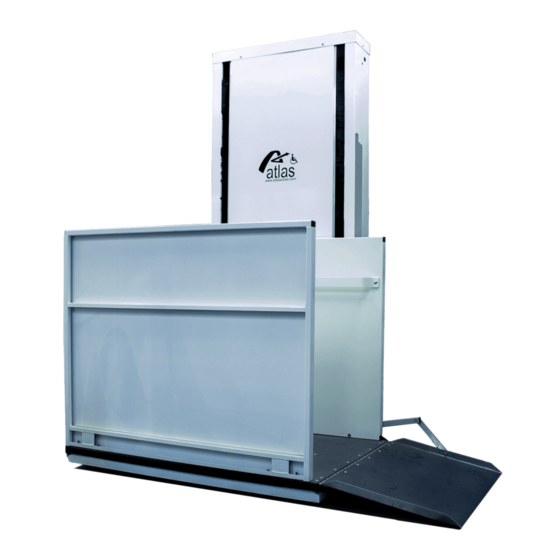

Summary of Contents for Atlas Escalateurs VISTA

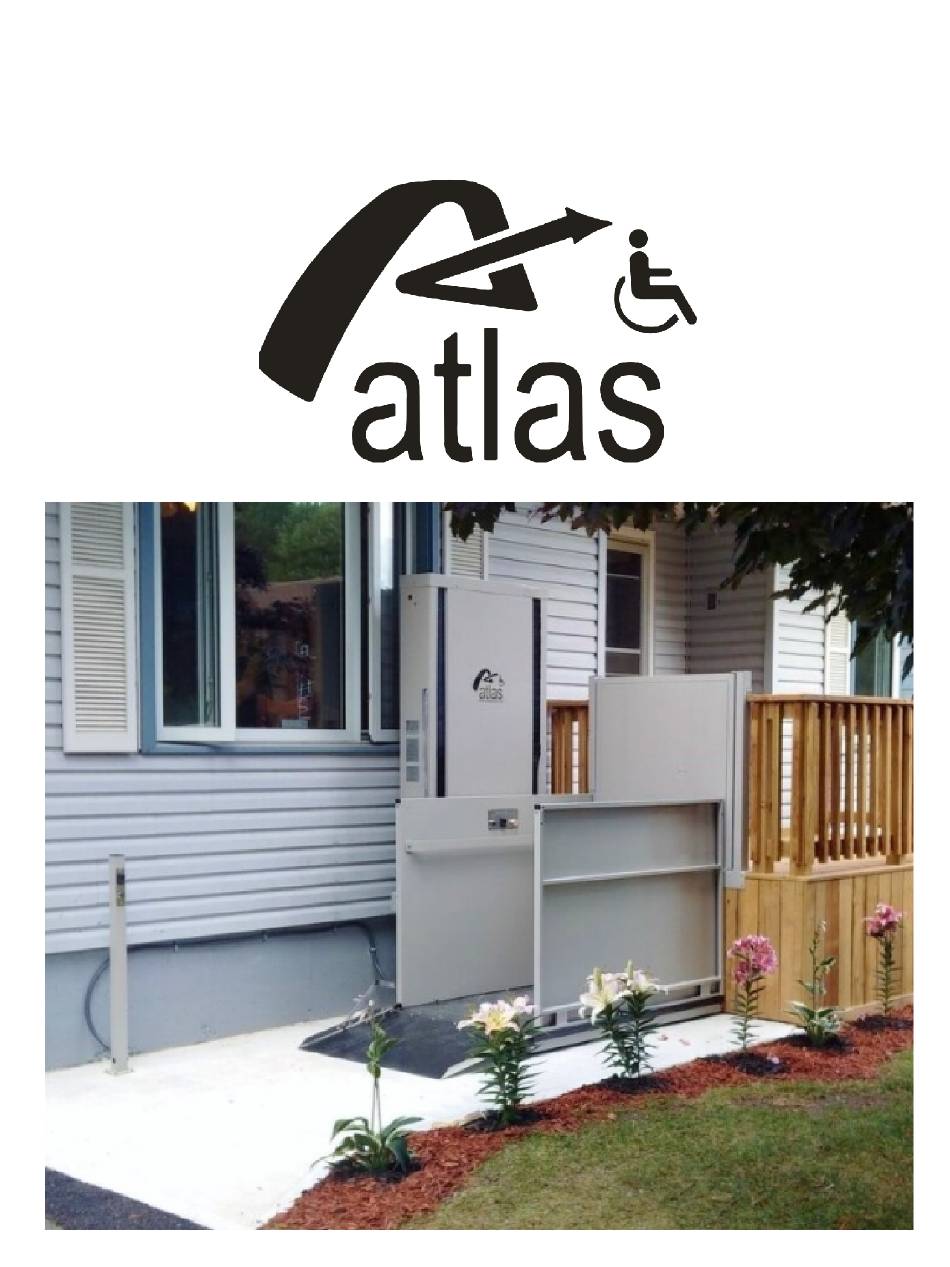

- Page 1 INSTALLATION MANUAL VISTA...
- Page 2 INSTALLATION MANUAL VISTA INSTALLATION OF THE PROTECTION WALL. (PROVIDED BY THE CONTRACTOR) DON'T FORGET THAT THE PLATFORM NEEDS TO BE ALIGNED WITH THE INTERLOCK. 16 " FOR 34'' UPPER LANDING GATE. 2 " R,375 DETAIL A 1/8'' DEPTH MAKE THE HOLE FOR THE...
- Page 3 INSTALLATION MANUAL VISTA INSTALLATION OF THE UPPER LANDING GATE. (SEE DETAIL B) ON THE LANDING FLUSH WITH THE PROTECTION WALL. DETAIL B 110V PLATE POWER: 110V-20 AMP...
- Page 4 INSTALLATION MANUAL VISTA -ADJUSTEMENTS OF THE UPPER LANDING GATE. -LEVEL THE PLATFORM.USE SHIMS IF NECESSARY. -SCREW THE SILL WITH WOOD SCREWS #12-1.5'' TO 2'' LG. (TOTAL 18 SCREWS-PROVIDED BY THE INSTALLER) USE SHIMS IF NECESSARY #12-2'' LG SCREW...
- Page 5 INSTALLATION MANUAL VISTA -MAKE A 1'' HOLE FOR THE WIRING IN THE FLOOR. (INTERLOCK SIDE) -PASS THE WIRING FROM THE GATE INTO THE PLATFORM. (SEE DETAIL A) DETAIL A 1'' HOLE IN THE FLOOR -OPTIONAL GATE OPERATOR. -IF REQUIRED FOR WIRING,MAKE A HOLE IN THE FLOOR.
- Page 6 INSTALLATION MANUAL VISTA -INSTALL THE PLATFORM AT THE RIGHT PLACE. -USE 1'' DIAMETER STEEL RODS TO MOVE IT EASILY. 1'' STEEL RODS OPTIONAL GATE OPERATOR PLATFORM GATE COMES IN OPTION WITH THE INTERLOCK.
- Page 7 INSTALLATION MANUAL VISTA UNSCREW 4 COVER BOLTS TO REMOVE THE COVER AND THE FACADE. COVER WITH THE 4 BOLTS. FACADE PLATFORM GATE WITH THE INTERLOCK IN OPTION...
- Page 8 INSTALLATION MANUAL VISTA 1-ALIGN PLATFORM WITH UPPER LANDING INTERLOCK(SEE DETAIL A) 2-PLACE UNIT 0.6''-1'' FROM THE PROTECTION WALL. 3-BRING POWER (110V) TO THE PLATFORM (SEE DETAIL C) 4-OPEN THE DISCONNECT AND PULL DE THE E-STOP. DETAIL A DETAIL B DISCONNECT (MAY BE DIFFERENT FOR...
- Page 9 INSTALLATION MANUAL VISTA DO 1 COMPLETE TRAVEL TO CHECK IF THERE ARE INTERFERENCE. CHECK THE MIN. AND MAX. CLEARANCE BETWEEN THE PLATFORM AND THE PROTECTION WALL. (SEE DETAIL A) DETAIL A 15 À 25 mm...
- Page 10 INSTALLATION MANUAL VISTA -DO THE LAST FIXINGS: -INSERT SHIMS UNDER THE PLATFORM LEGS TO LEVEL THE UNIT. (PROVIDED BY THE INSTALLER) -SCREW THE LEGS IN THE CONCRETE SLAB. (3 SCREW BY LEGS) DO THE ANCHORING HOLES IN THE SLAB AND THEN INSERT THE ANCHORS.
- Page 11 INSTALLATION MANUAL VISTA -REMOVE THE INTERLOCK COVER AND THE UPPER LANDING ONE. -CONNECT THE INTERLOCK WITH THE CALL STATION AS INDICATED IN THE ELECTRICAL DIAGRAM.(LOCATED INSIDE THE INTERLOCK) ELECTRICAL DIAGRAM...
- Page 12 INSTALLATION MANUAL VISTA OPTIONAL GATE OPERATOR: -REMOVE OPERATOR COVER AND CONNECT IT WITH THE GATE AS SHOOWN IN THE ELECTRICAL DIAGRAM.(SEE DETAIL A) -REINSTALL THE COVER ON THE GATE OPERATOR. DETAIL A GATE OPERATOR DETAIL B GATE OPERATOR MAY BE INSTALLED IN...
- Page 13 INSTALLATION MANUAL VISTA -VERTICALLY AND HORIZONTALLY ALIGN THE DOOR KEEPER WITH THE INTERLOCK. (SEE DETAIL A ) -ONCE ADJUSTED, REINTALL THE COVERS. DOOR KEEPER VERTICAL ADJUSTEMENTS. DOOR KEEPER HORIZONTAL ADJUSTEMENTS. THIS PART SHOULD ENTER AND EXIT THE INTERLOCK WITHOUT COLLISION...
- Page 14 INSTALLATION MANUAL VISTA -INSTALL AND WIRE THE CALL STATION. -SCREW THE CALL STATION IN THE CONCRETE SLAB WITH 4 TAPCONS 1/4'' X 1-3/4'' LG.(SEE DETAIL A) -THE LOWER LANDING CALL STATION WIRES MUST BE FIX ON THE GROUND OR BURY (SEE DETAIL B-C) -HARDWARE AND WIRES PROVIDED BY.
- Page 15 INSTALLATION MANUAL VISTA -ADJUST THE LEVEL SWITCHES. -MOVE UP AND DOWN TO ADJUST.(SEE DETAIL A &B) DETAIL A UPPER LANDING SWITCHES DETAIL B LOWER LANDING SWITCHES...
- Page 16 INSTALLATION MANUAL VISTA -RAISE THE PLATFORM TO THE UPPER LANDING AND INSTALL THE 2 MECHANICAL STOPS-1 PER RAIL.(OVERTRAVEL: MAX 2'' SEE DETAIL A) -TO FIX MACHANICAL STOPS :FIRST, SCREW THE BOLT UNTIL IT'S VERY THIGHT AND THEN SCREW THE BLOCKING NUT.
- Page 17 INSTALLATION MANUAL VISTA -MAKE ALL CONNECTIONS OF THE CONTROLLER AS INDICATED ON THE ELECTRICAL DIAGRAM. -ELECTRICAL DIAGRAM IS LOCATED INSIDE THE CONTROLLER (SEE DETAIL A & B) DETAIL A DETAIL B...
- Page 18 INSTALLATION MANUAL VISTA REINSTALL THE FRONT PANNEL AND THE TOP COVER. (4 SCREWS) TOP COVER FRONT PANNEL...
- Page 19 INSTALLATION MANUAL VISTA -EXECUTE YOUR WORK ACCORDING TO THE CODES AND REGULATIONS OF THE LOCAL AUTHORITIES. -TEACH THE USER A SAFE AND CORRECT USE OF THE LIFT.
- Page 20 INSTALLATION MANUAL VISTA YOU'VE DONE THE INSTALLATION OF THE VISTA VERTICAL PLATFORM LIFT. TYPICAL INSTALL TIME WITH 2 MENS IS : 5H...
