Summary of Contents for Visionstar CM-1900C

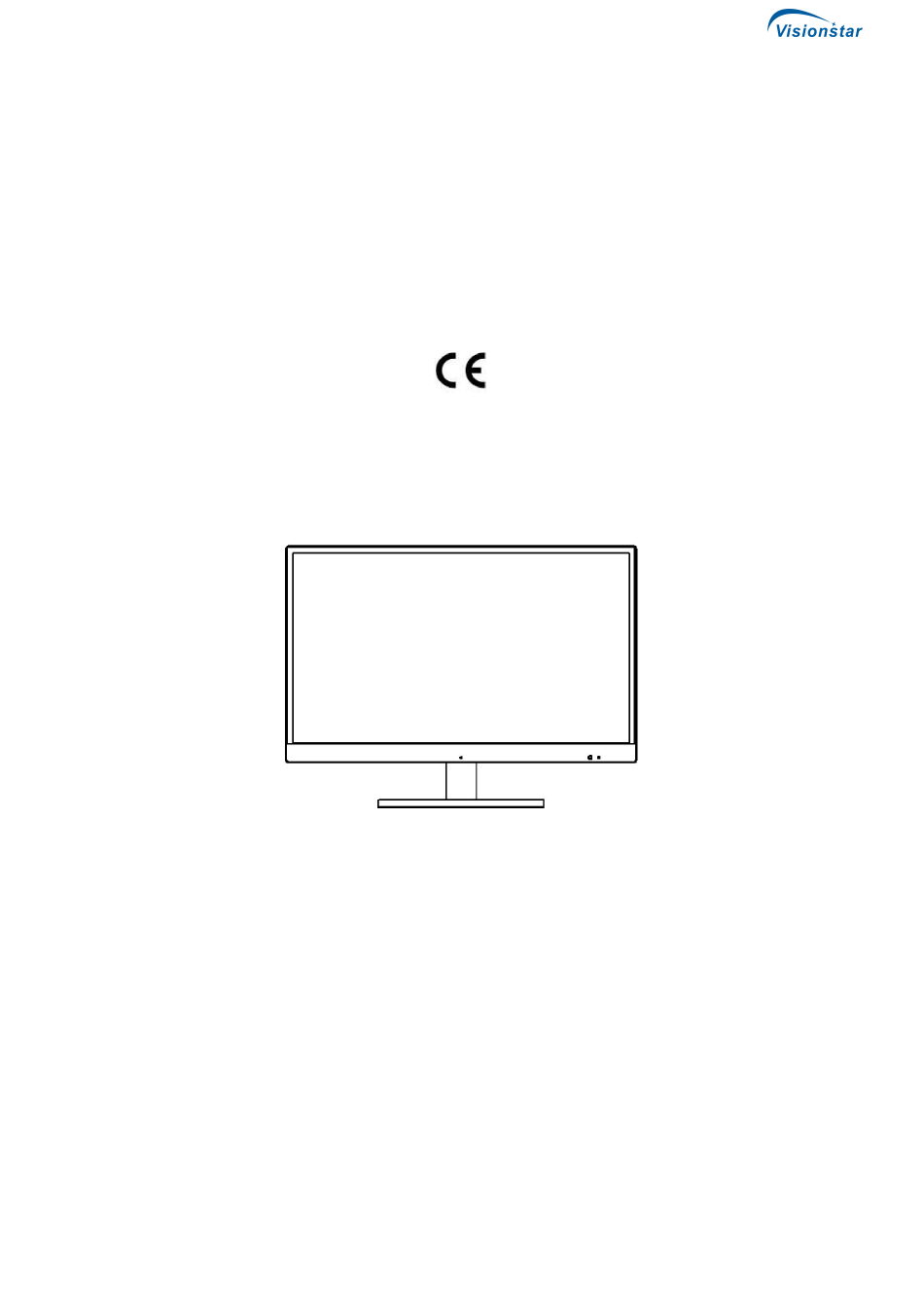

- Page 1 LCD CHART MONITOR USER MANUAL Production license: Zhe Food and Drug Administration No. 20130141 Execution standard: YZB/zhe XXXX-2014 Product registration number：Zhe Food and Drug Administration（permit）wordXXXX No.XXXXXXX Chongqing Vision Star Optical Co., Ltd www.hyvisionstar.com...
- Page 2 Please read the instructions before use This instrument is production according to of GB9706.1 general requirements for safety medical electrical equipment, the equipment must be reliable grounding. In order to guarantee the safety of the product use and prevent damage to the operator and others, or cause damage to other facilities, warning label can be seen on the products and specifications, please note and canvassed the attached file.
-
Page 3: Table Of Contents
Contents 1．Introduction........................1 1.1 Product characteristics and use range ..............4 1.2 Classify ........................4 1.3 Performance parameter.................... 5 2. Safety precautions......................5 2.1 Safety signs......................5 2.2 Safety precautions before use .................. 6 2.3 Safety precautions in the process of use..............7 2.4 Safety precautions after use ..................8 2.5 Maintain and inspect....................8 2.6 Dispose ........................9... -
Page 4: 1．Introduction
1．Introduction LCD Chart monitor display various charts and graphics for checking, is suitable for visual acuity, and other visual function check on the LCD screen, it is called LCD Chart monitor. 1.1 Product characteristics and use range a) According to Electric shock protection type : type I, external power supply device. b) The application of the equipment part: no c) The power of the equipment: single phase,net power supply:～100-240V, 60/50Hz. -
Page 5: Performance Parameter
Storage and transport conditions: Temperature: -40 - 55℃ Humidity: 80±3 - 93±3% Air pressure: 700hPa - 1060hPa(transport)、500hPa - 1060hPa(storage) Working conditions： Temperature: 5℃ - 40℃ Humidity: 80±3 - 90±3% Air pressure: 800hPa - 1060hPa Power requirement: a) Voltage: AC 100-240V、60/50HZ b) Input current: 1.3A 1.3 Performance parameters LCD: 23-IPS 1920×1080... -
Page 6: Safety Precautions Before Use
2.2 Safety precautions before use WARNING Make sure the LCD device fixed on the wall hanging or table support. If LCD chart monitor falling, it may lead to equipment failure. Notice Before using the equipment must be thoroughly understand the safety precautions and procedures. -
Page 7: Safety Precautions In The Process Of Use
1. Cannot be used in conjunction with other electronic equipment, avoid equipment operating electromagnetic interference with other electronic equipment 2. Cannot be used in the same room with other devices, including life support, and other such equipment for the treatment of patient's life and has a major impact on the result of the equipment and contain low current measurements or therapeutic apparatus. -
Page 8: Safety Precautions After Use
2.4 Safety precautions after use NOTICE • If the device will not be used for the extended period, disconnect the power cable from the wall outlet. • Occasionally clean the prongs of the power plug with a dry cloth. If dust settles between the prongs, it may collect moisture, and short circuit or fire may result. •... -
Page 9: Dispose
2.6 Dispose NOTICE Follow the local ordinances and recycling regulations regarding disposal or recycling of the components. It is recommended to commission the disposal to a designated industrial waste disposal contractor. When disposing of packing material, follow the local ordinances and recycling regulations. Chongqing Vision Star Optical Co., Ltd www.hyvisionstar.com... -
Page 10: 3．Composition Of Instrument
3．Composition of instrument 3.1 Composition of LCD chart monitor 1 Body cover of chart display Chongqing Vision Star Optical Co., Ltd www.hyvisionstar.com... -
Page 11: Accessory
2 LCD display screen for charts and pictures 3 Spot light source 4 Infrared incepting regions 5 Power indicator 6 External USB and AUDIO socket 7 Power socket zone 8 Power switch 9 Bracket fixation zone It is used for fix the stand or wall bracket. 10 Base Assemblies 11 Screen button zone 3.2 Accessory... -
Page 12: Remote Battery Installation
B. To choose the necessary position and make the corresponding size holes (same as pan head screws) on the wall, and install the spare parts to wall according the pictures. C. Connect the chart display with installed bracket on the wall bracket base, and fix with the screw at the position that picture shows, in case of the screen drop out. -
Page 13: Operation Procedure
5 Operation procedure 5.1 The remote control operation interface diagram 1. Chart selection 2. Testing function selection 3. Masking function selection 4. Direction button 5. Parameters setting（general-purpose） Chongqing Vision Star Optical Co., Ltd www.hyvisionstar.com... -
Page 14: Basic Operation
5.2 Basis operation A Starting Insert the plug, and switch on the power. B Shutdown Turn off power switch. C The operation of testing function buttons Please refer to the explanatory legend in this manual, select the buttons in the testing function region until you get the test item you need (if this button has other functions, please continue to press this button). - Page 15 chart color. Press this button of again, it returns. K Contrast Pressing the button of , it enters contrast testing mode. L ETDRS Pressing the button of ETDRS, it enters ETDRS interface to chart switching. At ETDRS mode, it can carry out single-line masking testing by button M Color blindness chart Pressing the button of , it enters color vision testing and interface to chart switching.
-
Page 16: Software Upgrade
、 setting parameter, is used as select button, the red circle button is as confirm button. Press ENTER button to continue the settings on as displayed on the screen until the icon automatically shows completed. Restart the instrument. If the user change the user type (type A or B into type)in setting, want to switch back into the General-purpose type, you need to press key for a 5 seconds, (figure in the red circle ) to enter the parameter setting interface, re-set to General-purpose... -
Page 17: Self Diagnosis And Maintenance
2. Connect the USB flash disk with the chart display 3. Restart the chart display 4. The updating will automatically start and automatically restart. When the machine start restart, take out the USB flash disk 5. Updating finished. (Note: If not take USB flash disk out from the machine, it will make the machine repeatedly update software and restart. -
Page 18: Durable Years
Chart Display 531mm×328mm×57mm(L/W/H) Net weight: 4.72kg Power supply INPUT:100-240VAC, 1.3A, 50-60Hz OUTPUT: +12VDC, 3.0A Contraindications: No 7.2 Durable years 3 years 7.3 Disclaimer Manufacturer takes responsibility of the product safety, reliability and performance if the following conditions possess. （1）Install accord with operater’s manual （2）Operation and maintenance accord with operation manual and service manual.
