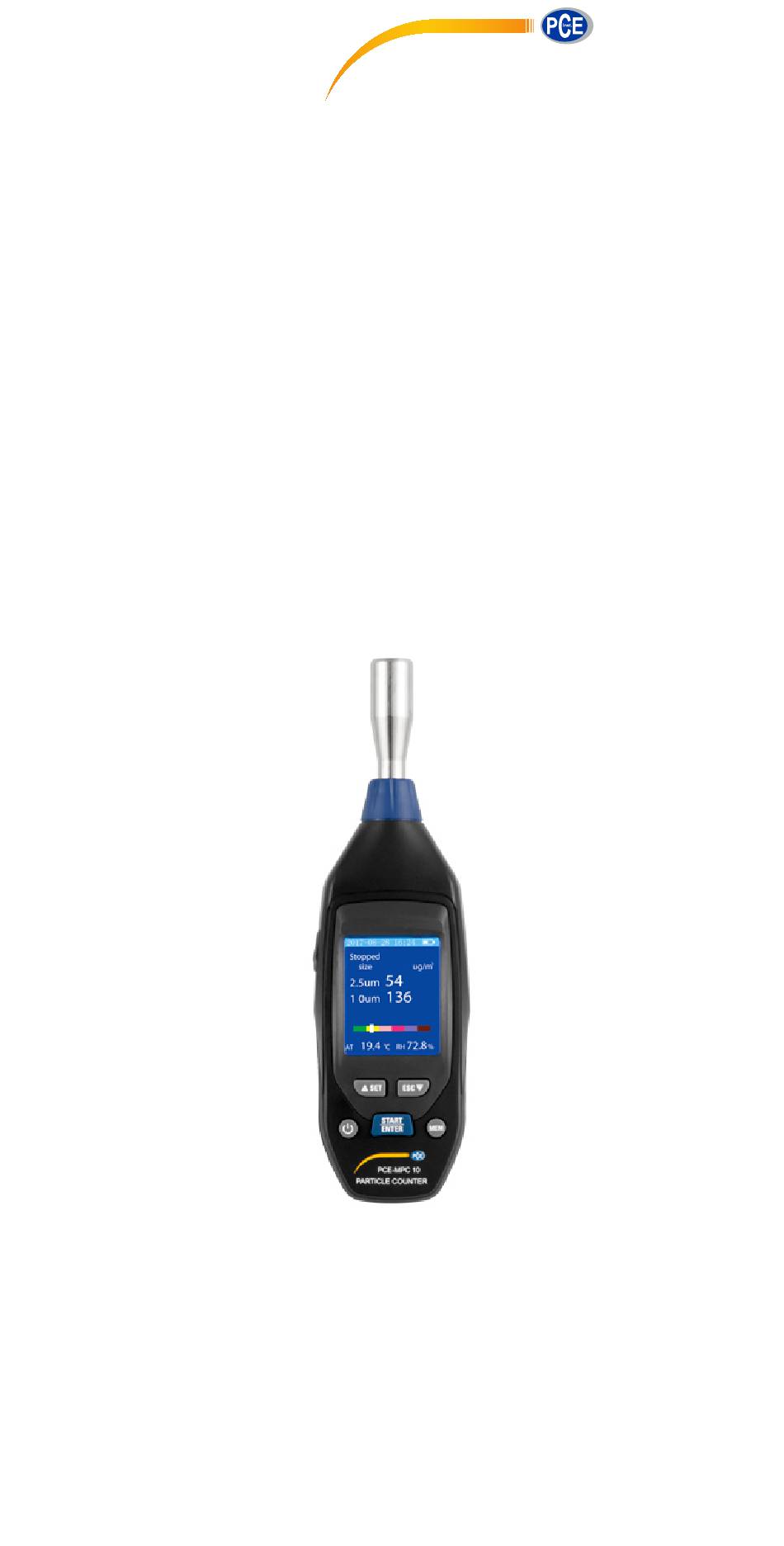

Manual
Paticle Counter
PCE-MPC 10
Please read this manual before switching the unit on.
Important safety information inside.

Advertisement

loading

  Related Manuals for PCE Health and Fitness MPC 10

No related manuals

  Summary of Contents for PCE Health and Fitness MPC 10

  • Page 1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@industrial-needs.com www.pce-instruments.com/english www.pce-instruments.com Manual Paticle Counter PCE-MPC 10 Please read this manual before switching the unit on. Important safety information inside.
  • Page 2: Table Of Contents

    Contents Page ........... 1. Introduction ..........2. Features ....3. Front Panel and Bottom Description ......... 4. Specifications ......5. Power on or Power off ......... 6. Measurement Mode ........... 7. Setup mode ........7-1. Date/Time setup ..........7-2. Alarm setup ...........
  • Page 3: Introduction

    Thank you for purchasing this Mini Particle Counter P C E - M P C 10. " The PCE-MPC 10 with 2.0 color TFT LCD display provides fast, easy and accurate readings for particle counter, particle mass concentration, Air temperature and relative humidity.
  • Page 4: Front Panel And Bottom Description

    3. Front Panel and Bottom Description 1-Particle Sensor 2-LCD Display 3-Page up and Setup button 4-Page down and ESC button 5-Power ON/OFF button 6-Measure and Enter button 7-Memory View button 8-USB charge interface 9-Air-bleed hole 10-Bracket fixing hole...
  • Page 5: Specifications

    4. Speci cations Particle Counter PCE-MPC 10 Channel 2.5um, 10um Mass Concentration PM2.5: 0 ~ 2000ug/m PM10: 0 ~ 2000ug/m Resolution 1ug/m Air Temperature Measure 0 ~ 50°C/32 ~ 122°F Air Temp Range 0.1°C/°F Resolution ±1°C/2°F Basic Accuracy 0 to 100%RH Humidity Range 0.1%RH...
  • Page 6: Power On Or Power Off

    5. Power on or Power off On the power off mode, press and hold button, until the LCD is on, then the unit will power on. On the power on mode, press and hold button, until the LCD is off, then the unit will power off.
  • Page 7: Setup Mode

    7. Setup mode Powering on the instrument, Long press button to enter into the system setup mode when not do measurement operation, as shown below: 2015-10-08 16:24 System Set Date/Time Alarm Set Sample Mode Unit( C/ F) Memory View Mass/Particle Auto Power off Press the button and the...
  • Page 8: Sample Time

    7-3.Sample Time Press button and thes button to select the sampling time, sampling time can be select by 30s,1min,2min or 5min. 2015-10-08 16:24 Sample Time 1 Min 2 Min 5 Min 7-4.Unit(°C/°F)setup Press button and the button to select the temperature unit (°C/°F).
  • Page 9: Mass/Particle Setup

    7-6.Mass/Particle setup Press button and the button to select the mode par ticle concentration and mass concentration mode. 2015-10-08 16:25 Mass/particle Mass Particle 7-7.Auto Power Off setup Press button and button to set the auto-off time. Disable: Power off function is deactivated. 3MIN: Automatically shutdown in 3 minutes without any operations.
  • Page 10: Shortcut Keys

    8. Shortcut keys Press the button to quickly enter the storage data directory view, select the directory button to view the specific data. In the main LCD interface, pressing and hold the button then press button until the sound of a buzzer delete the stored data. 9.
  • Page 11 Rev.160421...
