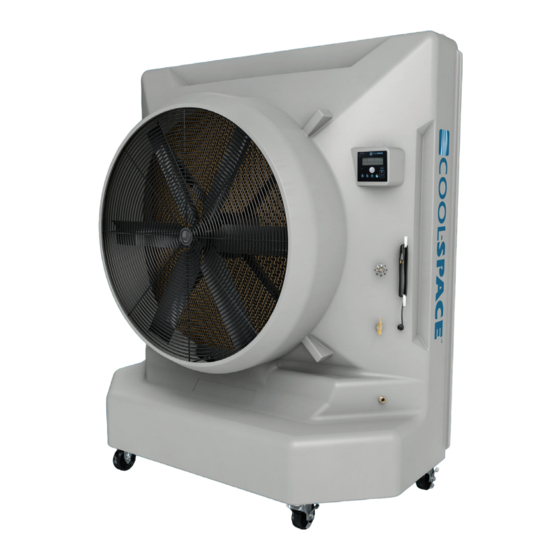

- Page 1 Operation and Maintenance Manual 120V/60HZ GLACIER AVALANCHE BLIZZARD CS5-18-VD CS6-36-1D CS6-50-VD CS5-18-VD-TB CS6-36-VD...
-
Page 3: Table Of Contents
Contents 1.0 INTRODUCTION ..........................1 2.0 UNPACKING YOUR COOL-SPACE UNIT ..................1 3.0 SET-UP OF THE COOL-SPACE UNIT.................... 1 3.1 Connecting the water supply ..........................1 3.2 Connecting the electrical supply ........................2 4.0 OPERATING PROCEDURES......................3 4.1 Filling the unit with water ..........................3 4.2 Starting the fan ..............................3 4.3 Starting the pump and adjusting the water flow .....................3 4.4 Intuitive Control Panel Operation ........................4... -
Page 4: Introduction
Signal Word Definitions DANGER indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. -
Page 5: Connecting The Electrical Supply
3.2 Connecting the electrical supply The COOL-SPACE unit should be plugged into a fused or circuit breaker protected 15 amp, 120 volt, and 60 Hz circuit. All models utilize standard 120-volt power supply. The unit should be plugged into a fused or circuit breaker protected 15 amp, 120 volt, 60 Hz circuit. -
Page 6: Operating Procedures
4.0 Operating procedures There are 3 factors to consider when determining where to place the COOL-SPACE unit. 1. Fresh air supply: The inlet side of the unit (pad side) requires a constant, uninterrupted supply of fresh air for maximum performance. A distance of 3 feet clear space to any obstructions at the rear or inlet side of the unit is recommended. -
Page 7: Intuitive Control Panel Operation
4.4 Intuitive Control Panel Operation The BLIZZARD-50 comes equipped with an intuitive control panel. -
Page 8: Maintenance And Storage
5.0 Maintenance and storage ELECTRICAL SHOCK HAZARD Disconnect the power supply before performing any service or maintenance on the unit. Failure to do so may result in serious injury or death. 5.1 Removing the cooling media to access the inside of the unit In order to perform any maintenance on internal components, the cooling pads must be removed to access the inside of the unit. -
Page 9: Storage
5.4 Storage 1. Remove the pads, as described in section 5.1 2. Clean with a soft brush and water to remove dust and debris (never use bleach) 3. Drain sump using procedure described in section 5.3 and wipe dry 4. Store the COOL-SPACE unit in a dry area. Cover if possible to prevent dust build-up. 6.0 Troubleshooting/Repair 6.1 Troubleshooting ELECTRICAL SHOCK HAZARD... - Page 10 6.1 Troubleshooting (continued) Fan System Problem Check Solution Fan won't run and makes no Power cord, extension cord, switches, Reconnect power or sound. circuit breaker, GFI ground fault. extension cord. Reset breaker. Fan motor won’t run and makes Blade in contact with shroud. Re-center blade Motor stalled (will not turn by hand).
- Page 11 6.1 Troubleshooting (continued) Water System The water distribution system consists of two (2) assemblies: o The Water Inlet Assembly Brass bulkhead fitting Float valve assembly o The Hose and Valve Assembly Spray Bar Assembly Valve Assembly Connection Hose ...
- Page 12 6.1 Troubleshooting (continued) Pump Problem Check Solution Pump motor will not run when Turn fan on to check for power. If fan doesn’t start; check switch is turned on. Is water level high enough to breaker and cord plug-in. If make the low- water cut-off fan does start;...
-
Page 13: Repair Procedures
6.2 Repair procedures Repairs should be performed by a qualified technician! ELECTRICAL SHOCK HAZARD Disconnect the power supply before performing any service or maintenance on the unit. Failure to do so may result in serious injury or death. Fan Motor Replacement GLACIER-18 (CS5-16-VD, CS5-16-VD-TB, CS5-18-VD, CS5-18-VD-TB2) 1. -
Page 14: Technical Support
6.2 Repair procedures (continued) Pump Replacement GLACIER-18 (CS5-16-VD-TB, CS5-18-VD-TB2) 1. Loosen PVC Union 2. Remove pump and PVC pipe 3. Unplug the cord from the top of the pump by removing 2 screws 4. Unscrew PVC pipe from the pump 5. -
Page 15: Optional Accessories And Replacement Parts
7.3 Optional Accessories and Replacement Parts Accessories and replacement parts are available from your local distributor or supplier or they can be found online at www.cool-space.com. Common GLACIER Replacement Parts CS-F16-VD 18'' Variable Drive Fan Assembly CS-E110 On/Off Switch (Pump) – Toggle Switch CS-E188-VD Variable Drive Controller CS-E163-2... - Page 16 315 N Madison Street Fortville, IN 46040 317-577-0417 · 800-557-5716 support@cool-space.com www.COOL-SPACE.com CS-MAN-ALL60HZ 07132018al...
