Summary of Contents for Aeware in.zone
- Page 1 TechBook All the natural purifying benefits of ozone for the water of spas and hot tubs.
-
Page 2: Table Of Contents
Table of contents in.zone warnings ..................2 overview ..................3 general specifi cations ..............5 ozone benefi ts ................6 how in.zone works ................6 installation ..................7 - schemes ................7 - check valve ...............8 - ozone injection system ...........9 - suction test .............. -
Page 3: In.zone
• In.zone must be connected to a circuit protected by a ground fault interrupter (GFCI). • Do not use in.zone if it is not connected to the spa system (venturi) ; do not directly inhale ozone coming from in.zone. • Make sure all electrical power is off before installing or servicing Ozone can cause serious problems to your health. -
Page 4: Overview

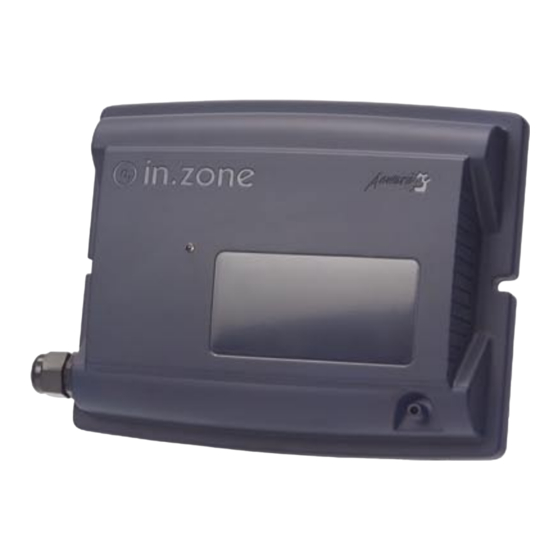

With its waterproof enclosure, its sleek and beautiful design, a life With its waterproof enclosure, its sleek and beautiful design, a life span of 20,000 hrs and no need for chip replacement, in.zone is span of 20,000 hrs and no need for chip replacement, in.zone is... - Page 5 LED lights on when lights on when lights on when ozone is being generated ozone is being generated ozone is being generated mounting groove mounting groove groove fl...
-
Page 6: General Specifi Cations
Dimensions: General: • Universal input: 108V to 250V, 50Hz to 60Hz 8.27" (210 mm) installation screws Ø center to center • Power: 14 Watts • Amperage: 120mA at 120V, 60mA at 240V • Watertight enclosure 7"... -
Page 7: Ozone Benefi Ts
30 to 50% less chlorine and bromine. To be used at its fullest potential, in.zone should work at least 3 to 4 hours per day, every 12 hours, during the spa fi ltration For the spa user, in.zone really means better quality of water which cycle. -
Page 8: Installation
Any other materials which may come in contact with its enclosure must be Note: If you choose to install in.zone on the fl oor or close to the carefully evaluated for compatibility. fl oor (not recommanded), it must be installed at least 4" above it must be installed at least 4"... -
Page 9: Check Valve
Check valve installation: Each in.zone comes with a 10’ 1⁄ 4 ” ID fl exible plastic tube and a • Check valve 2: grey side of the check valve should check valve. face the spa side since the air fl ow is coming from the clear (transparent) side 1- Cut the tube at about 1’... -
Page 10: Ozone Injection System
(the kit should include the venturi). * Manifold and Venturi can be purchased at spa dealers stores. A4- Connect in.zone so you are sure it will be activated when A1- Follow the safety instructions listed at the beginning pump is working and at its lowest speed (if it is a 2 speed of this manual. - Page 11 Use all material needed to make sure your 1⁄ 4 ” ID fl exible tube will be installed safely. B5- Connect in.zone so you are sure it will only be activated when a suction effect is created by the circulation pump.
-
Page 12: Suction Test
Remove tube nozzle from in.zone enclosure. if you can smell ozone, it is recommended to review the injection system. 2- Make sure your in.zone is not powered and start the pump you plan to use to inject the ozone. •... -
Page 13: Connectors
In.zone is available with the following connectors: • in.link: 0604-221003 IN.ZONE-IN with connector in.link • AMP: 0604-221002 IN.ZONE-AMP black nothing white green • JJ: 0604-221001 IN.ZONE-JJ with connector JJ #SS2PSA-103-02 • Nema: Call us (phone numbers on back cover) - Page 14 Advanced electronics! Water resistance! in U.S.A, available through in Canada, available through Spa Builders Systems Group Gecko Electronics Inc. 9919-100680-C www.aeware.ca 9225 Stellar Court, Corona 450 des Canetons, Quebec City (Quebec) Rev. 01/07 CA, USA 92883, 1.866.639.7274 G2E 5W6 Canada,1.800.78.GECKO...
