Uplink JAR-SW04-P60 User Manual

4 Ports PoE Ethernet Switch
User Manual
4 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet
high definition surveillance and security system. The product fully combines the characteristics
of security surveillance, provides fast packet forwarding ability and abundant backplane
bandwidth, which ensures clear image and fluent transmission. ESD and surge protection
circuit can improve product stability. The product supports one key CCTV model, with VLAN
function can restrain the network storm, protect the information security, prevent the viral
transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and
Ethernet project needs.

Application

PoE IP Camera
PoE Dome Camera
PoE IP Camera
PoE PTZ Camera

Feature

● Major ports 2pcs*100Mbps uplink Ethernet port(reserve a port to connect :
internet );4 pcs*100Mbps downlink PoE Ethernet ports every port supports MDI/MDIX
● Special function : One key CCTV model; 1～4
with uplink ports;
● Power input DC48V 57V : ～ ;
● Transmission Distance Ethernet port :
could reach 250m in CCTV model; Uplink port can reach 100m;
● Standard Meet : IEEE802.3 ,IEEE802.3u,
End-Span the spare cable can be of other use; ,
● Protection: Excellent anti thunder anti static and anti-interference ability - ,
● Appearance Delicate design and easy installation configure the anti-theft lock :
hole, guard against theft ;
●Operation Plug and Play, No Setting required. :

Notice

The transmission distance is related to the connected cable We suggest standard
Cat5e/6 network cable, so the transmission distance can up tofurthest!
1
,
downlink ports can only communicate
0～100m; the furthest transmission distance
IEEE802.3 af/at standards PoE use ,
- ;
,
.

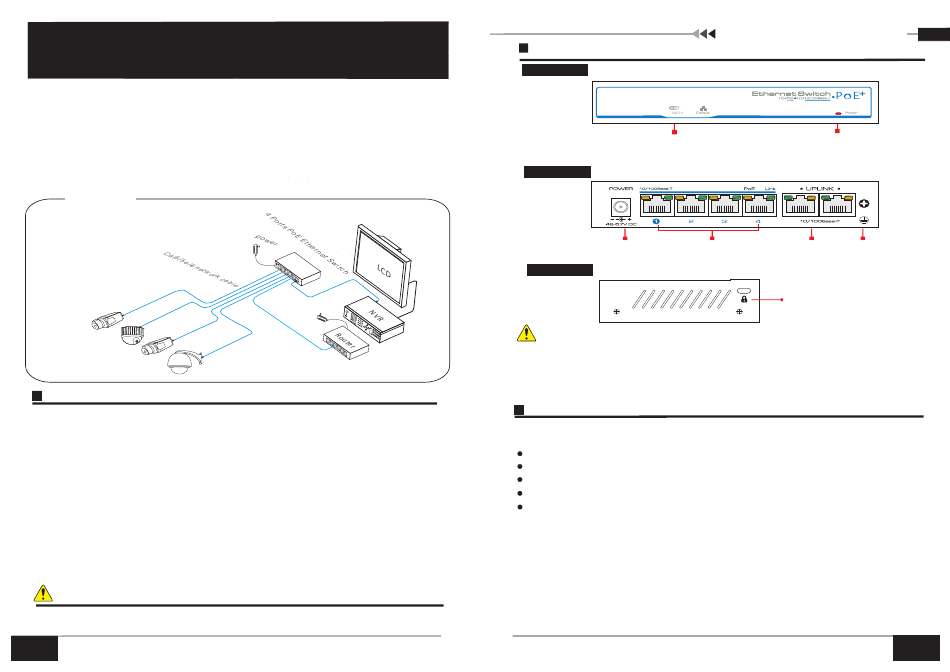

Board Diagram

Front board
VerB 1.2
Back board
Side board
Notice
1 ) Device must be connected with lightning protection grounding; otherwise protection
level will reduce; please use above No.20 wire to connect the grounding terminal.
2) Turn the dial switch for left, the equipment can enter surveillance module after providing
equipment power.

Installation steps

; Please check the following items before installation, if it is missing, please contact the
dealer .
4 ports PoE Ethernet Switch
Power adaptor
AC power cable
Accessory
User manual
Please follow the below installation steps
1) Please turn off the signal power and display device power before installation, or it will
damage the transmission equipment;
2) Use network cable connect PoE IP camera and 1～4 downlink ports of product respectively;
3) Use a network cable connect equipment uplink port and NVR or computer;
4) Connect power adapter;
5) Check if the installation is correct, equipment is in good condition, the connection is stable,
then power on for system;
6) Ensure the Ethernet equipment with power on can work properly.
4 Ports PoE Ethernet Switch
CCTV mode
Power PoE downlink Ethernet port Ground
input port Ethernet port
Power
indicated light
kensington lock
1pcs
1pcs
1pcs
1pcs
1pcs
2
