ADL Embedded Solutions ADLE3800PC Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ADLE3800PC
Manual
rev. 0.6
ADL Embedded Solutions GmbH, Eiserfelder Str. 316,
ADL Embedded Solutions Inc. 4411 Morena Blvd., Suite 101
57080 Siegen, Germany
San Diego, CA 92117-4345
P. +49 (0) 271 250 810 0 F. +49 (0) 271 250 810 20
P. +1 858 490-0597 F. +1 858 490-0599
e-mail: sales@adl-europe.com; web:
http://www.adl-europe.com
e-mail: sales@adl-usa.com; web:
http://www.adl-usa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADLE3800PC and is the answer not in the manual?

Questions and answers

Summary of Contents for ADL Embedded Solutions ADLE3800PC

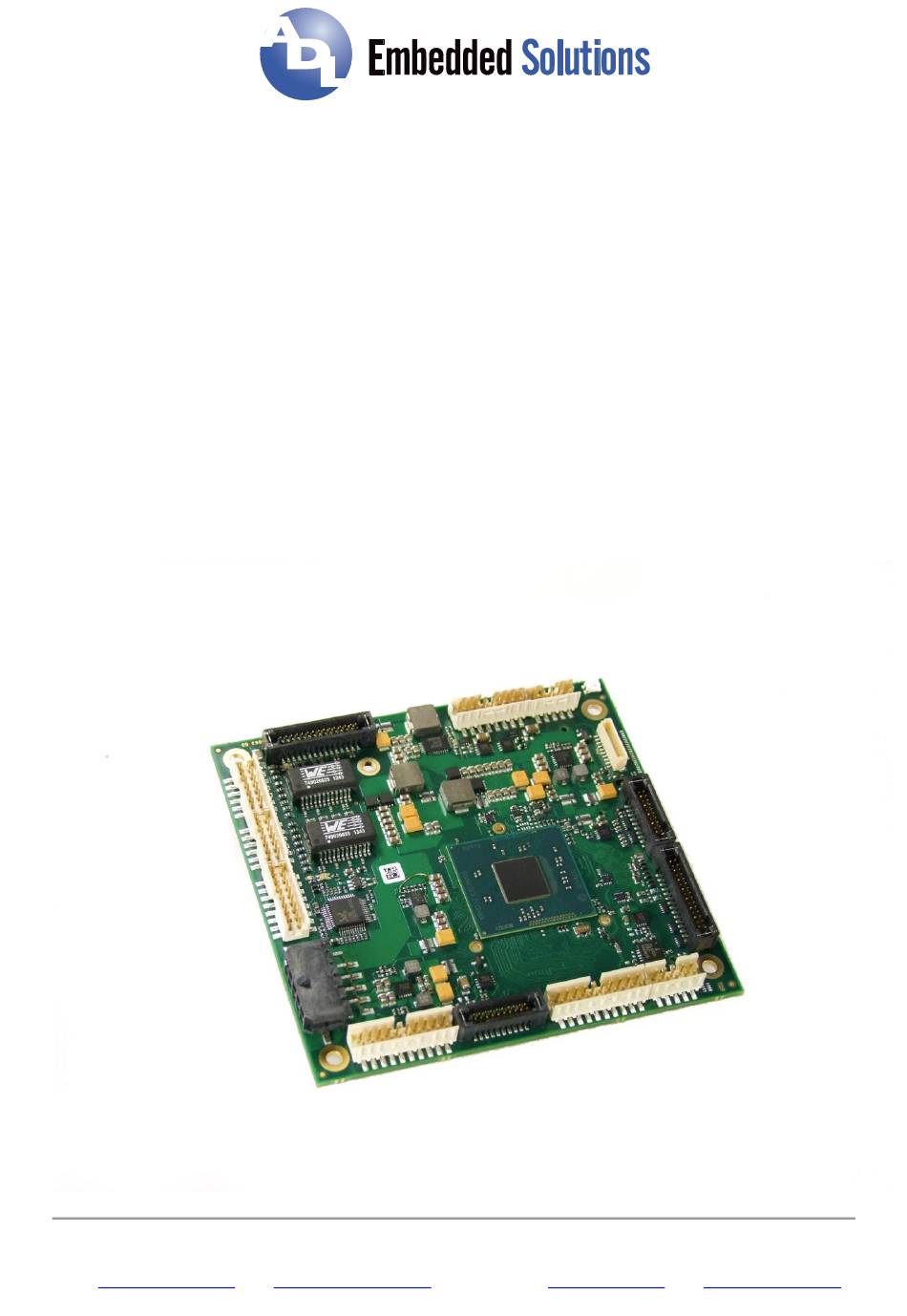

  • Page 1 Manual rev. 0.6 ADL Embedded Solutions GmbH, Eiserfelder Str. 316, ADL Embedded Solutions Inc. 4411 Morena Blvd., Suite 101 57080 Siegen, Germany San Diego, CA 92117-4345 P. +49 (0) 271 250 810 0 F. +49 (0) 271 250 810 20 P.

  • Page 3: Table Of Contents

    CPU Configuration ......................43 5.3.4 PPM Configuration ......................47 5.3.5 SATA Configuration ......................48 5.3.6 Miscellaneous Configuration ....................49 5.3.7 LPSS & SCC Configuration ....................50 5.3.8 Network Stack ........................52 5.3.9 Power Controller Options ....................53 ADL Embedded Solutions ADLE3800PC page 3...
  • Page 4 Environmental Conditions ......................80 Thermal Specifications ....................... 81 Annex: Post-Codes ..........................83 Annex: Resources ..........................84 IO Range ..............................84 Memory Range ............................84 Interrupt ..............................84 PCI Devices ............................85 SMB Devices ............................85 page 4 ADL Embedded Solutions ADLE3800PC...
  • Page 5 Important Notes Chapter: Document History ADL Embedded Solutions ADLE3800PC page 5...

  • Page 6: Document History

    3.8: corrected pinout All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law. page 6 ADL Embedded Solutions ADLE3800PC...

  • Page 7: Introduction

    Via our website at www.adl-usa.com/support or www.adl-europe.com/support 1.3 Warranty This product is warranted to be free of defects in workmanship and material. ADL Embedded Solutions' sole obligation under this warranty is to provide replacement parts or repair services at no charge, except shipping cost.

  • Page 8: Description Of Safety Symbols

    NOTICE is used to address practices not related to physical injury. OTICE 1.6 RoHS The PCB and all components are RoHS compliant (RoHS = Restriction of Hazardous Substances Directive). The soldering process is lead free. page 8 ADL Embedded Solutions ADLE3800PC...

  • Page 9: Overview

    2 Overview 2.1 Features The ADLE3800PC is a highly complex motherboard in the PC/104™ form factor, complying with the state-of-the-art "PCIe/104™" standard. It's based on a System-On-Chip (SoC) of Intel®'s Atom E3800 product family. Modern low voltage DDR3 technology provides top-notch memory performance, accomodating up to 8 GByte of RAM (DDR3L-1600) via SO-DIMM204.
  • Page 10 (by default with additional USB 2.0 interface or with mSATA) 16x GPIO Watchdog 5V and 12V supply voltage Size: 96 mm x 90 (115.5) mm For optimal driver compatibility we recommend the use of a Microsoft® OTICE Windows® 8 operating system. page 10 ADL Embedded Solutions ADLE3800PC...

  • Page 11: Specifications And Documents

     Realtek® Chip Description ALC885/889 Datasheet www.realtek.com.tw  Chrontel® Chip Description Chrontel 7318C Datasheet www.chrontel.com  American Megatrends® Aptio™ Text Setup Environment (TSE) User Manual www.ami.com  American Megatrends® Aptio™ 4.x Status Codes www.ami.com ADL Embedded Solutions ADLE3800PC page 11...

  • Page 12: Connectors

    Chapter: Connectors Features 3 Connectors This section describes all the connectors found on the ADLE3800PC. For most interfaces, the cables must meet certain requirements. For OTICE instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply.

  • Page 13: Connector Map

    P1302 "System/SM-Bus" p. 15 P1303 "Monitoring Functions" p. 31 U600* "Memory" p. 16 P1100* "PCI/104-Express Bus" p. 19 P1101* "PCI-Express Mini Card with mSATA" p. 21 * not pictured (see bottom of the board) ADL Embedded Solutions ADLE3800PC page 13...

  • Page 14: Power Supply

    For this to work, PS_ON# must be connected to the power supply's PS_ON input. If PS_ON# is not otherwise connected, the ADLE3800PC can be damaged beyond repair if a thermal shutdown event occurs. In rare instances, if power is not shut down, the board will continue to heat up until failure occurs.

  • Page 15: System/Sm-Bus

    3.3V supply Rot / LED0 RED/LED 0 GREEN/LED1 green / LED1 Blau / LED2 BLUE/LED2 S3.3V standby supply 3.3V PS-ON PSON# S3.3V standby supply 3.3V Systembus clock SMB-CLK SMB-ALERT Systembus alert Systembus data SMB-DAT ground ADL Embedded Solutions ADLE3800PC page 15...

  • Page 16: Memory

    16 DQ16 DQ20 data 20 data 17 DQ17 DQ21 data 21 ground ground data strobe 2 - DQS2# data mask 2 data strobe 2 + DQS2 ground ground DQ22 data 22 page 16 ADL Embedded Solutions ADLE3800PC...
  • Page 17 45 data 41 DQ41 ground ground DQS5# data strobe 5 - data mask 5 DQM5 DQS5 data strobe 5 + ground ground data 42 DQ42 DQ46 data 46 data 43 DQ43 DQ47 data 47 ADL Embedded Solutions ADLE3800PC page 17...
  • Page 18 58 DQ58 DQ62 data 62 data 59 DQ59 DQ63 data 63 ground ground SPD address 0 EVENT# Event 3.3 volt supply 3.3V SMBus data SPD address 1 SMBus clock termination current termination current page 18 ADL Embedded Solutions ADLE3800PC...

  • Page 19: Pci/104-Express Bus

    5V standby supply reserved reserved reserved reserved CPU direction CPU_DIR PWRGOOD Powergood SMBus data SMBDAT reserved SMBus clock SMBCLK reserved SMBus alert SMBALERT 51 PSON# PS ON link reactivation PEWAKE# ST1-ERR# stacking error 1 ADL Embedded Solutions ADLE3800PC page 19...
  • Page 20 LPC DMA request LPC address/data 1 LPCAD1 LPCSIRQ# LPC serial IRQ ground ground LPC address/data 2 LPCAD2 LPCFRAME# LPC frame LPC address/data 3 LPCAD3 RTCBATT battery 3.3V ground ground 5V supply 5V supply 12V supply page 20 ADL Embedded Solutions ADLE3800PC...

  • Page 21: Pci-Express Mini Card With Msata

    Chapter: Connectors 3.6 PCI-Express Mini Card with mSATA As a soldering option, the ADLE3800PC can be equipped with PCI-Express Mini Card connector to interface with approved peripherals, such as Wi-FI and storage cards via miniPCIe. In addition the PCIe Mini Card connector supports storage modules via mSATA.

  • Page 22: Dvi/Hdmi/Vga

    Chapter: Connectors DVI/HDMI/VGA 3.7 DVI/HDMI/VGA The ADLE3800PC provides a DVI/HDMI/VGA interface which is realized as a 2x15pin header (TFM-115-02-S-D-WT, mating connector e.g. SFM-115-02-S-D-xx). For parallel use of DVI- and CRT signals a custom cable design will be OTICE required. Please ask your distributor for recommended products.

  • Page 23: Displayport

    Chapter: Connectors 3.8 DisplayPort The ADLE3800PC offers a DisplayPort interface which is realized as 2x10pin connector (TFM-110-02-S-D-WT, mating connector SFM-110-02-S-D-xx). This interface can also be operated in HDMI/DVI mode. To achieve this, pin 2 must be connected to 3.3V (e.g. pin 5).

  • Page 24: Usb 2.0

    USB+ data lane 3 ground ground ground ground USB+ data lane 5 USB5 USB6 USB+ data lane 6 USB- data lane 5 USB5# USB6# USB- data lane 6 5V for USB5 USB5VCC USB6VCC 5V for USB6 page 24 ADL Embedded Solutions ADLE3800PC...

  • Page 25: Usb 3.0

    USB x data - USB3-x.D- ground ground reserved USB x transmit + SSTXx+ reserved USB x transmit - SSTXx- ground ground reserved USB x receive + SSRX+ reserved USB x receive - SSRX- reserved power supply reserved ADL Embedded Solutions ADLE3800PC page 25...

  • Page 26: Lan

    LAN1# LAN0# LAN channel 0 minus LAN channel 3 plus LAN3 LAN2 LAN channel 2 plus LAN channel 3 minus LAN3# LAN2# LAN channel 2 minus LAN speed 100Mbit SPEED100 3.3V 3.3 volt supply page 26 ADL Embedded Solutions ADLE3800PC...

  • Page 27: Audio

    Chapter: Connectors 3.12 Audio The ADLE3800PC's audio functions are provided via a 2x8pin connector (FCI 98424-G52-16LF, mating connector e.g. FCI 90311-016LF). This interface provides eight output channels for full 7.1 sound output. Two microphone inputs and two AUX inputs are also available.

  • Page 28: Sata Interfaces

    SATA Interfaces 3.13 SATA Interfaces The ADLE3800PC provides two SATA interfaces allowing transfer rates of up to 3 Gbit per second. These interfaces are made available via two 7 pin connectors. The required settings are made in the BIOS setup.

  • Page 29: Com1 And Com2

    The serial interfaces COM1 and COM2 are provided via a 2x5pin connector (FCI 98424-G52-10LF, mating connector e.g. FCI 90311-010LF). Description Name Name Description reserved reserved receive data request to send transmit data clear to send reserved reserved ground SVCC 5V standby supply ADL Embedded Solutions ADLE3800PC page 29...

  • Page 30: Gpio

    GP Input/Output A04 GPIOA.4 GPIOB.4 GP Input/Output B04 GP Input/Output A05 GPIOA.5 GPIOB.5 GP Input/Output B05 GP Input/Output A06 GPIOA.6 GPIOB.6 GP Input/Output B06 GP Input/Output A07 GPIOA.7 GPIOB.7 GP Input/Output B07 3.3V supply 3.3V ground page 30 ADL Embedded Solutions ADLE3800PC...

  • Page 31: Monitoring Functions

    (e. g. temperature sensor), are accessible via an 10 pin connector (JST BM10B-SRSS-TB, mating connector: SHR-10V-S(-B)). Name Description 3.3V 3.3V supply CS-SMB-CLK SMBus clock CS-SMB-DAT SMBus data ground 5V supply FANPWM FAN control TACH FAN monitoring reserved reserved reserved ADL Embedded Solutions ADLE3800PC page 31...

  • Page 32: State Leds

    Chapter: State LEDs HD LED 4 State LEDs 4.1 HD LED Harddisk activity is signalled by a dedicated LED. page 32 ADL Embedded Solutions ADLE3800PC...

  • Page 33: Rgb Led

    RGB LED Chapter: State LEDs 4.2 RGB LED The ADLE3800PC has an RGB LED, which can signal status messages by using different colors and flash intervals. Status Codes RGB LED: Color Interval Meaning solid Invalid system state White once Powerfail...

  • Page 34: Lan Activity Led

    Chapter: State LEDs LAN Activity LED 4.3 LAN Activity LED The ADLE3800PC has two unicolor LEDs, which signal LAN activity of the current LAN port. LAN link activity: Color Interval Meaning none solid no LAN activity green flashing LAN active...

  • Page 35: Lan Speed Led

    Chapter: State LEDs 4.4 LAN Speed LED Two bicolor LEDs show the links speed of the current LAN port. LAN speed: Color Interval Meaning none solid 10 Mbit/s orange solid 100 Mbit/s green solid 1000 Mbit/s ADL Embedded Solutions ADLE3800PC page 35...

  • Page 36: Bios Settings

    They do not represent the recommended settings or the default settings. Determination of the appropriate settings is dependent upon the particular application scenario in which the board is used. page 36 ADL Embedded Solutions ADLE3800PC...

  • Page 37: Main

    Options: none  BayTrail SoC Options: none  Total Memory Options: none  System Date Options: The system date can be adjusted here.  System Time Options: The system time can be adjusted here. ADL Embedded Solutions ADLE3800PC page 37...

  • Page 38: Advanced

    Sub menu: see "LPSS & SCC Configuration" (page 50)  Network Stack Sub menu: see "Network Stack" (page 52)  Power Controller Options Sub menu: see "Power Controller Options" (page 53)  CSM Configuration Sub menu: see "CSM Configuration" (page 55) page 38 ADL Embedded Solutions ADLE3800PC...
  • Page 39 Advanced Chapter: BIOS Settings  SDIO Configuration Sub menu: see "SDIO Configuration" (page 56)  USB Configuration Sub menu: see "USB Configuration" (page 57)  Security Configuration Sub menu: see "Security Configuration" (page 58) ADL Embedded Solutions ADLE3800PC page 39...

  • Page 40: Acpi Settings

     Enable ACPI Auto Configuration Options: Enabled / Disabled  Enable Hibernation Options: Enabled / Disabled  ACPI Sleep State Options: Suspend Disabled / S1 (CPU Stop Clock)  Lock Legacy Resources Options: Enabled / Disabled page 40 ADL Embedded Solutions ADLE3800PC...

  • Page 41: H/W Monitor

     12V Options: none  AUX FAN Speed Options: none  VBATT Options: none  FAN 1 Options: none  FAN 2 Options: none  FAN 3 Options: none  MB Temp Options: none ADL Embedded Solutions ADLE3800PC page 41...
  • Page 42 Chapter: BIOS Settings Advanced  Memory Temp Options: none  PwrCtrlTemp Options: none  PwrCtrlVCC Options: none page 42 ADL Embedded Solutions ADLE3800PC...

  • Page 43: Cpu Configuration

     Hardware Prefetcher Options: Disabled / Enabled  Adjacent Cache Line Prefetch Options: Disabled / Enabled  Intel Virtualization Technology Options: Enabled / Disabled  Power Technology Options: Disable / Energy Efficient / Custom ADL Embedded Solutions ADLE3800PC page 43...
  • Page 44  P-STATE Coordination Options: HW_ALL / SW_ALL / SW_ANY  C6 report Options: Disabled / Enabled  Package C State limit Options: C0 / C1 / C3 / C6 / C7 / No Limit page 44 ADL Embedded Solutions ADLE3800PC...
  • Page 45  Intel HT Technology Options: none  Intel VT-x Technology Options: none  L1 Data Cache Options: none  L1 Code Cache Options: none  L2 Cache Options: none  L3 Cache Options: none ADL Embedded Solutions ADLE3800PC page 45...
  • Page 46 │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  DTS Options: Enabled / Disabled page 46 ADL Embedded Solutions ADLE3800PC...

  • Page 47: Ppm Configuration

    Disabled / Enabled  CPU C state Report Options: Disabled / Enabled  Enhanced C state Options: Disabled / Enabled  Max CPU C-state Options: C7 / C6 / C1  S0ix Options: Disabled / Enabled ADL Embedded Solutions ADLE3800PC page 47...

  • Page 48: Sata Configuration

    Options: Port0 ODD / Port1 ODD / No ODD  SATA Mode Options: IDE Mode / AHCI Mode  Serial-ATA Port X Options: Enabled / Disabled  SATA PortX HotPlug Options: Enabled / Disabled page 48 ADL Embedded Solutions ADLE3800PC...

  • Page 49: Miscellaneous Configuration

    Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  High Precision Timer Options: Disabled / Enabled  Boot Timer with HPET Timer Options: Enabled / Disabled  PCI Express Dynamic Clock Gating Options: Enabled / Disabled ADL Embedded Solutions ADLE3800PC page 49...

  • Page 50: Lpss & Scc Configuration

    Disabled  DDR50 Support for SDCard Options: Enabled / Disabled  MIPI HSI Support Options: Enabled / Disabled  LPSS DMA #X Support Options: Enabled / Disabled  LPSS I2C #X Support Options: Enabled page 50 ADL Embedded Solutions ADLE3800PC...
  • Page 51 Advanced Chapter: BIOS Settings  LPSS HSUART #X Support Options: Enabled / Disabled ADL Embedded Solutions ADLE3800PC page 51...

  • Page 52: Network Stack

    Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  Network stack Options: Disabled / Enabled  IPv4 PXE Support Options: Disabled / Enabled  IPv6 PXE Support Options: Disabled / Enabled  PXE boot wait time Options: 0..5 page 52 ADL Embedded Solutions ADLE3800PC...

  • Page 53: Power Controller Options

     Temperature (Min/Max) Options: none  ext. USB-Port Voltage Options: Off in S3-5 / by SVCC  int. USB-Port Voltage Options: Off in S3-5 / by SVCC  WatchDogTimer Mode Options: Normal Mode / Compatibility Mode ADL Embedded Solutions ADLE3800PC page 53...
  • Page 54 Chapter: BIOS Settings Advanced  WDT OSBoot Timeout Options: Disabled / 45 Seconds ... 255 Seconds page 54 ADL Embedded Solutions ADLE3800PC...

  • Page 55: Csm Configuration

     Storage Options: Do not launch / UEFI only / Legacy only  Video Options: Do not launch / UEFI only / Legacy only  Other PCI devices Options: UEFI only / Legacy only ADL Embedded Solutions ADLE3800PC page 55...

  • Page 56: Sdio Configuration

    │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  SDIO Access Mode Options: Auto / DMA / PIO page 56 ADL Embedded Solutions ADLE3800PC...

  • Page 57: Usb Configuration

    5 sec / 10 sec / 20 sec  Device reset time-out Options: 10 sec / 20 sec / 30 sec / 40 sec  Device power-up delay Options: Auto / Manual  Device power-up delay in seconds Options: 1..40 ADL Embedded Solutions ADLE3800PC page 57...

  • Page 58: Security Configuration

     TXE Options: Enabled / Disabled  TXE HMRFPO Options: Enabled / Disabled  TXE Firmware Update Options: Enabled / Disabled  TXE EOP Message Options: Enabled / Disabled  TXE Unconfiguration Perform Options: none page 58 ADL Embedded Solutions ADLE3800PC...

  • Page 59: Chipset

    │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  North Bridge Sub menu: see "North Bridge" (page 60)  South Bridge Sub menu: see "South Bridge" (page 64) ADL Embedded Solutions ADLE3800PC page 59...

  • Page 60: North Bridge

     Graphics Power Management Control Sub menu: see "Graphics Power Management Control" (page 63)  Total Memory Options: none  Memory SlotX Options: none  Max TOLUD Options: Dynamic / 1GB / 1.25GB / .. / 3GB page 60 ADL Embedded Solutions ADLE3800PC...
  • Page 61 128M / 256M / MAX  Aperture Size Options: 128MB / 256MB / 512MB  DOP CG Options: Enabled / Disabled  GTT Size Options: 1MB / 2MB  IGD Thermal Options: Enabled / Disabled ADL Embedded Solutions ADLE3800PC page 61...
  • Page 62  ISP Enable/ Disable Options: Enabled / Disabled  ISP PCI Device Selection Options: Disabled / ISP PCI Device as B0D2F0 / ISP PCI Device as B0D3F0  Vcc_Vnn Config for Power state2 Options: Enabled / Disabled page 62 ADL Embedded Solutions ADLE3800PC...
  • Page 63 │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  RC6 (Render Standby) Options: Enabled / Disabled ADL Embedded Solutions ADLE3800PC page 63...

  • Page 64: South Bridge

     Restore AC Power Loss Options: Power Off / Power On / Last State  Onboard Gigabit LAN X Options: Enabled / Disabled  mPCIe select pin Options: none  mPCIe select pin Options: none page 64 ADL Embedded Solutions ADLE3800PC...
  • Page 65 Disabled / Enabled  Azalia Docking Support Enable Options: Disabled / Enabled  Azalia PME Enable Options: Disabled / Enabled  Azalia HDMI Codec Options: Disabled / Enabled  HDMI Port X Options: Disabled / Enabled ADL Embedded Solutions ADLE3800PC page 65...
  • Page 66  USB2 Link Power Management Options: Enabled / Disabled  USB 2.0(EHCI) Support Options: Disabled / Enabled  USB Per Port Control Options: Enabled / Disabled  USB Port x Options: Disabled / Enabled page 66 ADL Embedded Solutions ADLE3800PC...
  • Page 67 Options: 1...20  Reserved Memory Alignment Options: 0...31  Prefetchable Memory Options: 1...20  Prefetchable Memory Alignment Options: 0...31  Reserved I/O Options: 0 / 4 / 8 / 12 / 16 / 20 ADL Embedded Solutions ADLE3800PC page 67...

  • Page 68: Security

    │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘ Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  Secure Boot menu Sub menu: see "Secure Boot menu" (page 69) page 68 ADL Embedded Solutions ADLE3800PC...

  • Page 69: Secure Boot Menu

    Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  System Mode Options: none  Secure Boot Options: Disabled / Enabled  Secure Boot Mode Options: Standard / Custom  Key Management Sub menu: see "Key Management" (page 70) ADL Embedded Solutions ADLE3800PC page 69...
  • Page 70 Press [Enter]  Set new KEK Options: Press [Enter]  Append KEK Options: Press [Enter]  Delete DB Options: Press [Enter]  Set new DB Options: Press [Enter]  Append DB Options: Press [Enter] page 70 ADL Embedded Solutions ADLE3800PC...
  • Page 71 Press [Enter]  Set new DBT Options: Press [Enter]  Append DBT Options: Press [Enter]  Delete DBX Options: Press [Enter]  Set new DBX Options: Press [Enter]  Append DBX Options: Press [Enter] ADL Embedded Solutions ADLE3800PC page 71...

  • Page 72: Boot

    Disabled / Enabled  NetWork Stack Driver Support Options: Disabled / Enabled  Boot mode select Options: Legacy / UEFI / DUAL  Boot Option Priorities Options: Review or change the sequence of available boot devices page 72 ADL Embedded Solutions ADLE3800PC...

  • Page 73: Save & Exit

    Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.  Save Changes and Reset Options: Press [Enter]  Discard Changes and Reset Options: Press [Enter]  Restore Defaults Options: Press [Enter]  Reset System with ME disable ModeMEUD000 Options: Press [Enter] ADL Embedded Solutions ADLE3800PC page 73...

  • Page 74: Bios-Update

    BIOS file which was issued for the exact board and exact board revision that you wish to update. If you try to update the BIOS using the wrong file the board will not start up again. page 74 ADL Embedded Solutions ADLE3800PC...

  • Page 75: Mechanical Drawings

    PCB: Mounting Holes Chapter: Mechanical Drawings 6 Mechanical Drawings All dimensions are in mil (1 mil = 0,0254 mm) OTICE 6.1 PCB: Mounting Holes A true dimensioned drawing can be found in the PC/104 specification. 3575 ADL Embedded Solutions ADLE3800PC page 75...

  • Page 76: Pcb: Pin 1 Dimensions - Top

    Chapter: Mechanical Drawings PCB: Pin 1 Dimensions - Top 6.2 PCB: Pin 1 Dimensions - Top 3330 2845 1292 1133 1834 2845 3330 3486 3511 page 76 ADL Embedded Solutions ADLE3800PC...

  • Page 77: Pcb: Pin 1 Dimensions - Bottom

    PCB: Pin 1 Dimensions - Bottom Chapter: Mechanical Drawings 6.3 PCB: Pin 1 Dimensions - Bottom 3380 ADL Embedded Solutions ADLE3800PC page 77...

  • Page 78: Pcb: Heat Sink/Die Center

    Chapter: Mechanical Drawings PCB: Heat Sink/Die Center 6.4 PCB: Heat Sink/Die Center page 78 ADL Embedded Solutions ADLE3800PC...

  • Page 79: Heat Spreader: Chassis Mount

    Medium heat spreader: Blue and red holes  Full size heat spreader: Blue and green holes To determine which heat spreaders are available for the ADLE3800PC, please refer to the ADLE3800PC datasheet. Dimensions are in inch (1 in = 2.54cm; 1 mil = 0.0254 mm)

  • Page 80: Technical Data

    5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s , for packaged boards Shock and vibration figures pertain to the motherboard alone and do not OTICE include additional components such as heat sinks, memory modules, cables etc. page 80 ADL Embedded Solutions ADLE3800PC...

  • Page 81: Thermal Specifications

    In case the temperature exceeds 110°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided. The ADLE3800PC includes circuitry that will notify an intelligent power supply to shut down if the processor reaches a critical temperature. This is achieved by deasserting the (low-active) PS_ON# signal found on the SM-Bus connector.
  • Page 82 Annex: Post-Codes page 82 ADL Embedded Solutions ADLE3800PC...

  • Page 83: I Annex: Post-Codes

    (POST code card). The meaning of these codes is described in the document "Aptio™ 4.x Status Codes" by American Megatrends®, which can be downloaded from their website http://www.ami.com. The following additional OEM POST codes are generated: Code Description BIOS-API started PCA9535 started PWRCTRL-Firmware started ADL Embedded Solutions ADLE3800PC page 83...

  • Page 84: Annex: Resources

    If interrupts must exclusively be available on the ISA side, they have to be reserved through the BIOS setup. The exclusivity is not given and not possible on the PCI side. Address Function IRQ0 Timer IRQ1 IRQ2 (8) IRQ3 IRQ4 IRQ5 IRQ6 IRQ7 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 IRQ13 IRQ14 IRQ15 page 84 ADL Embedded Solutions ADLE3800PC...

  • Page 85: Pci Devices

    Address Function 10-11 Standard slave address 40-41 GPIO 70-73 POST code output 88-89 BIOS-defined slave address A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF BIOS internal B0-BF BIOS internal ADL Embedded Solutions ADLE3800PC page 85...
