Technical Concepts Autoflush Clamp Instructions

AutoFlush Clamp
®
for Urinals & Toilets
INSTRUCTIONS
Manufactured by:
T C • 1-800-551-5155
ECHNICAL ONCEPTS

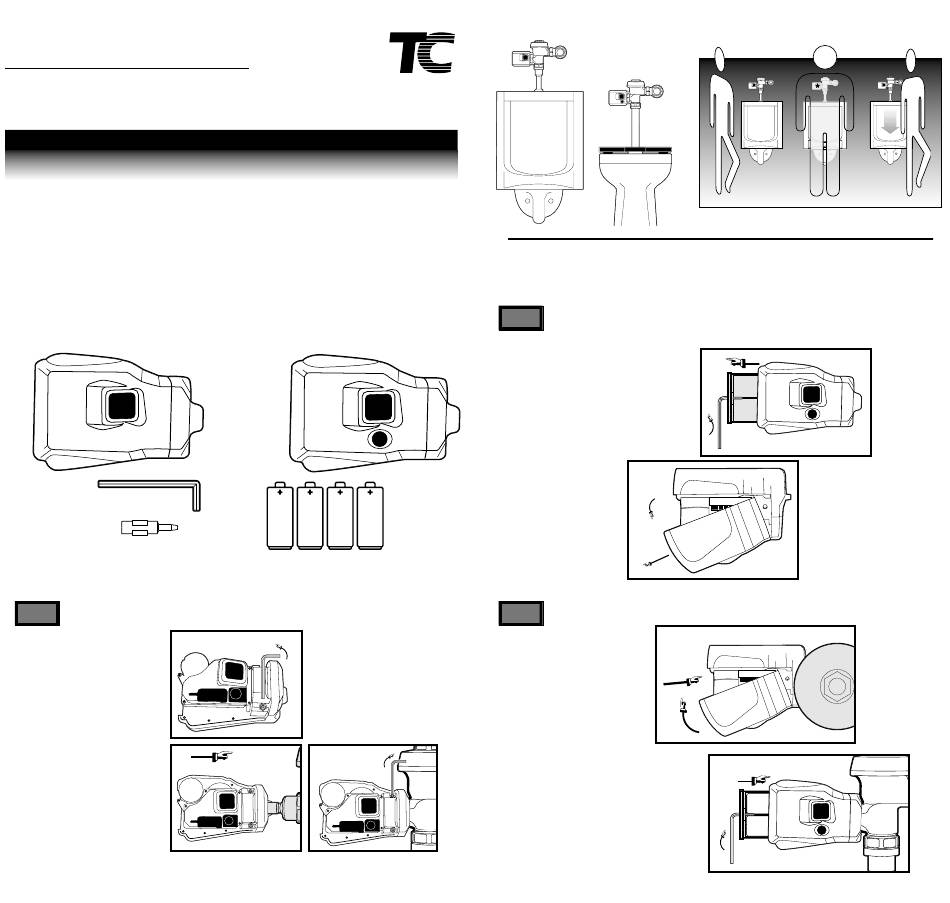

AUTOFLUSH ® COMPONENTS
AutoFlush® for Urinals
Allen Wrench
Sensor Adjustment
Tool
NOTE: Fits Sloan and Zurn flush handles. To fit other flush handles contact TC customer service at 800-551-5155.
Step 1.
(Continued)
1.3 Use the Allen wrench to
1.3
unscrew the two hex bolts at
the neck of the unit until a
few threads are still screwed
into the connecting bracket.
1.4 Slide the AutoFlush on to
®
the flush handle and secure
the mounting clamp over the
existing handle base.
NOTE: If the unit is on a high mount
toilet flush valve where the flush han-
dle is approximately 40" above the
floor, you should rotate the AutoFlush ®
down to ensure sensor is directed
at user.
Looks Clean - Is Clean
AutoFlush® for Toilets
4 "C" Alkaline Batteries
1.4
1.4
®
™
The AutoFlush ® sends out a continuous infrared beam that is reflected back by the presence of a person in front of the urinal
or toilet."Object Lock" technology differentiates between someone walking past the unit or actually using the fixture.
Step 1.
If flush handle is leaking, replace before installing AutoFlush
1.1 Using the supplied Allen
wrench, remove battery com-
partment.
1.2 Remove AutoFlush cover by
®
rotating the cover up at the
end over the battery com-
partment and slide out.
See illustration 1.2
Step 1.
(Continued)
1.5 Replace the AutoFlush cover.
®
See illustration 1.5
1.6 Install 4 "C" cell alkaline bat-
teries into the battery com-
partment noting the battery
position marks on the inside
of the compartment. Slide
the battery compartment into
the AutoFlush unit and
®
secure tray with Allen wrench.
The last three turns of the
wrench will activate the
AutoFlush ® unit.
-
+
1.2
1.5
1.6
- -
+ +
®
1.1
+
-
+
-
