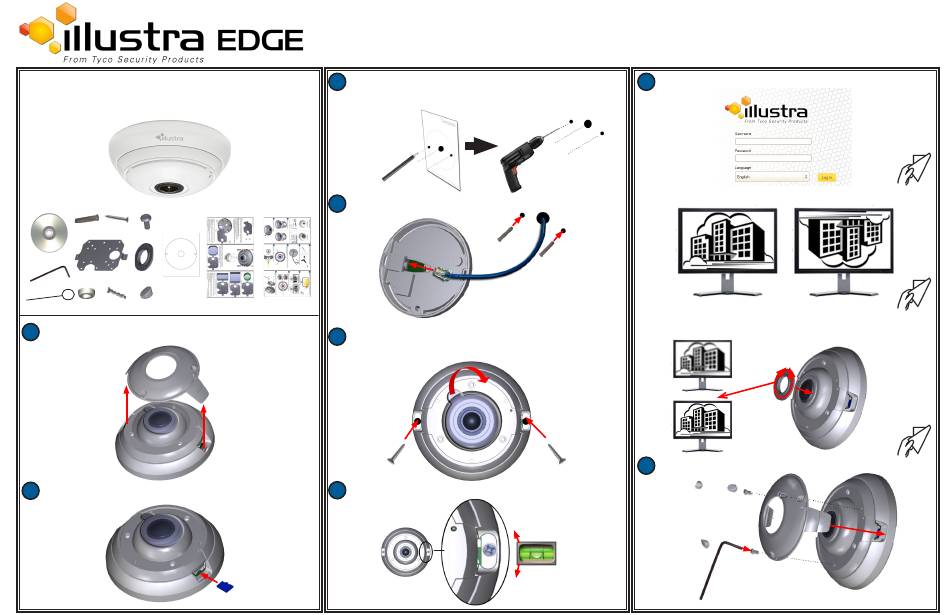

Illustra Edge IQS05FFACWCY Quick Installation Manual

What's in the box?
IQS05FFACWCY
2x 2x
3x
1x
1x 1x
1x
1x
1x 2x 2x 3x
1
Remove the camera cover
2
Insert MicroSD Card (if required)
Use the template to mark the holes then drill. If you are using the
3
Mounting Bracket, refer to 8200-1137-03 Attach the Mounting
Bracket Quick Installation Guide
4
Insert the rawl plugs and connect the Ethernet cable
1x 1x
5
Attach the camera using the supplied screws and remove the
plastic film from the lens
6
Adjust the horizontal alignment (if required)
7
NOTE:
For transient protection we recommend
that shielded cable is used for the
installation.
8
+ / - 5 °

Quick Installation Guide

Illustra Edge Fisheye Camera
Please turn over for Installation and Configuration procedures
Refer to Set Mounting Option for camera; wall or ceiling
Wall Ceiling
Refer to Manually Adjust Focus
Focus should only to be adjusted if required
+ / - 45°
Attach the camera cover, secure the screws and insert the plastic
covers
© 2015 Tyco Security Products. All Rights Reserved
8200-1137-02 A0
