Fortress Technologies Al13 HOME Installation Instructions Manual

Traditional adjustable panels with simplified stair brackets and posts
Hide thumbs Also See for Al13 HOME:

Advertisement

Quick Links

It is the responsibility of the installer to meet all code and safety requirements, and to obtain all required building permits.
The deck and railing installer should determine and implement appropriate installation techniques for each installation
situation. Fortress Railing Products and its distributors shall not be held liable for improper or unsafe installations.
13
Fortress Al HOME posts must always be secured to the deck framing. Fortress Al HOME posts should never be
attached to only the deck boards.
Read Instructions Completely Before Starting Installation
Note
When cutting Fortress railing, it is very important to complete the following at cut points:
• Remove all metal shavings from the cut area.
• File any sharp edges left by cutting. Thoroughly wipe and remove any filings, grime or dirt from the railing.
• Apply two coats of Fortress zinc based touch-up paint to the cut area. If touch up is at rail ends, allow paint to dry before
connecting bracket to post.
• Be sure to remove any metal shavings from the surface of deck, patio or balcony to prevent stains on the deck surface.
Torx Safety Tips
• Always use the lowest speed setting on drill.
• To reduce chance of bit breakage, start tightening with drill on low torque setting and work up until screw is secured.
• Tip: Pre-drill holes with 3/16" drill bit.
Required Materials
Miter saw with carbide fine tooth blade, reciprocating saw or portable band saw, T-25 driver bits, #2 phillips head screwdriver,
#2 phillips head bit, 3/16" drill bit, 5/16" nut driver bit, bit extender, tape measure, socket set, speed square, touch-up paint,
touch-up paint pen, center punch, level, framing square, rubber mallet, eye protection, and other personal protective equipment
13

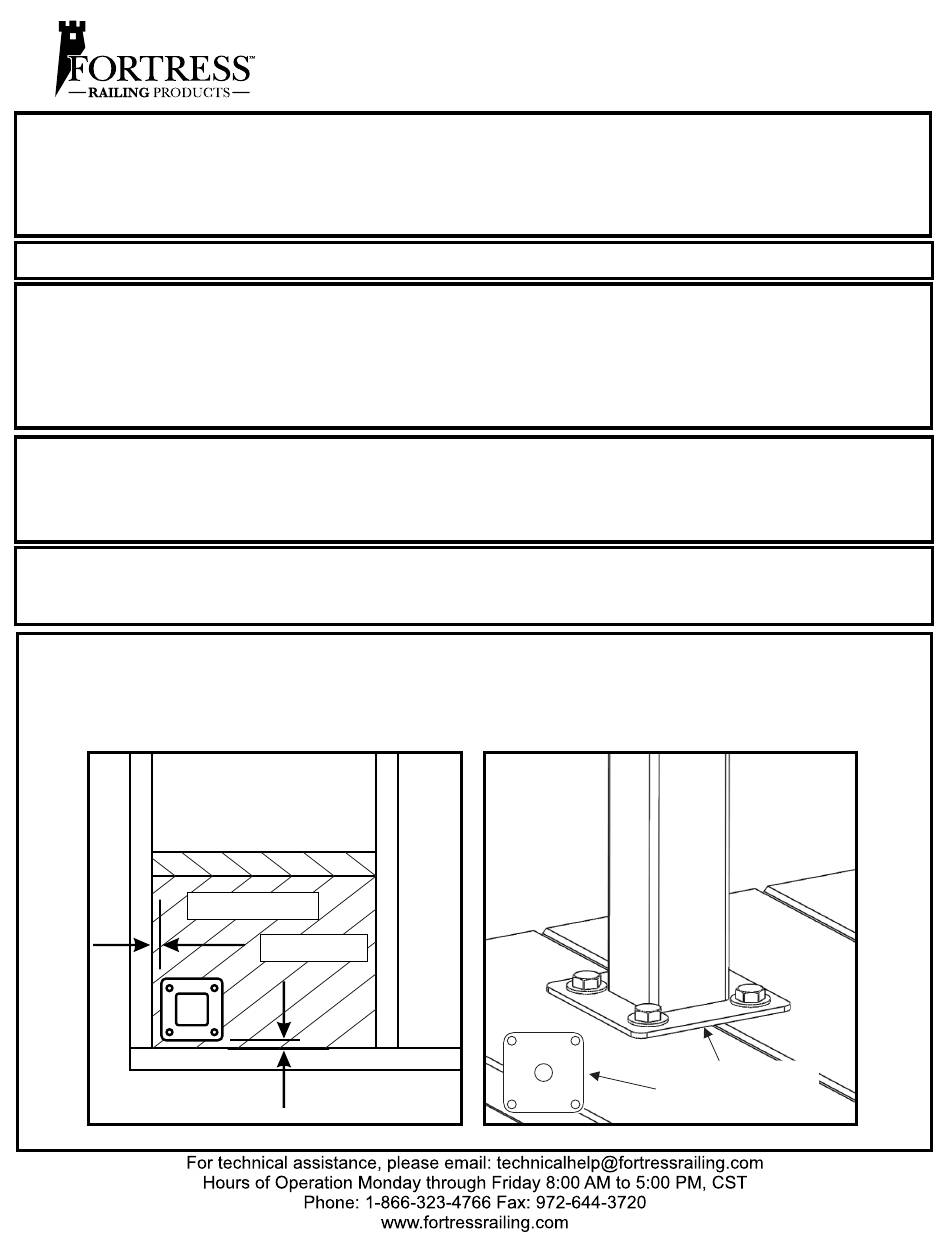

Mount Al HOME Posts*
• Wood blocking tied to deck frame must be installed and constructed with treated dimensional lumber with a minimum
thickness of 1-1/2".
13
• Position the edge of Al HOME base plate a minimum of ½" from the inside edge of rim joist.
13
• Mount Al HOME posts at appropriate points based on panel length.
13
• Attach Al HOME posts with 3/8" X 3-1/2" hex head galvanized bolts.
Added Blocking
13
*Reference Fortress Al HOME post mounting instructions
Installation Instructions for Fortress Al HOME
Traditional Adjustable Panels with Simplified
Stair Brackets and Al HOME Posts
1/2" minimum
13
13
13
Base plate barrier
must remain between
post and deck surface
REV 052118
1/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the Al13 HOME and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fortress Technologies Al13 HOME

  • Page 1 Installation Instructions for Fortress Al HOME Traditional Adjustable Panels with Simplified Stair Brackets and Al HOME Posts It is the responsibility of the installer to meet all code and safety requirements, and to obtain all required building permits. The deck and railing installer should determine and implement appropriate installation techniques for each installation situation.
  • Page 2 Post Options • It is recommended that a 2”x 51” or 3”x 51” post is used for all stair posts. • If an Accent Top Rail options is installed, the 3” posts must be used on all corners and end posts. •...
  • Page 3 Option One: Over The Post (OTP) With Accent Top Rail Post Cap Flat ATR Al HOME Simplified Stair Line Splice Stair Brackets Round ATR Stair Line Splice 2” Post 3” Post Post Cap Al HOME Simplified Stair Brackets Al HOME Simplified Stair Brackets Post Base...
  • Page 4 Option Two: Proud Post With or Without Accent Top Rail Post Cap Al HOME Simplified Stair Brackets Post Cap 3” Post Al HOME Simplifed Stair Brackets Al HOME Simplified Stair Brackets Post Base Cover 3” Post I-Support Al HOME Panels Al HOME Simplified Stair Angle 20°...
  • Page 5 OTP and Proud Post: Max Post Spacing • On a long straight 2 x 4, make 2 marks to measure the maximum distance for the inside face of the posts. • Place the 2 x 4 on the nose of the stair steps next to the posts. •...
  • Page 6 OTP & Proud Post: Bracket Spacing and Template • Using the template provided with the brackets, align the top hole from the bottom bracket on the template. • Align the edge of the template to the side of the post. Note that one side of the template is for a 2”...
  • Page 7: Top Bracket

    OTP & Proud Post: Bracket Spacing and Template • Using a 3/16” drill bit, drill a starter hole for the outer two screws. • Disassemble the brackets by removing the barrel and screw. • Attach the brackets to the post by center screw (step 1 below) hole first using the provided T-25 screws. Do not tighten down until the other screws are installed.
  • Page 8 OTP: Cutting 2” Line Post • After the top brackets have been mounted, the 2” line post will need to be cut down. • Draw a line above the top brackets. This will be your cut line. This line can be up to 3/8” above the brackets. •...
  • Page 9 OTP & Proud Post: Measuring the Length of the Panel • Reassemble the stair brackets. • Measure the distance from the inside edge of the bottom two brackets. • Check that the distance is the same between the top brackets. If the measurement is different, use shims to level the posts. •...
  • Page 10 OTP and Proud Post: Cut Down Panel to Correct Length • To insure both ends of the panel look the same, divide the bracket to bracket measurement by 2 to find half of the panel length. • From the center of the panel measure out half of the length each direction. •...
  • Page 11 OTP and Proud Post: Installing a Panel • Rake the panel near to the angle needed to install. • Drop the panel down into the brackets. • Push the bracket up so that the bottom is parallel with the rail. •...
  • Page 12 OTP and Proud Post: I-Support Installation • The I-Support should be located near the center of the panel directly under a baluster. • The I-Support can rotate to any angle 0° to 40°. The height of the I-Support can change from 3.3” up to 5.7”. •...
  • Page 13 OTP and Proud Post: Accent Top Rail Spacers • The accent top rail kit comes with 7 spacers. • The spacers should be equally spaced along the length of the rail, with no more then 14” spacing between them. • The end spacers should be placed as close to the end brackets as possible. •...
  • Page 14 OTP and Proud Post: Cutting the ATR to length • Measure the distance from the inside edge of the 2 posts. Measure the angle needed to make the ATR flush with the post. • Mark the cut lines on the ATR , and cut the ATR to length, file the edges, and paint using the same steps as used for cutting down a panel.
  • Page 15 OTP: Installing the Stair Post Splice • Test fit the Stair Line Post splice by locating its position above the 2” post and mark the edge locations. Measure the length of the mark to the next post and add .625” (5/8”) to the number. This will be your ATR length. •...
