Pyroclassic Fires Eco Flue Installation Instructions

PYROCLASSIC

INSTALLATION INSTRUCTIONS

FOR PYROCLASSIC FIRES
150MM STANDARD
ECO FLUE KIT 4.2M
COMPRISING:
1 Stainless Steel Flue Pipe 150 x 610mm
1 Stainless Steel Flue Pipe 150 x 1220mm
2 Stainless Steel Flue Pipe 150 x 1220mm
Painted Hi Therm Flues
1 Galvanised Outer Casing 250 x 1200mm
with Perforated Section
1 Anti-Blocking Shield 300 x 300mm
1 Stainless Steel Pyroclassic Cowl
1 Stainless Steel Flashing Cone
1 Stainless Steel Spreader
1 Packet of Screws
1 Ceiling Plate with Insulation Blanket
1 Galvanised Slip Joint 900mm

INSTALLATION

These instructions are to be read before installation
and used in conjunction with the heating appliance
manufacturer's installation instructions.
1.
Position heater on floor protector in accordance with the
correct clearances and manufacturers specifications.
2.
Mark the penetration centre in the ceiling and roof using
a plumb line.
3.
Cut a 300mm square hole in the ceiling and trim with
noggins to support outer casing.
4.
Cut a 250mm diameter hole in the roofing material and
trim back all combustible material within 25mm from its
opening,
5.
Fix anti-blocking shield on 4 tangential contact points
with the fixing tags down and the shield bottom edge
level with the ceiling.
6.
Fit outer liner with perforations into the blocking shield,
hold the bottom edge level with the ceiling.
7.
Fix appropriate flashing around liner to seal on the roof
material.
|

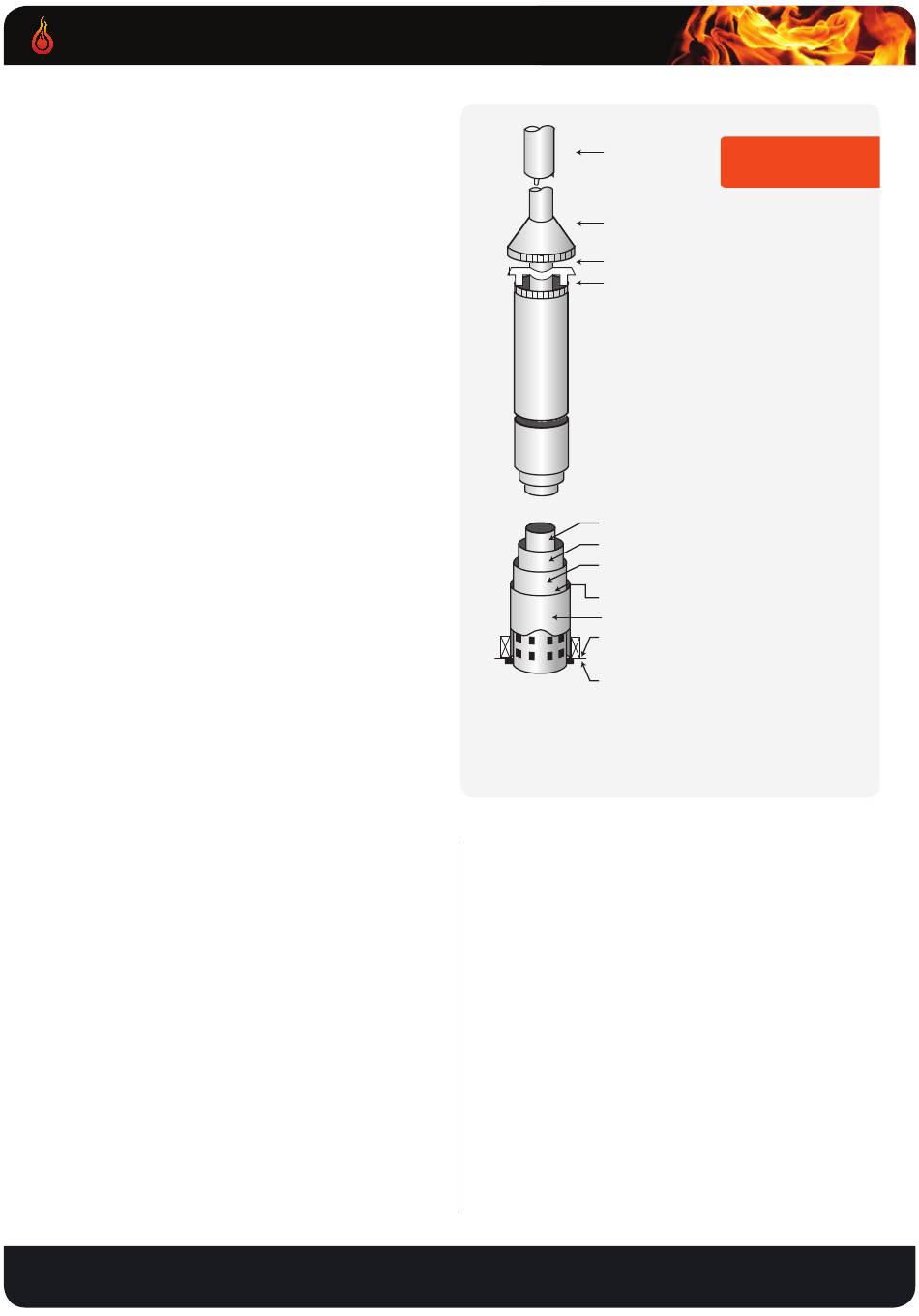

ECO FLUE
TECHNICAL SPECIFICATIONS
www.pyroclassic.co.nz
Visit
Cowl
Flashing Cone
25mm Air Gap
Top Spider
150mm Flue
200 DIA Inner Casing - 25mm up from ceiling
250 DIA Inner Casing with perforated section
- level with ceiling
Cooling Air Intake
Anti Blocking Shield 300 DIA x 300 High
345 x 345 x 30 Insulating Blanket
345 x 345 x 20.5 Ceiling Plate
Tested to Appendix F of AS/NZS2918:2001
Meaning that it can be installed on any appliance which
has been tested to the old or the new standard.
8.
Assemble the flue section ensuring that all seams are
inline.
9.
Fit inner liner, ensure that the spacer brackets rest on
the swage in the outer liner. Bottom edge should be
2Smm up from ceiling level.
10. Place ceiling plate on top of heater with edge up and lay
insulation blanket into position.
11. Fit flue with crimped and swaged end down into
position. Flue must be extended 200mm above outer
liner for correct fitting of flashing cone and cowl. Extra
sections of flue and liners may be added to achieve the
correct clearance above the roof.
12. Fit top spacer and tighten. Slide flashing cone over the
flue and fit the and cowl. Do not fasten cowl to facilitate
removal for cleaning.
13. Fix ceiling plate with screws provided. No spacers
required between ceiling tile and ceiling.
for more info
PYROCLASSIC
ECO FLUE KIT
