- Page 1 PRODUCT MANUAL BAT LTE SKU: IPD-BAT-LTE LTE Cellular & Internet Alarm Communicator E T H E R N E T...
- Page 2 Technical Support Information For Technical Support, call toll free: 866-896-2944 Monday - Friday 7a - 6:30p CST techsupport@ipdatatel.com ipdatatel.com www.alarmdealer.com setup.alarmdealer.com - Mobile Friendly ipDatatel, LLC 13110 Southwest Freeway Sugar Land, TX 77478 Toll Free: 866-896-2944 © 2017 ipDatatel All Rights Reserved...
-
Page 3: Table Of Contents
Table of Contents Quick Reference ......................4 BAT LTE ...........................5 • Installing the BAT LTE ...................5-6 • Wiring & Programming for popular panels ..........7 DSC Panel Wiring and Programming ..............8 DSC PC-Link Connection ...................9 • DSC Programming Charts ............... 10-11 Honeywell Vista Panel Wiring and Programming ........... 12 •... -
Page 4: Quick Reference
G / Rx Y / Tx QUICK REFERENCE - NEG POWER + POS BAT LTE G / Rx Y / Tx - NEG POWER + POS BAT LTE Programming on GE Network: G / Rx BAT LTE as Sole Communicator Dev~ice 0 Y / Tx Location 0... -
Page 5: Bat Lte

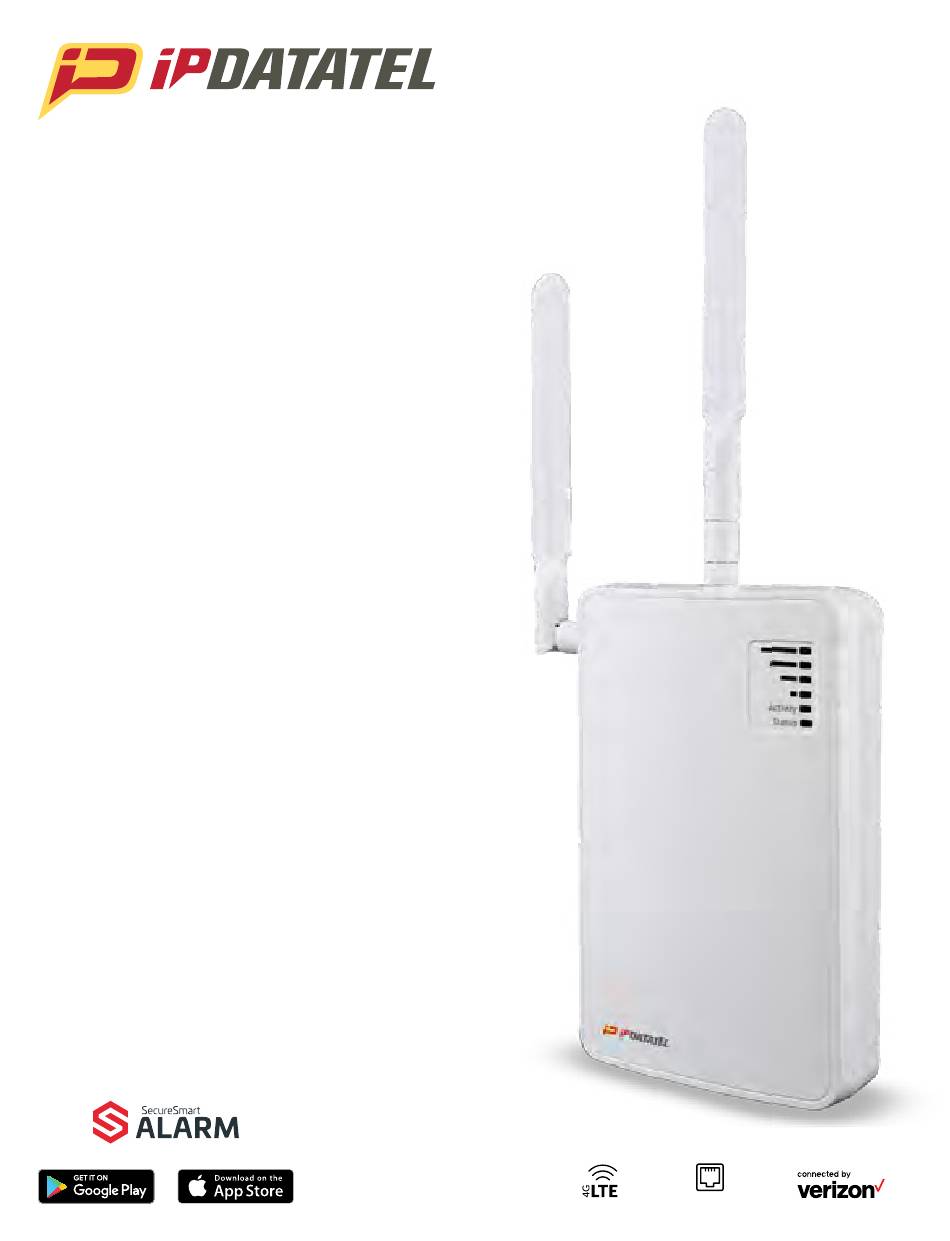

BAT LTE Universal Dual-Path Internet & Cellular LTE Alarm Communicator ipDatatel’s newest device, the BAT LTE, is a dual-path Internet & Cellular (LTE) alarm communicator offering redundant alarm communications with industry-leading remote service capabilities when connected via keybus to supported Honeywell, DSC and GE/Caddx panels. - Page 6 . Three or four lights indicate a strong signal. . It’s recommended to keep a distance of twelve inches (12”) between the communicator and the alarm panel. • If cellular signal strength is good, mount the plastic enclosure with a screw. •...
-
Page 7: Wiring & Programming For Popular Panels
All signals received by the unit will be recorded on the customer’s event log within the AlarmDealer.com portal. • Please reference ipDatatel’s AlarmDealer.com Dealer User Guide for detailed information. www.ipdatatel.com/resources/software-apps/ Wiring & Programming for Popular Panels • The following pages are organized by Alarm Panel type. Wiring and programming instructions are given for: . -
Page 8: Dsc Panel Wiring And Programming
DSC Panel Wiring and Programming DSC Control Panel RED BLK YEL GRN RING TIP BAT LTE G in / Rx Y in / Tx - NEG POWER + POS RING DSC Panel Programming • Recommended Keybus with Tip & Ring •... -
Page 9: Dsc Pc-Link Connection
DSC PC-Link connection PC-Link connection should only be used when the communicator is being installed as a back-up or uploading/downloading using DLS V. Remote downloader functionality requires ipDatatel’s uDownloader software. DS C PC-Link BAT LTE Z2 Out Z1 Out PLL-RD... -
Page 10: Dsc Programming Charts
PC-Link Programming: (Only needed if sending signals via PC-Link) DSC Programming for Communications - GSM Emulation: If GSM is used, it must be in dialer capture mode. BAT LTE as Fail BAT LTE as Dual BAT LTE as over w/Add’l Reporting w/Add’l Sole Code Summarization... - Page 11 Options to turn on/off opening/closing for telephone Enable Option Enable Option Enable Option 1, 1 (option 1),telephone 2 1, 5 2, 5 (option 2), and alternate communications (option 5) Options to turn on/off maintenance for telephone Enable Option Enable Option Enable Option 1, 1 (option 1), telephone 2 1, 5...
-
Page 12: Honeywell Vista Panel Wiring And Programming
Honeywell Vista Panel Wiring and Programming Vista Control Panel Data Data RING TIP BAT LTE G in / Rx Y in / Tx - NEG POWER + POS Honeywell Vista Panel Programming RING • Recommended Keybus with Tip & Ring •... -
Page 13: Honeywell Vista Programming Charts
Enables Contact ID Enter 1 ECP Bus Programming: ONLY NEEDED IF USING ECP TO SEND SIGNALS AND NOT TIP/RING Vista Programming for Communications - GSM Emulation: BAT LTE in use BAT LTE as Sole with another For Dual Code Summarization Communicator Communication Reporting... -
Page 14: Ge Panel Wiring And Programming
GE Panel Wiring and Programming GE Control Panel RING TIP POS NEG Data BAT LTE G in / Rx Y in / Tx - NEG POWER + POS RING GE Panel Programming • Recommended Keybus with Tip & Ring • (Keyswitch alternative programming see Page 17) TELCO Programming: General Concept Programming on GE NetworX:... -
Page 15: Generic Alarm Panel Wiring And Programming
Generic Alarm Panel Wiring and Programming Generic Control Panel RING RED BLK BAT LTE G in / Rx Y in / Tx - NEG POWER + POS RING Generic Alarm Panel Programming • Program the panel Phone Number into the panel •... - Page 16 Generic Keyswitch Wiring and Programming Generic Panel - Keyswitch Wiring PGM Z1 TIP RING BAT LTE Z2 Out Z1 Out G in / Rx Y in / Tx 2-10k - NEG Resisitor POWER + POS RING For basic keyswitch interactive services with the BAT LTE, the following alarm panel wiring is needed. •...
- Page 17 Generic Keyswitch Programming Keyswitch state programming examples for Ademco, Digital Security Controls, and GE NetworX for Keyswitch and panel state program output operations are given below. Most alarm panel manufacturers will have the capability to configure a zone as a keyswitch and generally have at least one on-board programmable output that can be configured to activate on a number of different control state conditions.
-
Page 18: Supported Panels Charts
Supported Panels Honeywell Panel Revision Digital Dialer Full Interactive GSM Emulator Vista-10P 2.6+ ✓ ✓ ✓ Vista-10PSIA 4.0+ ✓ ✓ ✓ Vista-128BP 3.0+ ✓ ✓ ✓ Vista-128BPE 1.0+ ✓ ✓ ✓ Vista-128FB 1.0+ ✓ ✓ ✓ Vista-128FBP 2.0+ ✓ ✓ ✓... -
Page 19: Specifications
GE NetworX Panel Revision Digital Dialer Full Interactive GSM Emulator NX-4V2 ✓ ✓ ✗ NX-6V2 ✓ ✓ ✗ NX-8V2 ✓ ✓ ✗ For non-supported panels: Bridge 12 VDC to “Y/TX” Terminal with any type of radial resistor with a value of 2.0k to 10k as a weak “pull up”. - Page 20 LLC. 13110 Southwest Freeway Sugar Land, Texas 77478 Main: 713.452.2700 Toll Free: 866.896.2944 www.ipdatatel.com * All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
